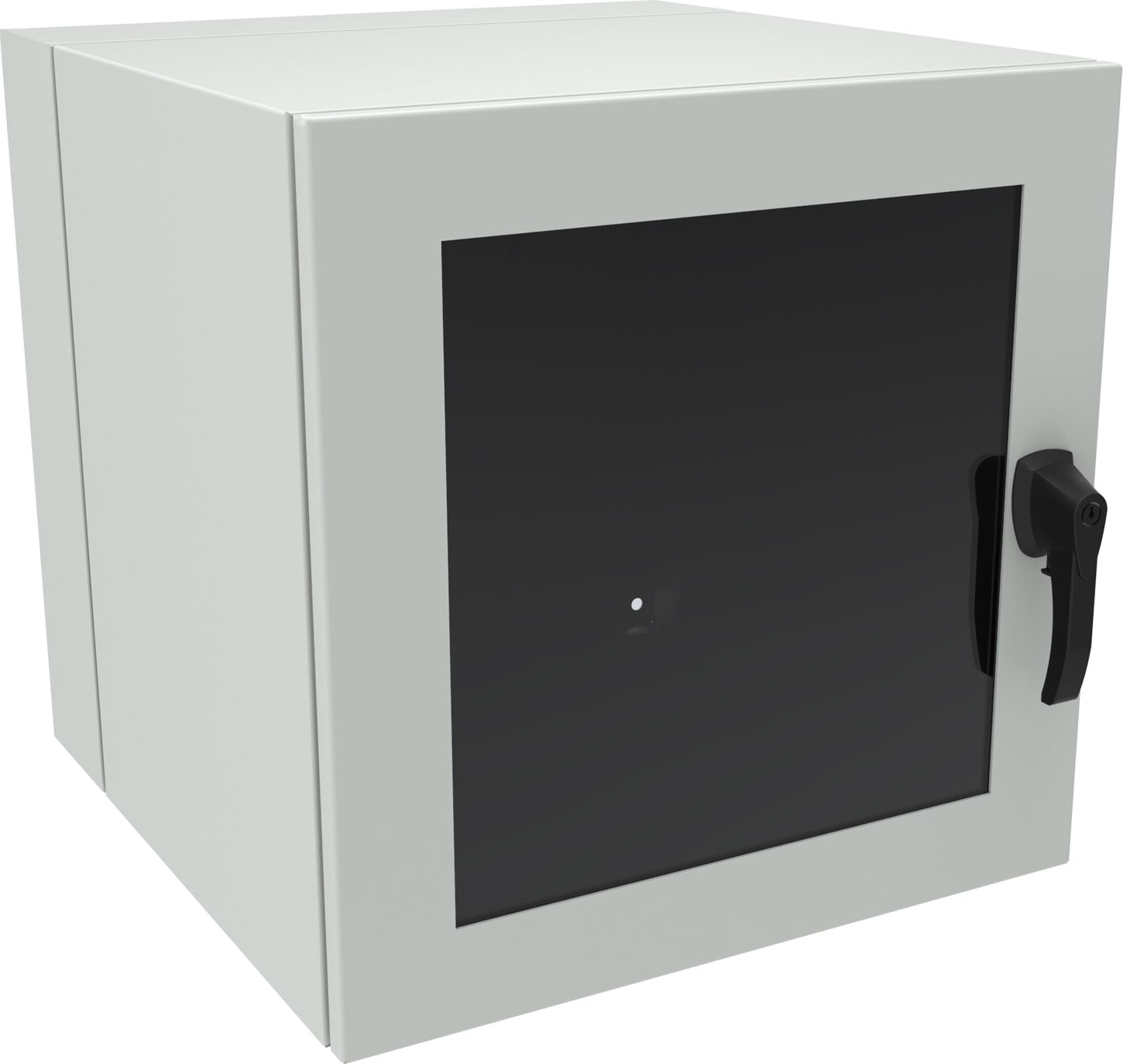

Hammond EN4DH162415WLG - Swing-Out Wall Mount Cabinet, Window Door

Name: Hammond EN4DH162415WLG - Swing-Out Wall Mount Cabinet, Window Door
Brand: Hammond
SKU: HammondEN4DH162415WLG
Price: 534.05 USD
Availability: InStock

0 reviews | UPC: 623980163185 | Model: Hammond EN4DH162415WLG

Compare

7U 15D NEMA SWINGOUT WINDOW

7U Racks unit
Load Capacity: 100 lb (45 kg)
Dual access via double hinge design opens 120 degrees for access to front and rear of equipment
Heavy wall mounting base for cable entry with collar stud provision for optional inner panel
Wall base can be mounted with optional external mounting feet
Interior latch releases center section for added security, no tools required
Solid and Window door are provided with combination key & padlock handle
Large window door view area
1 Pair of adjustable drilled and tapped L rails with cable pass through included
Bonding studs provided on door, body and wall base

View Product Details

List Price: $870.50

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits

for the Hammond EN4DH162415WLG

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Hammond EN4DH162415WLG - Swing-Out Wall Mount Cabinet, Window Door

Finish

RAL7035 light Gray
TAA Compliant
RoHS Compliant
Manufactured in North America

Applications

Designed for network access equipment using 19" mounting rails.
Dual access both front and rear of the equipment allows easy install and connection between equipment and to main cable route.
Provides outstanding protection against dust, oil and water with solid and plexi door version in NEMA type 4.

Standards

Plexi Viewing
- UL 508A 1, 3, 3R, 4, 12
- CSA Type 1, 3, 3R, 4, 12
Complies with
- NEMA type 3R,4 and 12
- IEC 60529 , IP54, IP66

Construction

Wall base, body and doors made form 14 guage steel.
Smooth continuous welded seams without knockouts, cutouts or holes.
Seamless poured-in place gasket for added protection in both indoor and outdoor locations.
Window door constructed with UV resistant polycarbonate material.
Plated L rails drilled and tapped 10/32 to EIA 19" standards.
Mounting hardware pack 25 for 19" rails.

Part Details
Units shown: inch.

Solid Door	Window Door	Overall Dimensions			Racks	Mounting Dimensions			Suggested
Part No.	Part No.	Height	Width	Depth	Units	Height	Width	Center Depth	Load Capacity
EN4DH162415LG	EN4DH162415WLG	16.00	24.00	15.01	7U	12.25	19.00	9.51	100 lb (45 kg)
EN4DH162424LG	EN4DH162424WLG	16.00	24.00	24.00	7U	12.25	19.00	18.50	100 lb (45 kg)
EN4DH202424LG	EN4DH202424WLG	20.00	24.00	24.00	10U	17.50	19.00	18.50	100 lb (45 kg)
-	EN4DH242415WLG	24.00	24.00	15.04	12U	21.00	19.00	9.51	120 lb (54 kg)
EN4DH242424LG	EN4DH242424WLG	24.00	24.00	24.00	12U	21.00	19.00	18.50	120 lb (54 kg)
-	EN4DH362415WLG	36.00	24.00	15.01	19U	33.25	19.00	9.51	140 lb (64 kg)
EN4DH362424LG	EN4DH362424WLG	36.00	24.00	24.00	19U	33.25	19.00	18.50	140 lb (64 kg)
EN4DH482424LG	EN4DH482424WLG	48.00	24.00	24.00	26U	45.50	19.00	18.50	180 lb (82 kg)

Tech Specs

Test Equipment General Attributes
Product Height	16.00 IN
Product Length	15.00 IN
Product Width	24.00 IN
Country of Origin	Canada
Shipping Height	16.00 IN
Shipping Length	15.00 IN
Shipping Width	24.00 IN
