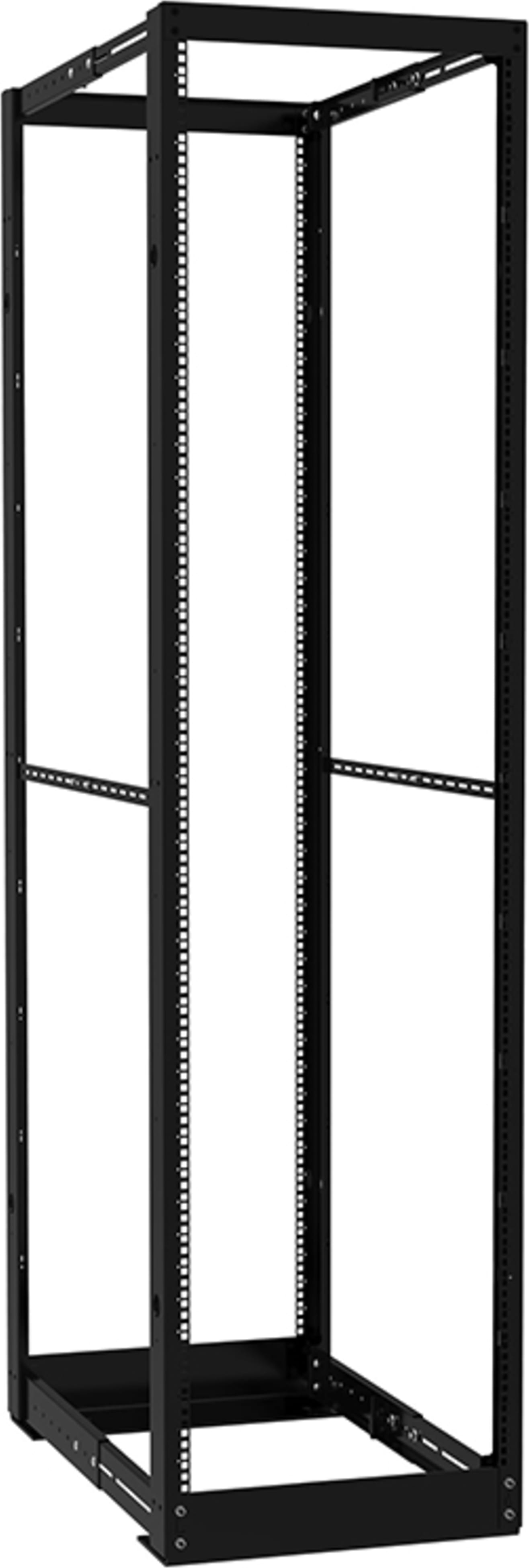

Hammond DC4R4442F 44U 4-Post 42" Depth Rack

Name: Hammond DC4R4442F 44U 4-Post 42" Depth Rack
Brand: Hammond
SKU: HammondDC4R4442F
Price: 659.63 USD
Availability: InStock

0 reviews | UPC: 623980046228 | Model: Hammond DC4R4442F

Compare

44U 4-POST 42 INCH DEPTH RACK

Cannot Ship Air

42-inch fixed depth
44U
Two (2) pairs of 19” mounting EIA-310-D compliant square-hole rails.
- Ships with a 50-pack of screws and cage nuts CAGKIT1032-50.
- Includes marked rack unit dividers to aid in equipment mounting.
For 44U height, add optional DC4RPR44 pair of rails for additional adjustable mounting depths.
Optional solid side panels gives you the look, feel and security of a welded cabinet.
Four (4) pairs of integrated 10-32 ground studs, at both the front and rear of the rack. Stud pairs are conveniently spaced 5/8” apart and located across from each other inside the rail channel. For added convenience, two (2) pairs are located near the top of the rack, while the others are near the bottom of the rack.
Rail depth L-bracket restrict the installer from over-extending the rack. This ensures the integrity of the rack.
Self-squaring design for a short assembly time.
One (1) set of two (2) horizontal cable manager bars. Additional cable manager bars available by ordering part number DC4RSHCM.
Finished in smooth black powder paint.
Knockdown design ships unassembled for easy handling and shipping protection.

View Product Details

List Price: $896.00

Your Price: $659.63

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Hammond DC4R4442F 44U 4-POST 42 INCH DEPTH RACK	Hammond DC4R44 44U 4-POST ADJ DPTH 24-36 RACK	Hammond DC4R24 24U 4-POST ADJ DPTH 24-36 RACK	Hammond DC4R4429F 44U 4-POST 29 INCH DEPTH RACK	Hammond DC4R4436F 44U 4-POST 36 INCH DEPTH RACK	Hammond DC4R4448 44U 4-POST ADJ DPTH 32-48 RACK
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hammond DC4R4442F 44U 4-Post Rack Kit

44U
42" fixed depth
4-Post Rack Kit
Open rack

The Hammond DC4R Open Rack series is one of the most economical solutions to house IT equipment in wiring closets or data centers. In situations where the wiring closet itself is under lock and key and accessed by a limited number of people, full cabinets having locking doors and side panels may not be required resulting in a significant cost savings.

Specifications

Constructed of 12-gauge steel.
Suggested static load capacity of 2,000 lbs (907 kg).
TAA compliant for GSA Schedule purchases.
RoHS and REACH Compliant.
Manufactured in North America.

Units shown: inch.

	Overall Dimensions			Rack	Mounting Dimensions			Optional Solid
Part No.	Height	Width	Depth	Units	Height	Width	Depth	Side Panel (single)
DC4R4429F	83.13	20.50	29.00	44U	77.00	19.00	29.00	DC4R4436SP
DC4R4436F	83.13	20.50	36.00	44U	77.00	19.00	36.00	DC4R4436SP
DC4R4442F	83.13	20.50	42.00	44U	77.00	19.00	42.00	DC4R4448SP

Tech Specs

Test Equipment General Attributes
Product Height	84.00 IN
Product Length	42.00 IN
Product Width	21.00 IN
Country of Origin	Canada
Shipping Height	84.00 IN
Shipping Length	42.00 IN
Shipping Width	21.00 IN
