Hammond CSB200-OB Commercial Enclosures

Name: Hammond CSB200-OB Commercial Enclosures
Brand: Hammond
SKU: HammondCSB200-OB
Price: 88.81 USD
Availability: InStock

0 reviews | UPC: 623980779461 | Model: Hammond CSB200-OB

Hammond CSB - Type 1 Mild Steel Splitter Box

Compare

Empty Splitter Box - 18 x 12 x 5 - Steel/Gray - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

The splitter boxes are designed for indoor distribution of up to 600 A (max) service using either 3 or 4 wires
Formed and spot welded from 14 or 16 gauge steel
Factory installed splitter blocks
Series of knockouts on each side
Padlocking hasp

View Product Details

List Price: $162.65

In Stock:

View Payment Options

Recommended for you

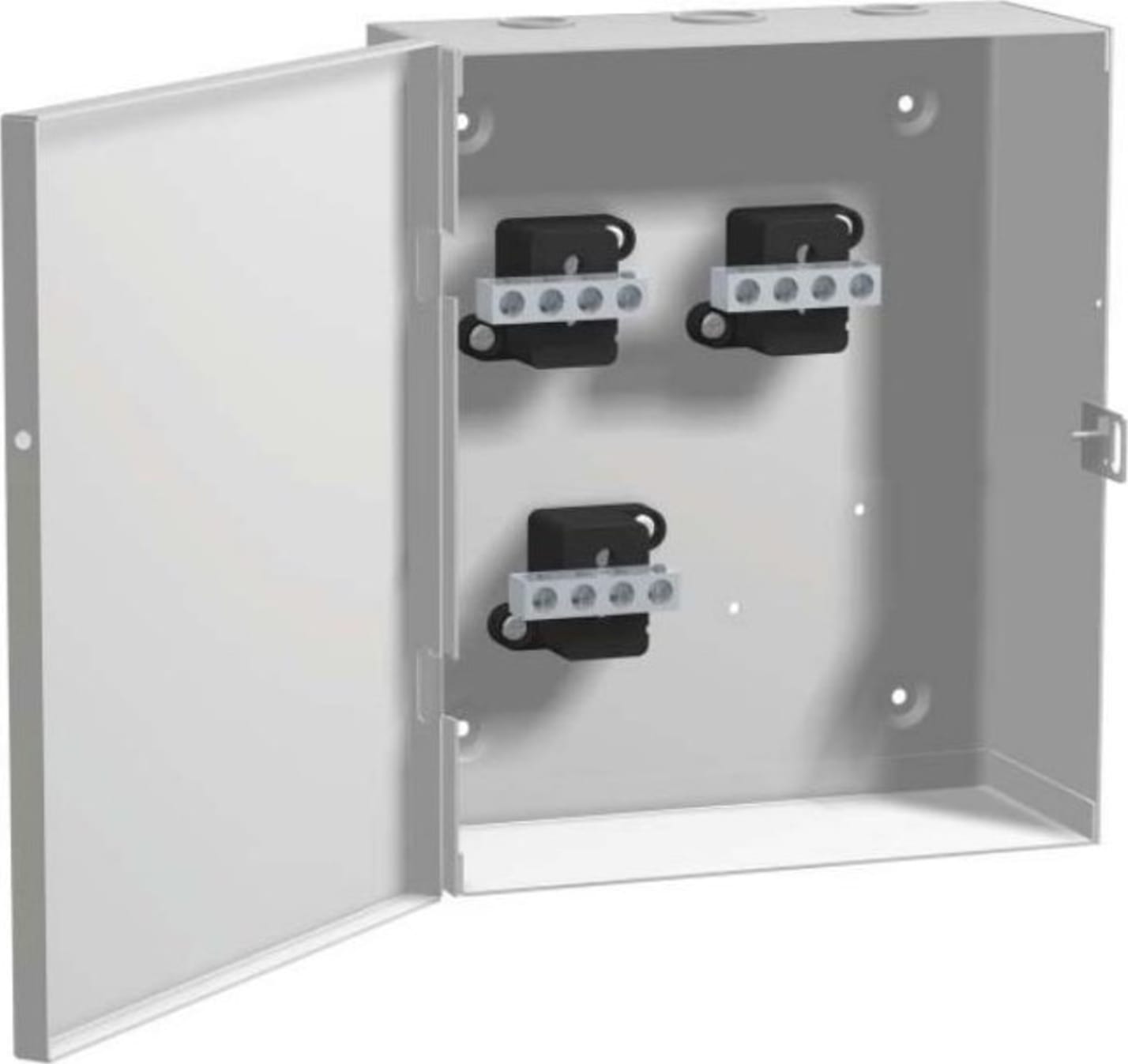

Hammond CSB200 Type 1 Mild Steel Splitter Box

Standards

CSA Type 1
Complies with:
- IEC 60529, IP20

Application

The splitter boxes are designed for indoor distribution of up to 600 A (max) service using either 3 or 4 wires

Construction

Formed and spot welded from 14 or 16 gauge steel
Factory installed splitter blocks
Series of knockouts on each side
Padlocking hasp

Finish

Enclosure and cover are finished in ANSI 61 gray powder coating

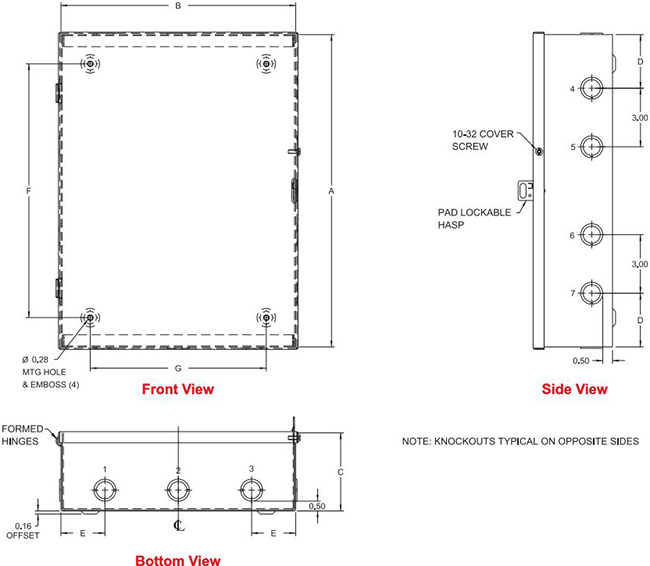

Part No.			CU/AL	Dimensions						Conduit Size (Location)
3 Wire	4 Wire	Less Blocks	Amps	A	B	C	D	E	F	1/2" - 3/4"	3/4" - 1"	2" - 2 1/2"
CSB73	CSB74	CSB70	70/70	12.00	10.00	4.00	2.75	2.25	9.00	1,3,7	2,4	-
CSB103	CSB104	CSB100	125/120	15.00	10.00	4.00	2.75	2.25	12.00	1,2,7	2,4	-
CSB203	CSB204	CSB200	225/225	18.00	12.00	5.00	3.00	3.50	15.00	1,3,7	4	1,3
CSB403	CSB404	CSB400	400/340	24.00	17.00	6.00	3.31	4.88	21.00	-	-	-
CSB603*	CSB604*	CSB600*	600/574	30.00	24.00	7.00	4.00	5.00	27.00	-	-	-

* 14 gauge steel

Tech Specs

General Attributes
Product Height	18.00 IN
Product Length	5.00 IN
Product Width	12.00 IN
Shipping Height	18.00 IN
Shipping Length	5.00 IN
Shipping Width	12.00 IN
Country of Origin	Canada
