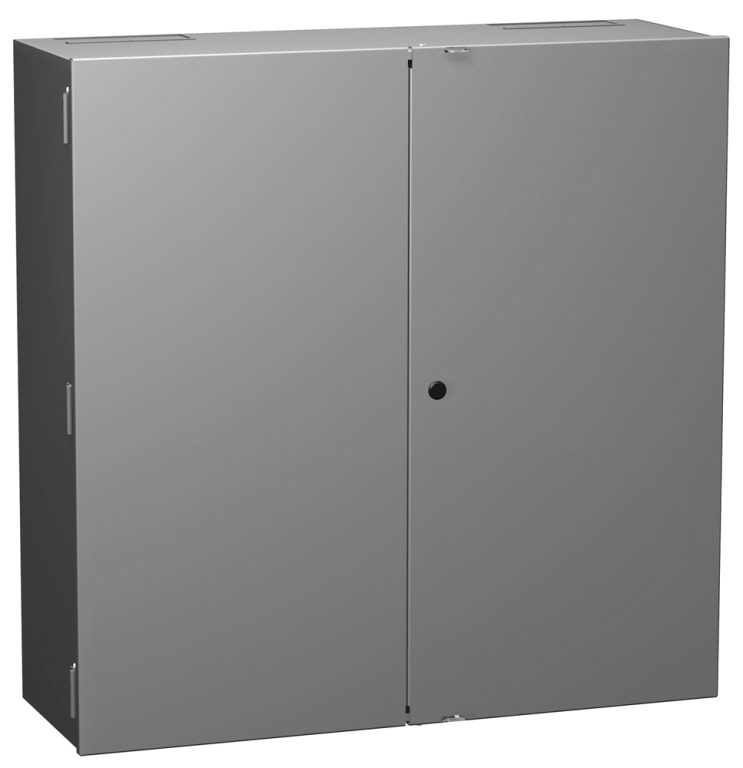

Type 1 Mild Steel Metering Cabinets - Hinge Door with Quarter Turn
Application
- Designed for indoor housing of metering transformers.
Construction
- Formed and spot welded from 14- or 16-gauge steel.
- Spot welded construction and formed edges.
- Removable inner panel.
- Single and Double Door versions
- Hinged covers - single door with hasp closure, double door with hasp and quarter turn closure.
- 2 cutouts in top of each cabinet with metering plates included (except 27x13x10")
Finish
- Enclosure and cover are finished in ANSI 61 gray inside and out.
- Inner panel is finished in white powder coating
| Part No. | Type of Door | Enclosure (H) | Enclosure (W) | Enclosure (D) |
| CMC202010 | Single | 20.00 | 20.00 | 10.00 |
| CMC271310* | Single | 27.00 | 13.00 | 10.00 |
| CMC302010 | Single | 30.00 | 20.00 | 10.00 |
| CMC303010 | Double | 30.00 | 30.00 | 10.00 |
| CMC363612 | Double | 36.00 | 36.00 | 12.00 |
| CMC484812 | Double | 48.00 | 48.00 | 12.00 |
