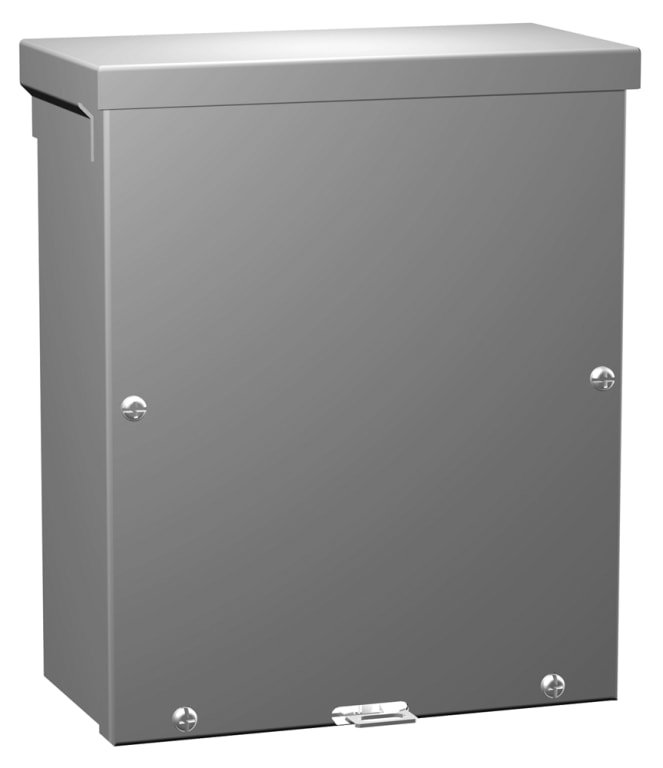

Type 3R Painted Galvanized Steel Junction Box; Screw Cover without Knockouts
Application
- Designed for use as a wiring/junction box.
- Provides protection against rain, sleet, snow and dripping water.
Construction
- Formed and spot welded from 16-gauge galvanized steel (24x24x6 is 14 gauge).
- Drip-shield top and seam-free sides, front and back.
- Slip-on removable cover fastened with plated steel screws.
- External mounting feet
- Oil resistant gaskets are permanently secured
- A bonding stud is provided on the door and a grounding stud is provided in the box.
Finish
- Enclosure and cover are finished in ANSI 61 gray powder coating.
| Part No. | Enclosure (H) | Enclosure (W) | Enclosure (D) |
| C3R664ESCNK | 6.00 | 6.00 | 4.00 |
| C3R884ESCNK | 8.00 | 8.00 | 4.00 |
| C3R886ESCNK | 8.00 | 8.00 | 6.00 |
| C3R10104ESCNK | 10.00 | 10.00 | 4.00 |
| C3R10106ESCNK | 10.00 | 10.00 | 6.00 |
| C3R12124ESCNK | 12.00 | 12.00 | 4.00 |
| C3R12126ESCNK | 12.00 | 12.00 | 6.00 |
| C3R16166ESCNK | 16.00 | 16.00 | 6.00 |
| C3R18186ESCNK | 18.00 | 18.00 | 6.00 |
| C3R24246ESCNK | 24.00 | 24.00 | 6.00 |
