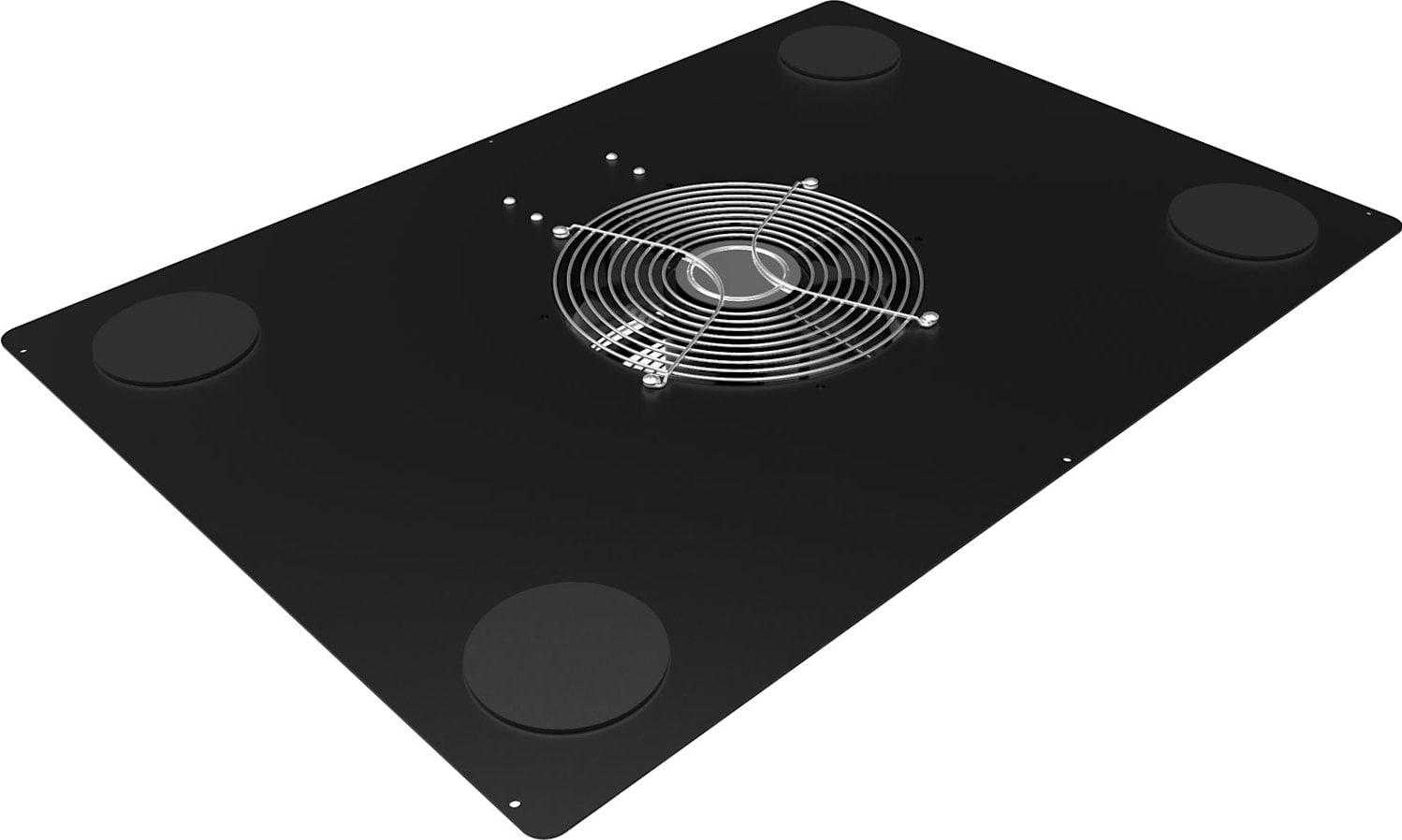

Hammond C2T1936F10BK1 10" Pre-Wired Fan, 19 X 36", Black

Name: Hammond C2T1936F10BK1 10" Pre-Wired Fan, 19 X 36", Black
Brand: Hammond
SKU: HammondC2T1936F10BK1
Price: 265.03 USD
Availability: InStock

0 reviews | UPC: 623980758787 | Model: Hammond C2T1936F10BK1

Compare

10 inch FAN 19 X 36 inch FAN TOP BLACK

10" Pre-Wired Fan, 19 X 36", Black
Use with C2, C2RR, C4, C4RR, H1 or CLC cabinet series.
- H1 requires H1TC Series for mounting.
14 gauge steel construction.
cURus Recognized to UL507 and CSA C22.2 No.113.

View Product Details

List Price: $360.00

Your Price: $265.03

Sign-in for GSA Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Hammond C2TF Series Fan Top Panel

C2T1936F10BK1 10" Pre-Wired Fan, 19 X 36", Black

Fan Tops for use with 4" Fans:

4" fan top panel - fans not included (see first table below).
4 or 6 opening depending on depth of rack.
Maximum flexibility - add fans OR leave holes open (for cable access) OR use covers (see below) OR any combination.

Pre-Wired Fan Tops:

Available with (4) 4" fans or (1) 10" fan (factory wired).
Long life, ball bearing, 4", 115 volt, 50/60 Hz. AC fan(s).
Available in three depths and two colors.
4.7" versions are available with or without adjustable thermostats.
10" versions are available with or without cable entry holes.

General Specifications
Part No.	Part No.	Description	Fan	Fan			Thermostat	Cable
Black	Light Gray	Description	Quantity	Size	CFM	dB	Included	Entry
C2T1923FBK1	C2T1923FLG1	Cutout for Fan or Cable Entry	4 (Opening Only)	4.70	-	-	No	Optional
C2T1931FBK1	C2T1931FLG1	Cutout for Fan or Cable Entry	6 (Opening Only)	4.70	-	-	No	Optional
C2T1936FBK1	C2T1936FLG1	Cutout for Fan or Cable Entry	6 (Opening Only)	4.70	-	-	No	Optional
C2T2423FBK1	C2T2423FLG1	Cutout for Fan or Cable Entry	4 (Opening Only)	4.70	-	-	No	Optional
C2T2431FBK1	C2T2431FLG1	Cutout for Fan or Cable Entry	6 (Opening Only)	4.70	-	-	No	Optional
C2T2436FBK1	C2T2436FLG1	Cutout for Fan or Cable Entry	6 (Opening Only)	4.70	-	-	No	Optional
C2T1923VFBK1	-	Fan Grill for Fan or Venting	4 (Fan Grill Only)	4.70	-	-	No	No
C2T1931VFBK1	-	Fan Grill for Fan or Venting	6 (Fan Grill Only)	4.70	-	-	No	No
C2T1936VFBK1	-	Fan Grill for Fan or Venting	6 (Fan Grill Only)	4.70	-	-	No	No
C2T2423VFBK1	C2T2423VFLG1	Fan Grill for Fan or Venting	4 (Fan Grill Only)	4.70	-	-	No	No
C2T2431VFBK1	C2T2431VFLG1	Fan Grill for Fan or Venting	4 (Fan Grill Only)	4.70	-	-	No	No
C2T2436VFBK1	C2T2436VFLG1	Fan Grill for Fan or Venting	6 (Fan Grill Only)	4.70	-	-	No	No
C2T1923F10BK1	C2T1923F10LG1	Pre-Wired Fan	1	10.00	550	60	No	No
C2T1931F10BK1	C2T1931F10LG1	Pre-Wired Fan	1	10.00	550	60	No	No
C2T1936F10BK1	C2T1936F10LG1	Pre-Wired Fan	1	10.00	550	60	No	No
C2T2431F10BK1	C2T2431F10LG1	Pre-Wired Fan	1	10.00	550	60	No	No
C2T2436F10BK1	C2T2436F10LG1	Pre-Wired Fan	1	10.00	550	60	No	No
C2T1923F10CEBK1	C2T1923F10CELG1	Pre-wired fan with cable entry grommets	1	10.00	550	60	No	Yes
C2T1931F10CEBK1	C2T1931F10CELG1	Pre-wired fan with cable entry grommets	1	10.00	550	60	No	Yes
C2T1936F10CEBK1	C2T1936F10CELG1	Pre-wired fan with cable entry grommets	1	10.00	550	60	No	Yes
C2T2423F10CEBK1	C2T2423F10CELG1	Pre-wired fan with cable entry grommets	1	10.00	550	60	No	Yes
C2T2431F10CEBK1	C2T2431F10CELG1	Pre-wired fan with cable entry grommets	1	10.00	550	60	No	Yes
C2T2436F10CEBK1	C2T2436F10CELG1	Pre-wired fan with cable entry grommets	1	10.00	550	60	No	Yes
C2T1923F4BK1	C2T1923F4LG1	Pre-wired fans	4	4.70	400	64	No	No
C2T1931F4BK1	C2T1931F4LG1	Pre-wired fans	4	4.70	400	64	No	No
C2T1936F4BK1	C2T1936F4LG1	Pre-wired fans	4	4.70	400	64	No	No
C2T2431F4BK1	C2T2431F4LG1	Pre-wired fans	4	4.70	400	64	No	No
C2T2436F4BK1	C2T2436F4LG1	Pre-wired fans	4	4.70	400	64	No	No
C2T1923F4TBK1	C2T1923F4TLG1	Pre-wired fans with thermostat	4	4.70	400	64	Yes	No
C2T1931F4TBK1	C2T1931F4TLG1	Pre-wired fans with thermostat	4	4.70	400	64	Yes	No
C2T1936F4TBK1	C2T1936F4TLG1	Pre-wired fans with thermostat	4	4.70	400	64	Yes	No
C2T2423F4TBK1	C2T2423F4TLG1	Pre-wired fans with thermostat	4	4.70	400	64	Yes	No
C2T2431F4TBK1	C2T2431F4TLG1	Pre-wired fans with thermostat	4	4.70	400	64	Yes	No
C2T2436F4TBK1	C2T2436F4TLG1	Pre-wired fans with thermostat	4	4.70	400	64	Yes	No

Test Equipment General Attributes
Product Height	4.00 IN
Product Length	29.00 IN
Product Width	20.00 IN
Country of Origin	Canada
Shipping Height	4.00 IN
Shipping Length	29.00 IN
Shipping Width	20.00 IN
