Hammond C2RR197831DBK1 45U C2 LAN/Data Rapid Rack, 19X78X31

Name: Hammond C2RR197831DBK1 45U C2 LAN/Data Rapid Rack, 19X78X31
Brand: Hammond
SKU: HammondC2RR197831DBK1
Price: 2373.50 USD
Availability: InStock

0 reviews | UPC: 623980325514 | Model: Hammond C2RR197831DBK1

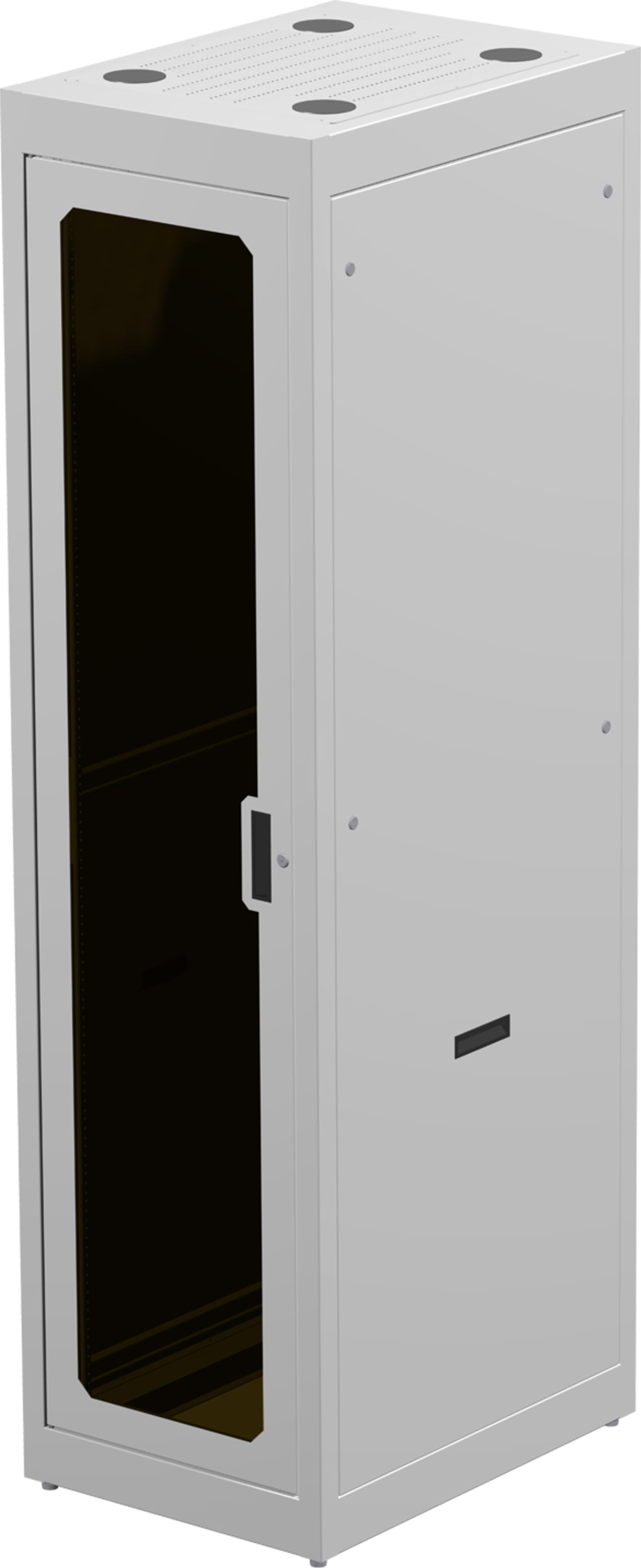

Hammond C2RR Series Equipment Storage Rack Cabinet

Compare

45U C2 DATA RAPID RACK19X78X31

Cannot Ship Air

45U C2 LAN/Data Rapid Rack, 19X78X31
Constructed in:
- 14-gauge steel (body)
- 16-gauge steel (doors and side panels)
- 10-gauge steel (tapped mounting rails)
- 12-gauge steel (square hole mounting rails)
Finished in a rugged, textured powder paint finish.
Tested to nearly double the suggested load rating of 1,500 lbs (680 kg).
TAA Compliant.
RoHS Compliant.
Manufactured in North America.

View Product Details

List Price: $3,224.00

In Stock:

View Payment Options

Recommended for you

Hammond C2RR Series Equipment Storage Rack Cabinet

C2RR197831DBK1 45U C2 LAN/Data Rapid Rack, 19X78X31

All configurations include:
- One (1) Welded C2 Cabinet Frame
- Two (2) Removable Side Panels (with 1/4 turn latches)
- Four (4) Leveling Feet
- Eight (8) Keys
- Starter pack of 10-32 Screws (and cage nuts when applicable).

C2RR "D" Series Specific Components include:
- Four (4) Infinitely Adjustable - Tapped 10-32 Combination Mounting Rails
- One (1) Window Front Locking Door
- One (1) Louvered Rear Locking Door
- One (1) Vented Top Panel with Four (4) 3.5" (89 mm) diameter cable access holes with covers

C2RR "D" Series LAN/Data Rapid Rack General Specifications
Part No.	Part No.	Overall Dimensions			Rack	Usable Mounting Dimensions
Black	RAL 7035 Light Gray	Height	Width	Depth	Units	Height	Width	Depth
C2RR197023DBK1	C2RR197023DLG1	77.31	23.00	23.63	40U	70.06	19.00	21.63
C2RR197031DBK1	C2RR197031DLG1	77.31	23.00	31.50	40U	70.06	19.00	29.50
C2RR197823DBK1	C2RR197823DLG1	86.06	23.00	23.63	45U	78.81	19.00	21.63
C2RR197831DBK1	C2RR197831DLG1	86.06	23.00	31.50	45U	78.81	19.00	29.50
Units shown: inch.

Tech Specs

Test Equipment General Attributes
Product Height	87.00 IN
Product Length	32.00 IN
Product Width	23.00 IN
Country of Origin	Canada
Shipping Height	87.00 IN
Shipping Length	32.00 IN
Shipping Width	23.00 IN
