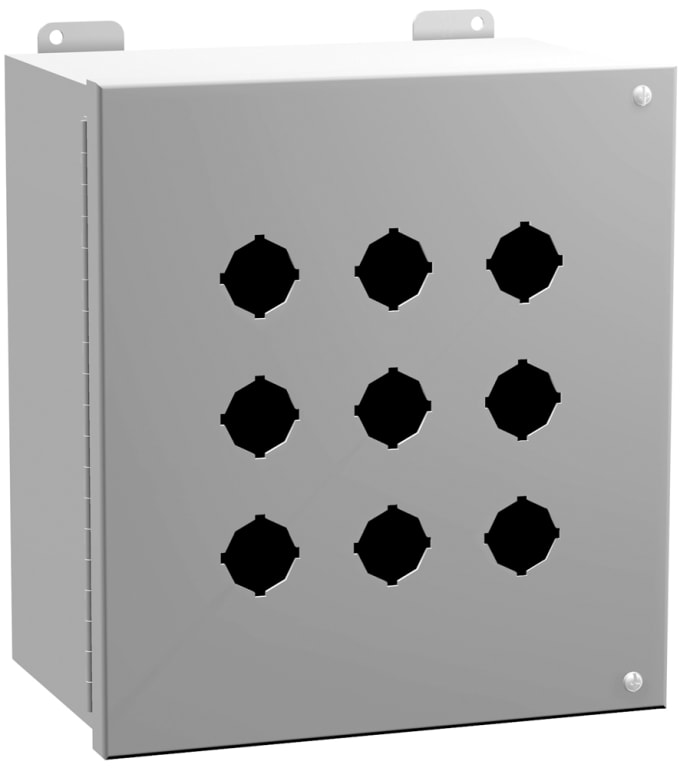

Type 12 Mild Steel Pushbutton Enclosures; Hinged Cover
Application
- Designed to accept standard heavy duty oil tight pushbuttons, switches, and pilot lights.
- Provides protection from dirt, dust, oil, and water.
Construction
- Formed 14-gauge steel.
- Smooth continuously welded seams.
- Welded brackets provide for enclosure mounting.
- Continuously hinged cover is secured with captive, plated steel screws which fasten into threaded sealed wells.
- Oil resistant gasket and adhesive.
- Weldnuts are provided for mounting inner panels.
- A removable 14-gauge inner panel is included.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- Cover and enclosure are phosphat¬¬ized and finished in ANSI 61 gray powder coating.
- Removable inner panel is finished in white powder coating.
