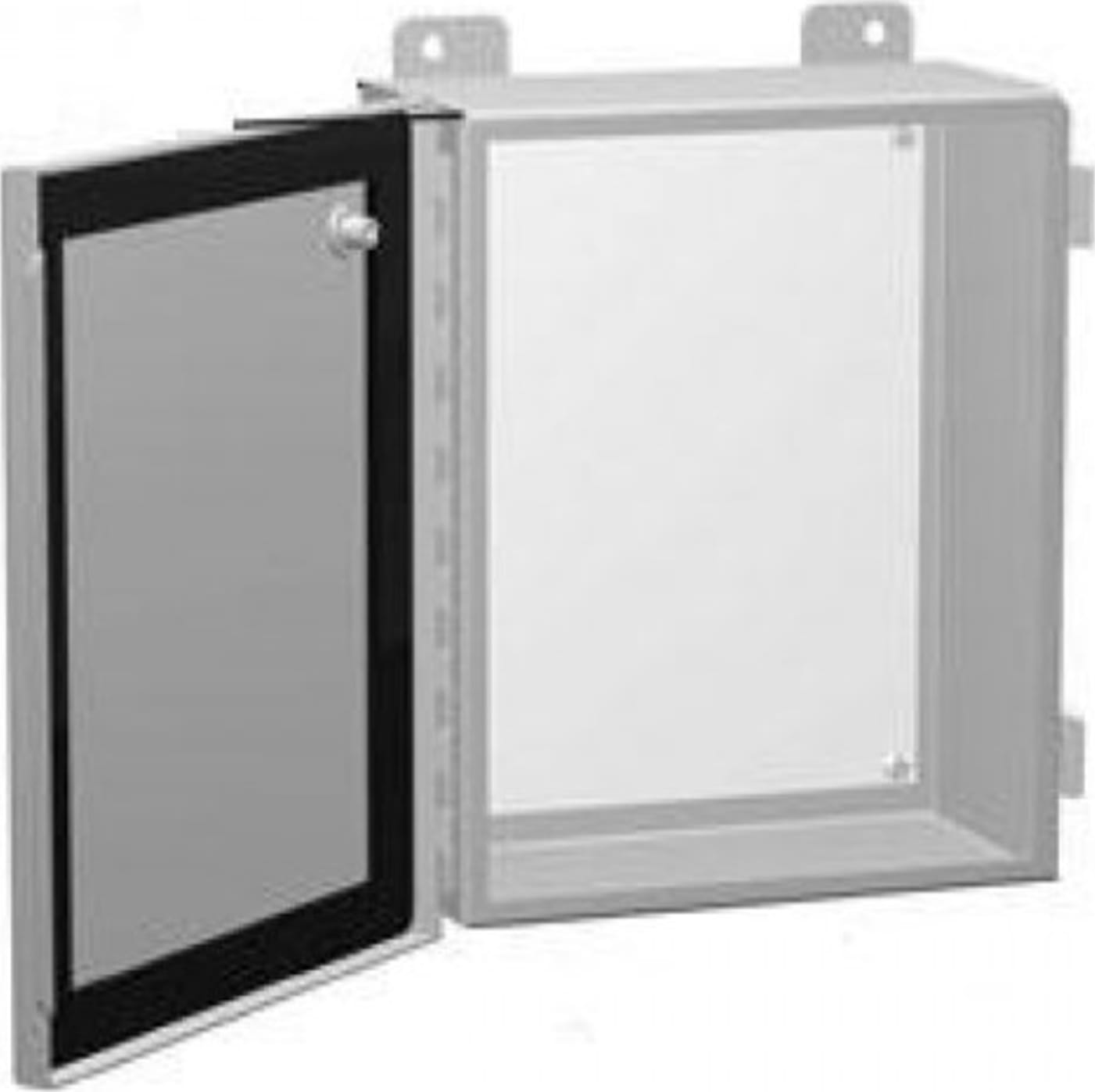

Hammond 1414PHMH6LP - Type 12 Mild Steel Junction Box, 1414 PH Series

Name: Hammond 1414PHMH6LP - Type 12 Mild Steel Junction Box, 1414 PH Series
Brand: Hammond
SKU: Hammond1414PHMH6LP
Price: 110.72 USD
Availability: InStock

0 reviews | UPC: 623980351902 | Model: Hammond 1414PHMH6LP

Hammond Type 12 Mild Steel Junction Box, 1414 PH Series

Compare

N12 J Box, Hinge Cover - 14 x 8 x 6 - Steel/Gray

Smooth, continuously welded seams without knockouts, cutouts or holes
Welded brackets provide for enclosure mounting
Continuously hinged cover is secured with stainless steel clamps and plated steel screws
Seamless poured-in place gasket
Models larger than 4" x 4" include a removable 14 gauge inner panel
Internal threaded weld studs are provided for mounting inner panels
A bonding stud is provided on the door and a grounding stud is provided in the enclosure

View Product Details

List Price: $176.94

Your Price: $110.72

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Hammond 1414PHMH6LP N12 J Box, Hinge Cover - 14 x 8 x 6 - Steel/Gray	Hammond 1414PHCLP N12 J Box, Hinge Cover - 6 x 4 x 3 - Steel/Gray	Hammond 1414PHGLP N12 J Box, Hinge Cover - 8 x 6 x 3.5 - Steel/Gray	Hammond 1414PHRGLP N12 J Box, Hinge Cover - 6 x 8 x 3.5 - Steel/Gray	Hammond 1414PHC4LP N12 J Box, Hinge Cover - 6 x 4 x 4 - Steel/Gray	Hammond 1414PHELP N12 J Box, Hinge Cover - 6 x 6 x 4 - Steel/Gray	Hammond 1414PHILP N12 J Box, Hinge Cover - 10 x 8 x 4 - Steel/Gray	Hammond 1414PHRILP N12 J Box, Hinge Cover - 8 x 10 x 4 - Steel/Gray	Hammond 1414PHKC4LP N12 J Box, Hinge Cover - 12 x 6 x 4 - Steel/Gray	Hammond 1414PHKLP N12 J Box, Hinge Cover - 12 x 10 x 5 - Steel/Gray	Hammond 1414PHRKLP N12 J Box, Hinge Cover - 10 x 12 x 5 - Steel/Gray	Hammond 1414PHG6LP N12 J Box, Hinge Cover - 8 x 6 x 6 - Steel/Gray	Hammond 1414PHI6LP N12 J Box, Hinge Cover - 10 x 8 x 6 - Steel/Gray	Hammond 1414PHJ6LP N12 J Box, Hinge Cover - 10 x 10 x 6 - Steel/Gray	Hammond 1414PHL6LP N12 J Box, Hinge Cover - 12 x 12 x 6 - Steel/Gray	Hammond 1414PHM6LP N12 J Box, Hinge Cover - 14 x 12 x 6 - Steel/Gray	Hammond 1414PHRM6LP N12 J Box, Hinge Cover - 12 x 14 x 6 - Steel/Gray	Hammond 1414PHN6LP N12 J Box, Hinge Cover - 16 x 10 x 6 - Steel/Gray	Hammond 1414PHO6LP N12 J Box, Hinge Cover - 16 x 14 x 6 - Steel/Gray	Hammond 1414PHRO6LP N12 J Box, Hinge Cover - 14 x 16 x 6 - Steel/Gray	Hammond 1414PHK8LP N12 J Box, Hinge Cover - 12 x 10 x 8 - Steel/Gray	Hammond 1414PHM8LP N12 J Box, Hinge Cover - 14 x 12 x 8 - Steel/Gray	Hammond 1414PHO10LP N12 J Box, Hinge Cover - 16 x 14 x 10 - Steel/Gray
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Hammond 1414PHMH6LP Accessories

Choose a Category

Adapter Kits

for the Hammond 1414PHMH6LP

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Hammond 1414PHMH6LP - Type 12 Mild Steel Junction Box, 1414 PH Series

Standards

UL 508 Type 12, 13
CSA Type 12, 13
Complies with:
- NEMA Type 12 and 13
- JIC EGP-1-1967 unless marked
- IEC 60529, IP54

Application

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures
Provides a degree of protection from falling dirt, dust, oil and water

Construction

Smooth, continuously welded seams without knockouts, cutouts or holes
Welded brackets provide for enclosure mounting
Continuously hinged cover is secured with stainless steel clamps and plated steel screws
Seamless poured-in place gasket
Models larger than 4" x 4" include a removable 14 gauge inner panel
Internal threaded weld studs are provided for mounting inner panels
A bonding stud is provided on the door and a grounding stud is provided in the enclosure

Finish

Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating
Removable inner panel is finished in white powder coating

Part No. w/ Inner Panel	A	B	C	D	E	F	G	H	J	L	P	T	U	V	Y	Z	Ship Wt. (lbs) w/ Inner Panel
-	4.00	4.00	3.00	-	-	-	4.75	2.00	2.64	5.50	1.50	3.00	-	-	-	-	-
1414PHC¹	6.00	4.00	3.00	4.88	2.88	2.51	6.75	2.00	2.64	7.50	2.50	3.00	0.31	0.31	0.56	0.56	3
1414PHG	8.00	6.00	3.50	6.75	4.88	31.00	8.75	4.00	3.14	9.50	1.00	5.00	0.31	0.25	0.63	0.56	6
1414PHRG	6.00	8.00	3.50	4.88	6.75	31.00	6.75	6.00	3.14	7.50	2.50	7.00	0.25	0.31	0.56	0.63	6
-	4.00	4.00	4.00	-	-	-	4.75	2.00	3.64	5.50	1.50	3.00	-	-	-	-	-
1414PHC4¹	6.00	4.00	4.00	4.88	2.88	3.51	6.75	2.00	3.64	7.50	2.50	3.00	0.31	0.31	0.56	0.56	4
1414PHE	6.00	6.00	4.00	4.88	4.88	3.51	6.75	4.00	3.64	7.50	2.50	5.00	0.31	0.31	0.56	0.56	5
1414PHH4	8.00	8.00	4.00	6.75	6.88	3.51	8.75	6.00	3.64	9.50	1.00	7.00	0.31	0.25	0.63	0.56	8
1414PHI	10.00	8.00	4.00	8.75	6.88	3.51	1.75	6.00	3.64	11.50	1.00	7.00	0.31	0.25	0.63	0.56	1
1414PHRI	8.00	10.00	4.00	6.88	8.75	3.51	8.75	8.00	3.64	9.50	1.00	9.00	0.25	0.31	0.56	0.63	1
1414PHKC4	12.00	6.00	4.00	10.75	4.88	3.51	12.75	4.00	3.64	13.50	1.00	5.00	0.31	0.25	0.63	0.56	10
1414PHK	12.00	10.00	5.00	10.75	8.88	4.51	12.75	8.00	4.64	13.50	1.00	9.00	0.31	0.25	0.63	0.56	13
1414PHRK	10.00	12.00	5.00	8.88	10.75	4.51	1.75	10.00	4.64	11.50	1.00	11.00	0.25	0.31	0.56	0.63	13
1414PHG6	8.00	6.00	6.00	6.75	4.88	5.51	8.75	4.00	5.64	9.50	1.00	5.00	0.31	0.25	0.63	0.56	8
1414PHI6	10.00	8.00	6.00	8.75	6.88	5.51	1.75	6.00	5.64	11.50	1.00	7.00	0.31	0.25	0.63	0.56	12
1414PHJ6	10.00	10.00	6.00	8.75	8.88	5.51	1.75	8.00	5.64	11.50	1.00	9.00	0.31	0.25	0.63	0.56	14
1414PHL6	12.00	12.00	6.00	10.75	10.88	5.51	12.75	10.00	5.64	13.50	1.00	11.00	0.31	0.25	0.63	0.56	17
1414PHMH6	14.00	8.00	6.00	12.75	6.88	5.51	14.75	6.00	5.64	15.50	1.00	7.00	0.31	0.25	0.63	0.56	12
1414PHM6	14.00	12.00	6.00	12.75	10.88	5.51	14.75	10.00	5.64	15.50	1.00	11.00	0.31	0.25	0.63	0.56	19
1414PHRM6	12.00	14.00	6.00	10.88	12.75	5.51	12.75	12.00	5.64	13.50	1.00	13.00	0.25	0.31	0.56	0.63	19
1414PHN6	16.00	10.00	6.00	14.75	8.88	5.51	16.75	8.00	5.64	17.50	1.00	9.00	0.31	0.25	0.63	0.56	18
1414PHO6	16.00	14.00	6.00	14.75	12.88	5.51	16.75	12.00	5.64	17.50	1.00	13.00	0.31	0.25	0.63	0.56	23
1414PHRO6	14.00	16.00	6.00	12.88	14.75	5.51	14.75	14.00	5.64	15.50	1.00	15.00	0.25	0.31	0.56	0.63	23
1414PHK8	12.00	10.00	8.00	10.75	8.88	7.51	12.75	8.00	7.64	13.50	1.00	9.00	0.31	0.25	0.63	0.56	18
1414PHM8	14.00	12.00	8.00	12.75	10.88	7.51	14.75	10.00	7.64	15.50	1.00	11.00	0.31	0.25	0.63	0.56	20
1414PHO8	16.00	14.00	8.00	14.75	12.88	7.51	16.75	12.00	7.64	17.50	1.00	13.00	0.31	0.25	0.63	0.56	25
1414PHO10	16.00	14.00	10.00	14.75	12.88	9.51	16.75	12.00	9.64	17.50	1.00	13.00	0.31	0.25	0.63	0.56	26
Part No. w/o Inner Panel	A	B	C	D	E	F	G	H	J	L	P	T	U	V	Y	Z	Ship Wt. (lbs) w/o Inner Panel
1414PHA¹	4.00	4.00	3.00	-	-	-	4.75	2.00	2.64	5.50	1.50	3.00	-	-	-	-	2
1414PHCLP¹	6.00	4.00	3.00	4.88	2.88	2.51	6.75	2.00	2.64	7.50	2.50	3.00	0.31	0.31	0.56	0.56	2
1414PHGLP	8.00	6.00	3.50	6.75	4.88	31.00	8.75	4.00	3.14	9.50	1.00	5.00	0.31	0.25	0.63	0.56	5
1414PHRGLP	6.00	8.00	3.50	4.88	6.75	31.00	6.75	6.00	3.14	7.50	2.50	7.00	0.25	0.31	0.56	0.63	5
1414PHA4¹	4.00	4.00	4.00	-	-	-	4.75	2.00	3.64	5.50	1.50	3.00	-	-	-	-	3
1414PHC4LP¹	6.00	4.00	4.00	4.88	2.88	3.51	6.75	2.00	3.64	7.50	2.50	3.00	0.31	0.31	0.56	0.56	3
1414PHELP	6.00	6.00	4.00	4.88	4.88	3.51	6.75	4.00	3.64	7.50	2.50	5.00	0.31	0.31	0.56	0.56	4
1414PHH4LP	8.00	8.00	4.00	6.75	6.88	3.51	8.75	6.00	3.64	9.50	1.00	7.00	0.31	0.25	0.63	0.56	7
1414PHILP	10.00	8.00	4.00	8.75	6.88	3.51	1.75	6.00	3.64	11.50	1.00	7.00	0.31	0.25	0.63	0.56	8
1414PHRILP	8.00	10.00	4.00	6.88	8.75	3.51	8.75	8.00	3.64	9.50	1.00	9.00	0.25	0.31	0.56	0.63	8
1414PHKC4LP	12.00	6.00	4.00	10.75	4.88	3.51	12.75	4.00	3.64	13.50	1.00	5.00	0.31	0.25	0.63	0.56	8
1414PHKLP	12.00	10.00	5.00	10.75	8.88	4.51	12.75	8.00	4.64	13.50	1.00	9.00	0.31	0.25	0.63	0.56	10
1414PHRKLP	10.00	12.00	5.00	8.88	10.75	4.51	1.75	10.00	4.64	11.50	1.00	11.00	0.25	0.31	0.56	0.63	12
1414PHG6LP	8.00	6.00	6.00	6.75	4.88	5.51	8.75	4.00	5.64	9.50	1.00	5.00	0.31	0.25	0.63	0.56	7
1414PHI6LP	10.00	8.00	6.00	8.75	6.88	5.51	1.75	6.00	5.64	11.50	1.00	7.00	0.31	0.25	0.63	0.56	10
1414PHJ6LP	10.00	10.00	6.00	8.75	8.88	5.51	1.75	8.00	5.64	11.50	1.00	9.00	0.31	0.25	0.63	0.56	12
1414PHL6LP	12.00	12.00	6.00	10.75	10.88	5.51	12.75	10.00	5.64	13.50	1.00	11.00	0.31	0.25	0.63	0.56	15
1414PHMH6LP	14.00	8.00	6.00	12.75	6.88	5.51	14.75	6.00	5.64	15.50	1.00	7.00	0.31	0.25	0.63	0.56	10
1414PHM6LP	14.00	12.00	6.00	12.75	10.88	5.51	14.75	10.00	5.64	15.50	1.00	11.00	0.31	0.25	0.63	0.56	17
1414PHRM6LP	12.00	14.00	6.00	10.88	12.75	5.51	12.75	12.00	5.64	13.50	1.00	13.00	0.25	0.31	0.56	0.63	17
1414PHN6LP	16.00	10.00	6.00	14.75	8.88	5.51	16.75	8.00	5.64	17.50	1.00	9.00	0.31	0.25	0.63	0.56	15
1414PHO6LP	16.00	14.00	6.00	14.75	12.88	5.51	16.75	12.00	5.64	17.50	1.00	13.00	0.31	0.25	0.63	0.56	21
1414PHRO6LP	14.00	16.00	6.00	12.88	14.75	5.51	14.75	14.00	5.64	15.50	1.00	15.00	0.25	0.31	0.56	0.63	21
1414PHK8LP	12.00	10.00	8.00	10.75	8.88	7.51	12.75	8.00	7.64	13.50	1.00	9.00	0.31	0.25	0.63	0.56	15
1414PHM8LP	14.00	12.00	8.00	12.75	10.88	7.51	14.75	10.00	7.64	15.50	1.00	11.00	0.31	0.25	0.63	0.56	18
1414PHO8LP	16.00	14.00	8.00	14.75	12.88	7.51	16.75	12.00	7.64	17.50	1.00	13.00	0.31	0.25	0.63	0.56	22
1414PHO10LP	16.00	14.00	10.00	14.75	12.88	9.51	16.75	12.00	9.64	17.50	1.00	13.00	0.31	0.25	0.63	0.56	23

¹ Does not meet JIC Requirements

Tech Specs

Test Equipment General Attributes
Product Height	6.00 IN
Product Length	14.00 IN
Product Width	8.00 IN
Country of Origin	Canada
Shipping Height	6.00 IN
Shipping Length	14.00 IN
Shipping Width	8.00 IN
