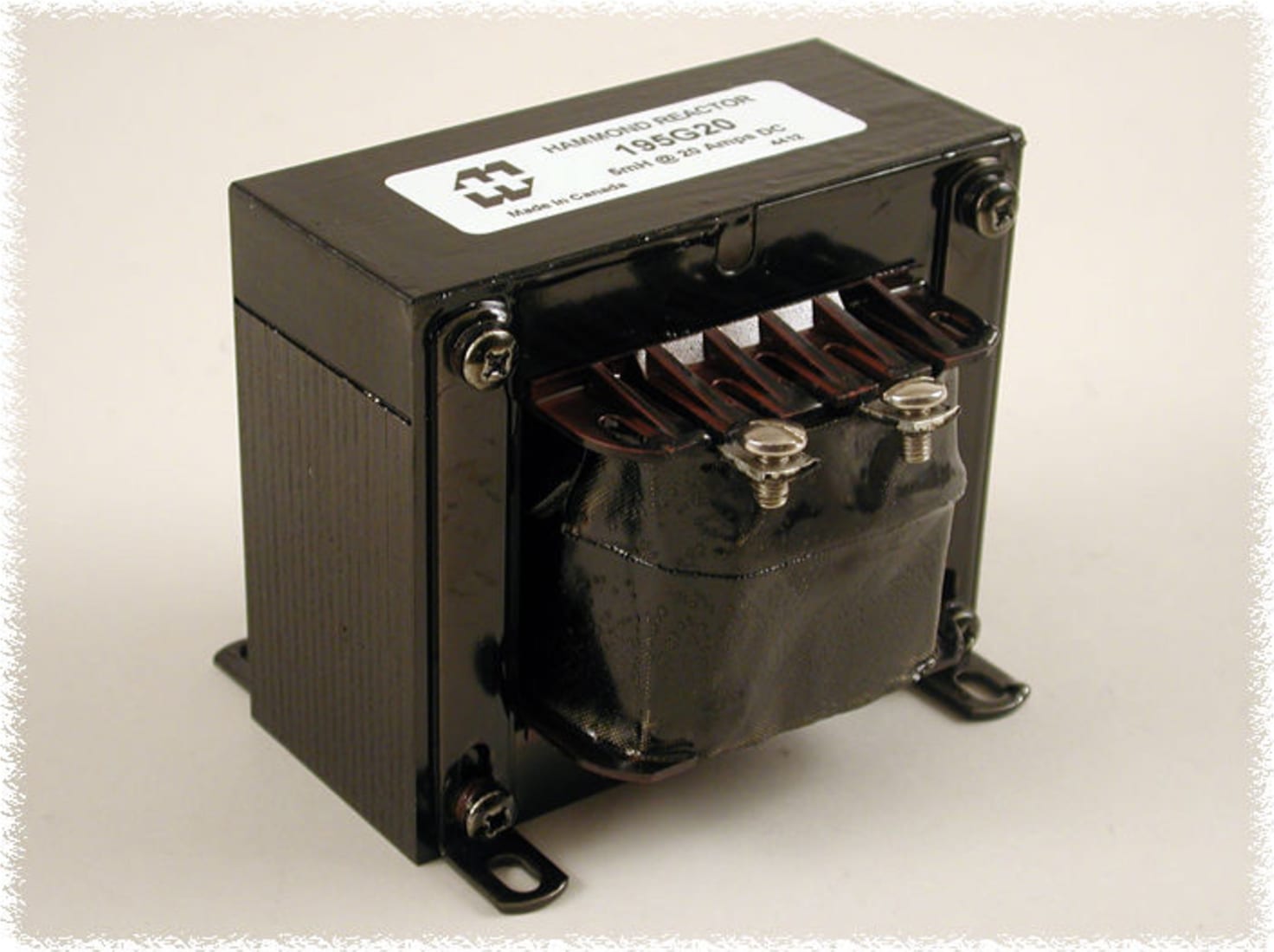

Hammond 195E20 Chokes And Reactors

Name: Hammond 195E20 Chokes And Reactors
Brand: Hammond
SKU: Hammond195E20
Price: 85.52 USD
Availability: InStock

0 reviews | UPC: 623980261300 | Model: Hammond 1.95E+22

Compare

Chokes And Reactors - Heavy Current 195 Series

Open core & coil, 4-slot bracket mounting chokes
Tolerance of 15% on both inductance & resistance
Inductances measured at rated D.C. current
Single coil
Recommended maximum operating voltage 600 VAC (winding to core)
Hipot tested at 2,500 VAC
Connections are made to a screw terminal or heavy copper tabs with holes
Perfect for high current power supply filtering

View Product Details

List Price: $160.22

Your Price: $85.52

In Stock:

View Payment Options

Request Quote

Recommended for you

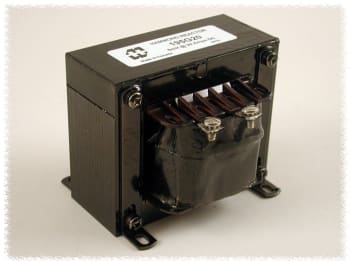

Hammond 195E20 Chokes And Reactors

Mounting choke

Single coil
Hipot tested at 2,500 VAC
Recommended maximum operating voltage 600 VAC (winding to core)

The Hammond 195E20 is an open core and single-coil, 4-slot bracket mounting choke. It features a tolerance of 15% on both inductance & resistance. Inductances measured at rated D.C. current.

The 195E20 is perfect for high current power supply filtering. It has a recommended maximum operating voltage of 600 VAC (winding to core). Connections are made to a screw terminal or heavy copper tabs with holes.

Model: 195E20 Specifications
Description	Chokes And Reactors
Inductance mH (Millihenries)	2.5"
D.C. Current (Amps)	20"
Resistance (Ohms)	0.022"
Insulation Class	A
Dimensions	A: 3.75" B: 4.20" C: 3.13" D: 3.13" E: 2.75"
Mounting slot G	0.20" x 0.38"
Shipping Weight	6.5 lbs (2.95 kg)
UPC	62398026130
REACH Compliant	Yes
RoHS Compliant	Yes

Tech Specs

Test Equipment General Attributes
Product Height	4.00 IN
Product Length	5.00 IN
Product Width	4.00 IN
Shipping Weight	6.5 LBS
Country of Origin	Canada
Shipping Height	4.00 IN
Shipping Length	5.00 IN
Shipping Width	4.00 IN
