Programmable Hot Air Rework Station with Vacuum Pickup

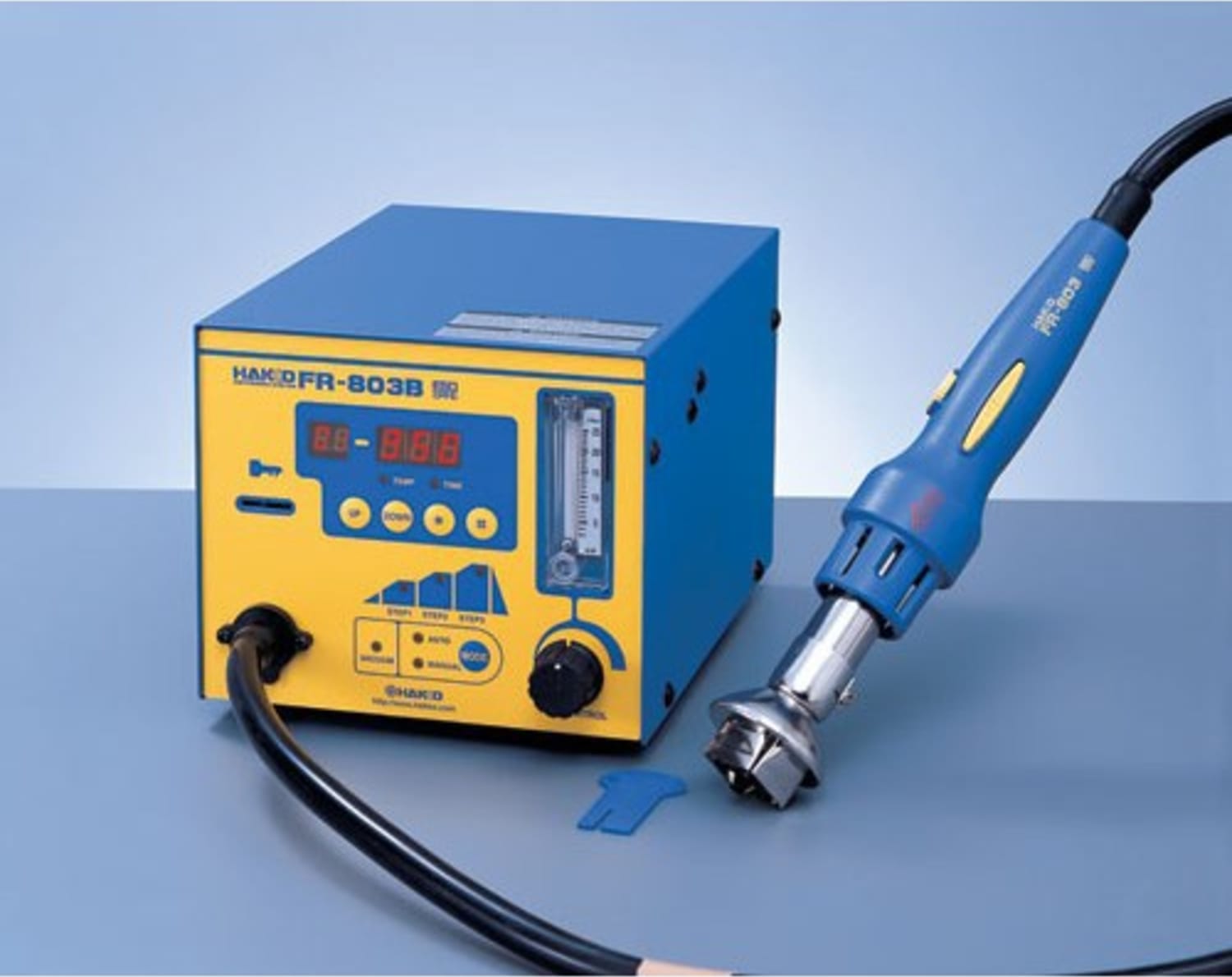

The FR803B-11 is one of Hakko's new generation of SMD rework stations. The integrated temperature sensor allows for consistent and accurate temperature control, and the unique air stream outlet design allows for consistent temperatures of the hot air stream generated by the unit.
The Hakko FR-803 provides up to 50 / 3-step rework profiles that can be stored in the unit's memory, allowing for easy recall and consistent operation.
Use the lockout key card to enter temperature settings into the system memory, then when the card is removed, all parameter settings are “locked” into the system memory and cannot be changed without the key card. This feature guards against an operator making accidental or unauthorized temperature changes.
Built-in power save feature automatically turns the hot air stream off if the unit has not been stopped for a pre-selected (30 or 60 minutes) amount of time.
Designed to remove and replace a wide variety of SMD components, these hot air rework stations provide consistent and accurate temperature control utilizing a 400W focused convection handpiece with integrated temperature sensor and unique air stream outlet.
Stainless steel nozzles (not included) direct heated air onto component leads while preventing unwanted heat from affecting neighboring components. Internal diaphragm pump, with easy-to-read meter, generates variable airflow from 5 to 20 liters/min. Auto cool-down function engages when stop button on hot air handpiece is pressed.
A lock-out key card is supplied to guard against unauthorized changes to tip temperature and process parameters once they are set using the keypad. Other features include integrated push-button hot air switch on handpiece, and built-in power save feature (after a pre-selected 30 or 60 minutes of non-use). Model FR803 incorporates a built-in vacuum pickup with a range of 5 to 20 liters/min.
This unit can operate in MANUAL mode (for simple operation) or AUTO mode (for programmable process control). In AUTO mode, one of 50 programmable 3-step rework profiles can be used to control both temperature and time. The profiles are stored in the unit's memory, allowing for easy recall and consistent operation. Push-button switches for heat and vacuum pickup are built right into the handpiece. All three models are ESD-safe and operate on 120VAC.
