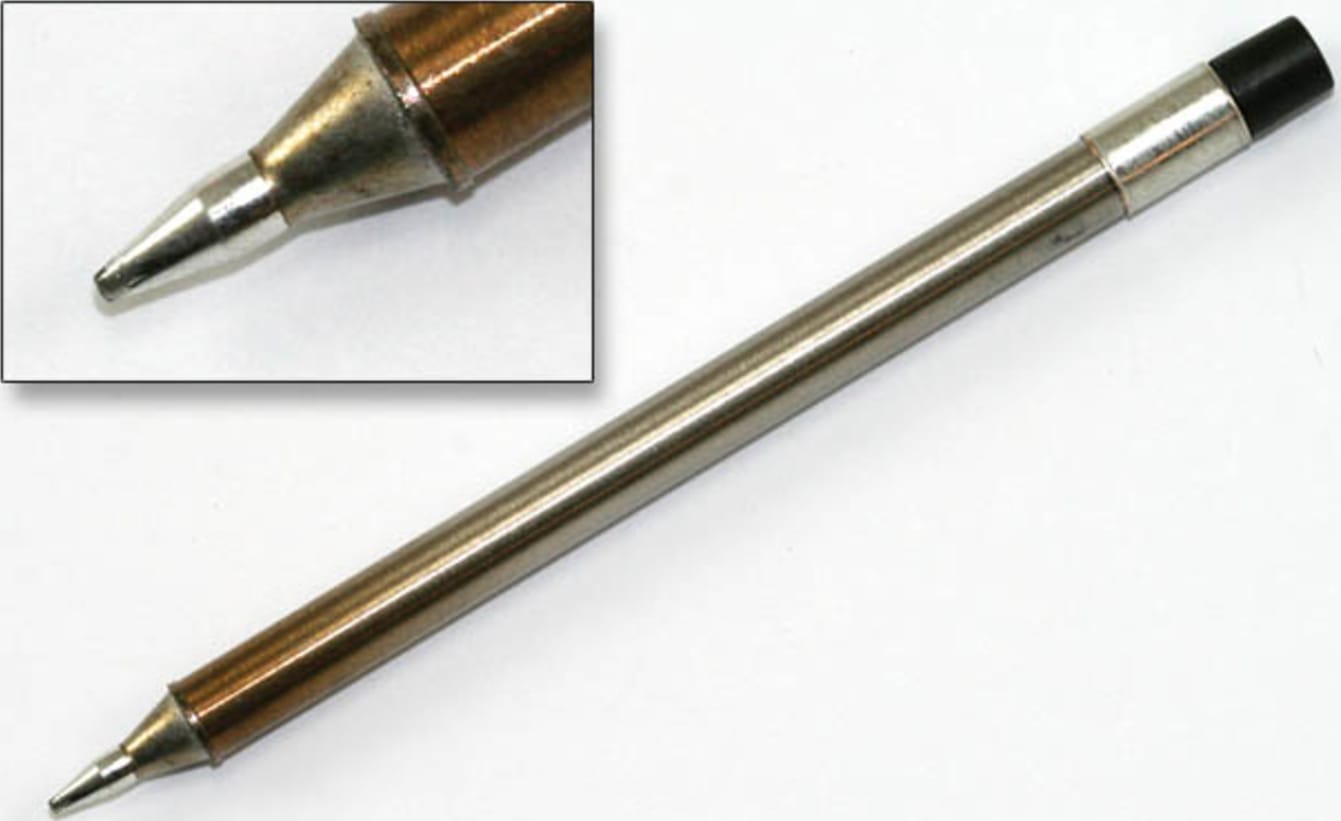

Hakko T31-03D08 - Tip, Chisel, 0.8 x 9mm, IH, 350 Degree C/660 Degree F.

T31 Series Composite Tip

• 0.8 x 9mm
• IH
• 350 Degree C/660 Degree F
• For FX1001-51 Soldering Iron
• Chisel

This tip is used with the Hakko FX-100 Induction Heat Soldering System. The T31-03 series use a highly precise manufacturing process that allows for more repeatable tip temperature between not only the same tip shape but also between tips of different shapes within the same series.

Tip construction provides similar durability to that of the Hakko T15 Series tips, thus allowing you to experience Hakko's renowned tip life. The new high-frequency induction heaters are precisely tuned and highly responsive with excellent power output.

This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece. It is used for drag soldering and pre-tinning of lead wires.

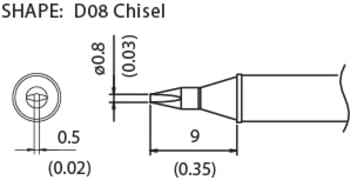

Product Dimension
