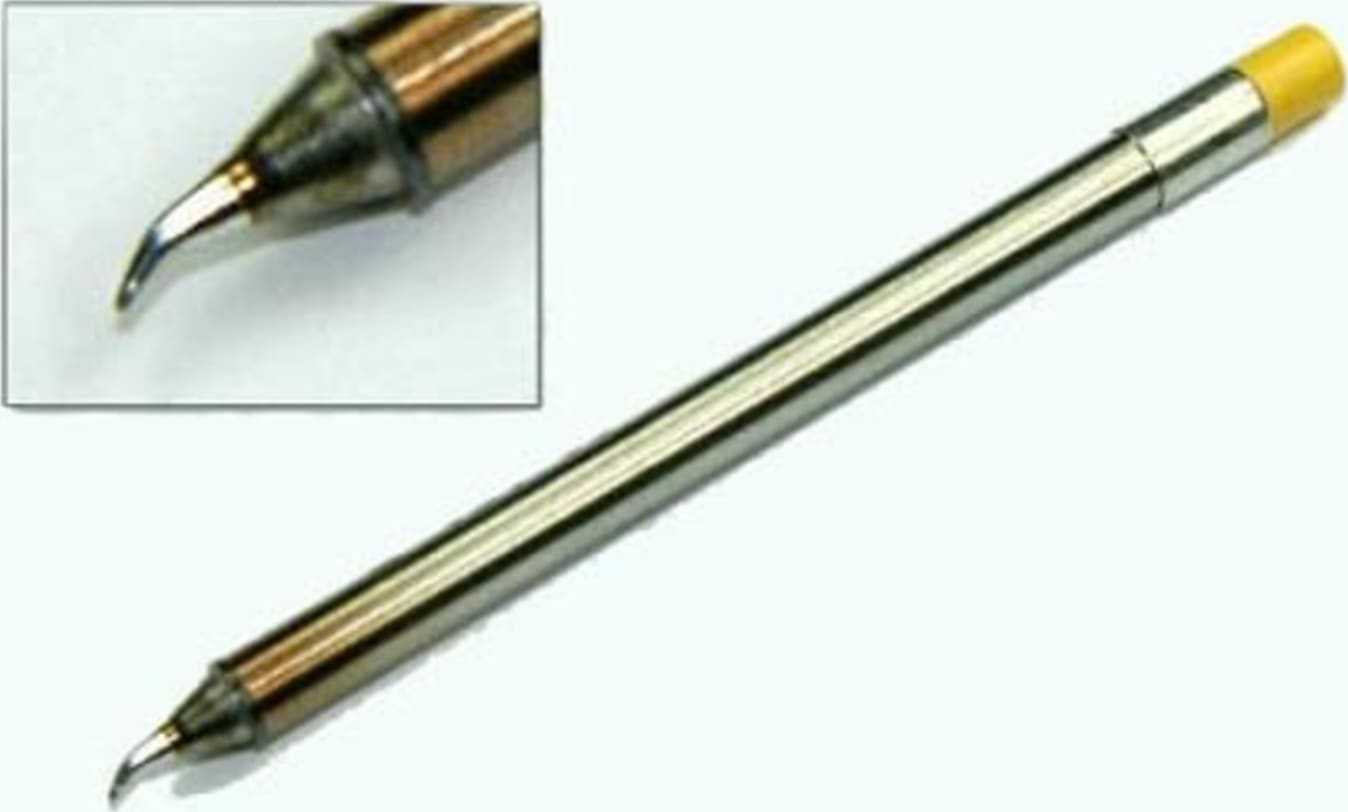

Hakko T31-00JS02 Soldering Tip Conical-Bent R0.2mm/30 Degree x 1.8mm x 6.6mm

Name: Hakko T31-00JS02 Soldering Tip Conical-Bent R0.2mm/30 Degree x 1.8mm x 6.6mm
Brand: Hakko
SKU: HakkoT31-00JS02
Price: 22.22 USD
Availability: InStock

0 reviews | Catalog: T31-00JS02 | UPC: 4962615045356 | Model: Hakko T31-00JS02

Compare

TIP, BENT, R0.2mm/30 Degree x 1.8mm x 6.6mm, IH, 480 Degree C/895 Degree F, FX-1001

Soldering Tip
Conical-Bent R0.2mm/30
Degree x 1.8mm x 6.6mm
IH,480
Degree C/895
Degree F
For Hakko FX-1001

View Product Details

List Price: $22.67

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Flux Remover

for the Hakko T31-00JS02

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

Catalog: 824-450G

(7)

In Stock!

Add to Cart

Hakko T31-00JS02 Tip Bent R0.2mm/30 Degree x 1.8mm x 6.6mm IH,480 Degree C/895 Degree F

Bent
R0.2mm/30 Degree x 1.8mm x 6.6mm
IH
400 Degree C/750 Degree F
For FX1001-51 Soldering Iron

This tip is used with the Hakko FX-100 Induction Heat Soldering System. The T31-03 series use a highly precise manufacturing process that allows for more repeatable tip temperature between not only the same tip shape but also between tips of different shapes within the same series.

Tip construction provides similar durability to that of the Hakko T15 Series tips, thus allowing you to experience Hakko's renowned tip life. The new high-frequency induction heaters are precisely tuned and highly responsive with excellent power output.

This type has a shape like a cone or column cut at a slant, which allows users to select the cut surface size depending on the workpiece. It is used for drag soldering and pre-tinning of lead wires.

Difference Between BC/C Type and BCF/CF Type

		Shape BC	Shape C
Difference	Shape	This type has a shape like a cone cut at a slant.	This type has a like a column cut at a slant.
	Heat capacity of tip	In Shape BC with its conical shape, the nearer to the base, the thicker the diameter. Therefore, although these types have the same diameter Φ1, Shape BC has more heat capacity.
Commonality	How to select tip size	Please select the cut surface size depending on the workpiece.
	Others	In case of a chip condenser, we recommend soldering it with Shape BC or C to form ideal solder fillet, which can be hardly formed with Shape B or D.

	BC/C shape	BCF/CF shape
Feature	Tips are tinned at the certain area of the tip end as following picture.	Tips are tinned at the surface only.
Recommend use	- For the heavy duty soldering.	- Components are dense.
Recommend use	If there is enough space between each components.	Easy to be bridging.
