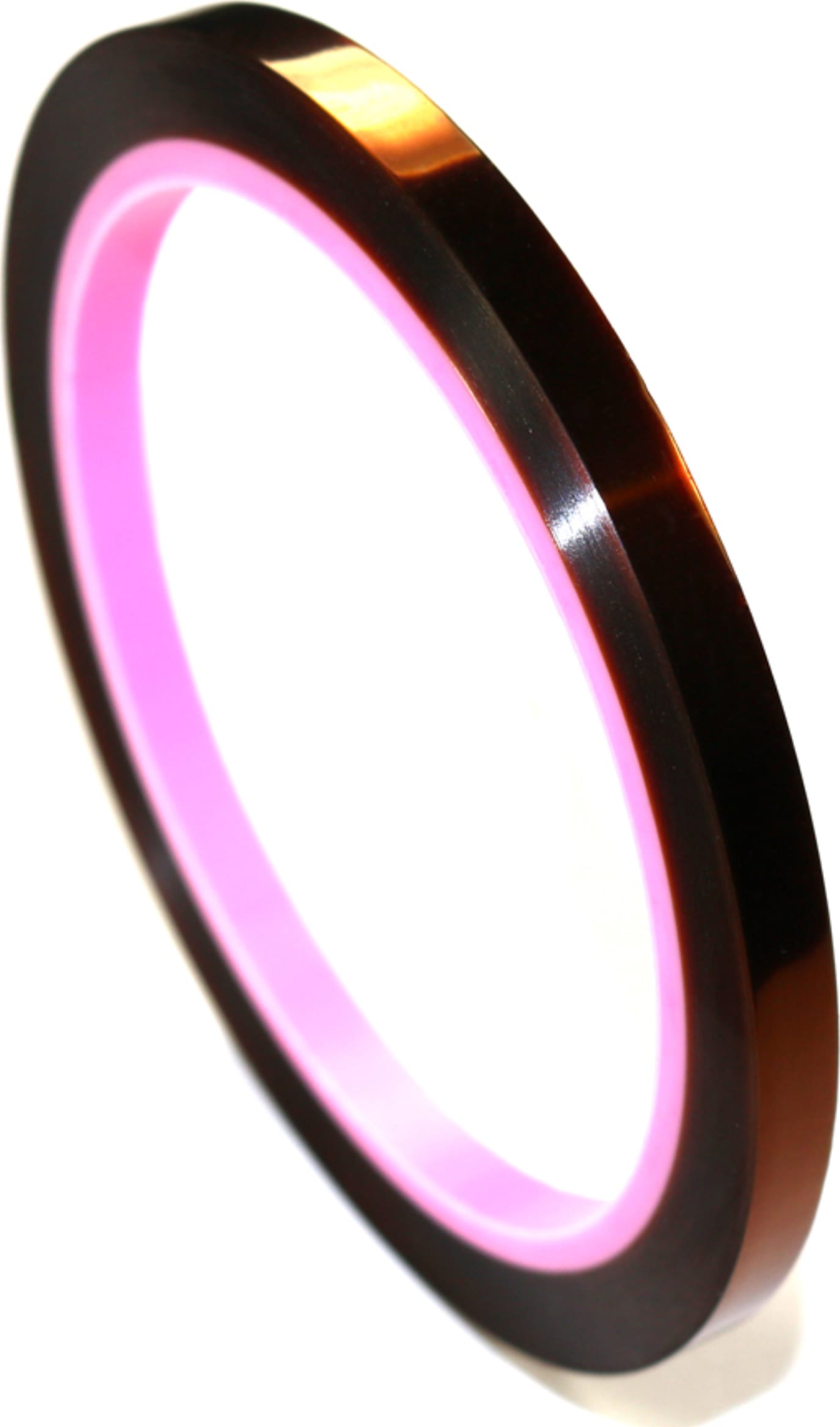

Hakko SC-0412 2.7 mils x 0.25 in. Low Static Polyimide Tape

Name: Hakko SC-0412 2.7 mils x 0.25 in. Low Static Polyimide Tape
Brand: Hakko
SKU: HakkoSC-0412
Price: 5.50 USD
Availability: InStock

0 reviews | Catalog: SC-0412 | UPC: 641328067612 | Model: Hakko SC-0412

Compare

TAPE, POLYIMIDE, 2.7mils, 0.25in x 36yd, ESD

<50v Removal from roll
1.0 mil Film Thickness
2.7 mils Total Thickness
500°F Max Temperature
3-inch Pink Plastic Core w/Lot ID
36-yd roll

View Product Details

List Price: $6.47

In Stock:

View Payment Options

Recommended for you

Hakko SC-0412 2.7 mils x 0.25 in. Low Static Polyimide Tape

Electrical grade Polyimide with anti-static treatment and pre-cured pressure sensitive silicone adhesive film designed to operate at high temperatures and provide clean removal with no residue. Anti-static treatment minimizes the effective of static generating when peeling.

Specifications
Part No.	SC-0412
Material	Polyimide Film
Film Thickness	1.0 mils
Dielectric Strength	7 KV
Insulation Class	<10⁶ Ohms
Core	3 in. Pink Plastic - Date Coded
Static Charge Generation (70oF 50% RH)	<50v removal from roll
Max Temperature	500°F
Tensile Strength	32 lb./in.
Adhesion Strength	22 oz/in. width (24 N/100 mm)
Adhesive	Silicon
Total Thickness	2.7 mils
Elongation	> 45%
Color	Amber
Chemical Resistance (acids, oils, solvents)	Excellent

Tech Specs

Test Equipment General Attributes
Product Height	0.30 IN
Product Length	4.25 IN
Product Width	4.00 IN
Country of Origin	Taiwan
Shipping Height	0.30 IN
Shipping Length	4.25 IN
Shipping Width	4.00 IN
