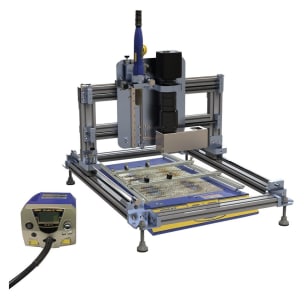

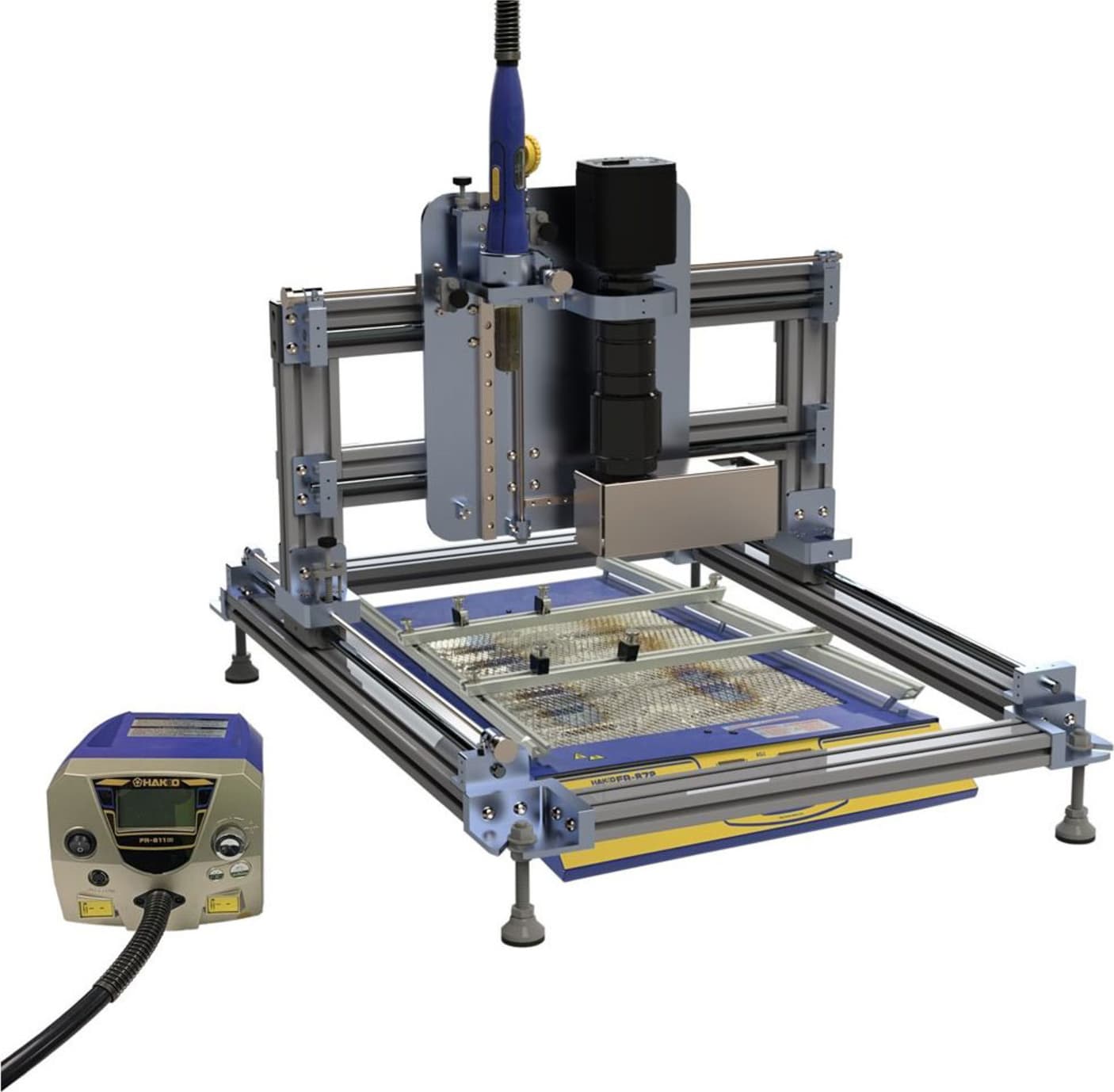

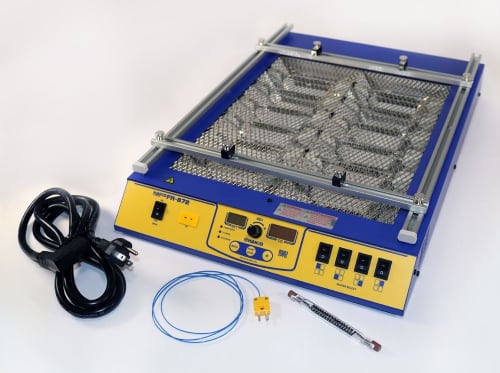

The Hakko HJ4000-SET is a full SMD rework system with rework fixture, hot air station and preheater.
HJ4000 rework fixture
The Hakko HJ4000 SMD rework fixture is a cost effective solution for manual SMD rework using split vision alignment precision and can be used with select Hakko hot air rework stations and IR preheaters for a complete low cost SMD rework system.
The HJ4000 fixture is designed for the printed circuit board to remain stationary while the head assembly is moved to accomplish the x, y and theta alignment. The gantry and frame base is constructed with lightweight extruded aluminum for cost efficiency and accuracy, while high precision linear bearings offer smooth x, y and z positioning.
Other features include quick release brakes for quick positioning, and fine adjustment controls for perfect alignment, +/- 100 microns, including theta.
The Z axis has a safety stop to limit movement and prevent the nozzle from contacting the top surface of the printed circuit board when lowered into position.
SPLIT-VISION SYSTEM
The split-vision alignment capability of the HJ4000 allows you to accurately place SMD components as large as 45mm square down to 1mm square. And real-time viewing of the alignment is accomplished using a high-resolution color camera, lens and prism system.
Use the high-quality macro video lens for close-focusing up to 6X optical zoom, while the camera module features a 10X digital zoom capability.
The bottom-side of the component is illuminated with "white" dimmable LED lighting while the target location on the PCB is illuminated with "blue" dimmable LED lighting. Top and bottom lighting are then independently adjusted to provide optimal contrast for the user between the two images.

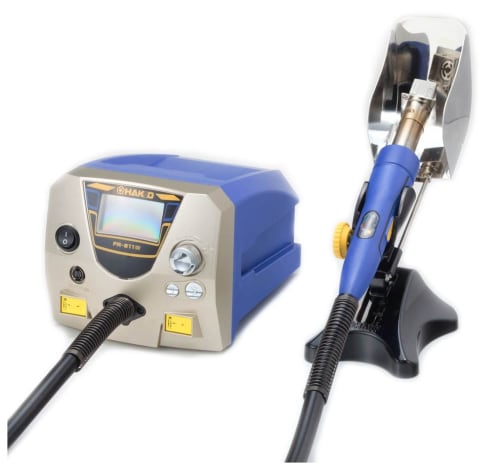

FR811-04 hot air station
The FR-811 is a complete SMD rework system, featuring dual thermocouple inputs for part and board monitoring, PC integration via USB port with Hakko software, an additional external USB port for flash drive memory for storage of profiles, onboard storage of up to 50 profiles, manual and auto modes, auto teach mode for profiling, password lockout, and lots more!
- New graphic interface display and navigation system that simplifies operation
- Dual T/C inputs allow users to monitor part and board temperatures while controlling the ramp rate for a safe, accurate and repeatable process.
- Automatic mode gives users the ability to fully program profiles with up to 6 stages
- Onboard storage of up to 50 profiles with an external USB port for flash drive memory for storage of profiles
- A dedicated USB port can also be used to integrate the FR-811 with a PC using the included software - Note: Software is compatible with Windows 7 through Windows 10.
- Integrated vacuum pickup with a visual indicator in the handpiece that indicates when the component has been completely reflowed
