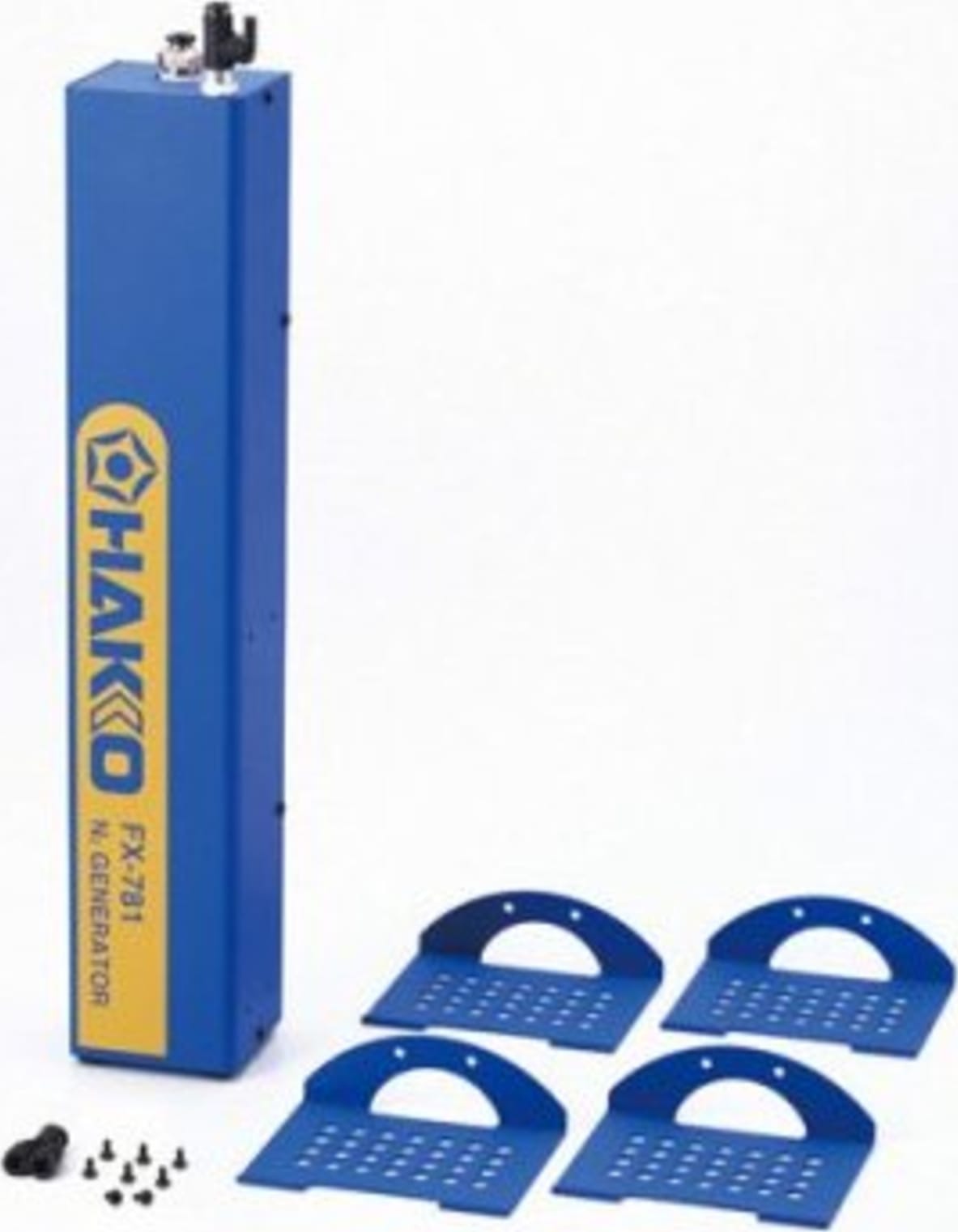

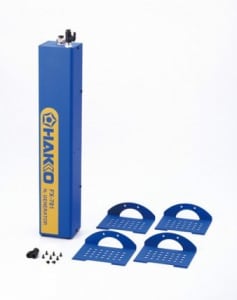

Hakko FX-781 Soldering Iron/N2 System

0 reviews | Catalog: FX781-81 | UPC: 4962615044403 | Model: Hakko FX-781

Hakko FX-781 N2 Station, Generator, High Capacity

Compare

N2 STATION, GENERATOR, HIGH CAPACITY, FX-781

Generates Nitrogen gas at max. concentration of 99.9%
Provides N2 gas by compressed air which does not need electric power supply.
Large-capacity type accepts 2 soldering irons

View Product Details

List Price: $2,803.37

Your Price: $2,663.20

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Items in This Series



Product	Hakko FX-781 N2 STATION, GENERATOR, HIGH CAPACITY, FX-781	Hakko FX780-01 N2 Station, Generator
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Hakko FX-781 Accessories

Choose a Category

Accessories

for the Hakko FX-781

Hakko B3024 RACK, w/2 SCREWS, FX-781/780

(0)

In Stock!

Add to Cart

Hakko FX-781 Soldering Iron/N2 System

Soldering Iron/N2 System

Generates Nitrogen gas at max. concentration of 99.9%
Provides N2 gas by compressed air which does not need electric power supply.
Large-capacity type accepts 2 soldering irons

Performance Table of HAKKO FX-780

Air Supply Pressure (MPa)	N2concentration (%)	99.9	99.5	99.0	98.0	97.0	96.0	95.0	90.0
0.3	Amount of Generation	0.15	0.37	0.48	0.66	0.88	1.1	1.3	2.6
0.4	Amount of Generation	0.24	0.57	0.77	1.1	1.4	1.7	2.0	4.4
0.5	Amount of Generation	0.35	0.75	1.1	1.5	1.9	2.2	2.9	5.9
0.6	Amount of Generation	0.48	0.97	1.3	1.8	2.4	3.1	3.5	7.5
0.7	Amount of Generation	0.55	1.2	1.6	2.2	3.1	3.7	4.2	9.2

Performance Table of HAKKO FX-781

Air Supply Pressure (MPa)	N2concentration (%)	99.9	99.5	99.0	98.0	97.0	96.0	95.0	90.0
0.3	Amount of Generation	0.28	0.55	0.84	1.1	1.4	1.7	2.1	4.8
0.4	Amount of Generation	0.49	0.9	1.3	1.8	2.3	2.8	3.4	7.8
0.5	Amount of Generation	0.7	1.2	1.8	2.4	3.2	4.0	4.8	10.9
0.6	Amount of Generation	0.92	1.7	2.3	3.2	4.2	4.9	6.1	13.8
0.7	Amount of Generation	1.1	2.1	2.8	4.0	5.1	6.3	7.6	17.1

Usage / Applications

FLIR - E6xt

R&S - T&M Promo

Model No.	FX-780	FX-781
Air supply pressure	0.3 to 0.7MPa
Concentration of generated N2	99.9% (Max.)
Amount of generated N2	1.5L/min. (When compressed air of 0.5MPa is supplied at 25ºC, the concentration of generated nitrogen is 98%.)	2.4L/min. (When compressed air of 0.5MPa is supplied at 25ºC, the concentration of generated nitrogen is 98%.)
Dimensions	73(W)×282(H)×71(L)mm	73(W)×407(H)×71(L)mm
Weight	1.5kg	2kg
`* Dimensions (w/o sockets and valve) * weight (w/o racks)`

Test Equipment General Attributes
Product Weight	4.40 LBS
Product Height	16.02 IN
Product Length	2.79 IN
Product Width	2.87 IN
Shipping Weight	6.50 LBS
Country of Origin	Japan
Shipping Height	16.02 IN
UPC	4962615044403
Shipping Length	2.79 IN
Shipping Width	2.87 IN
