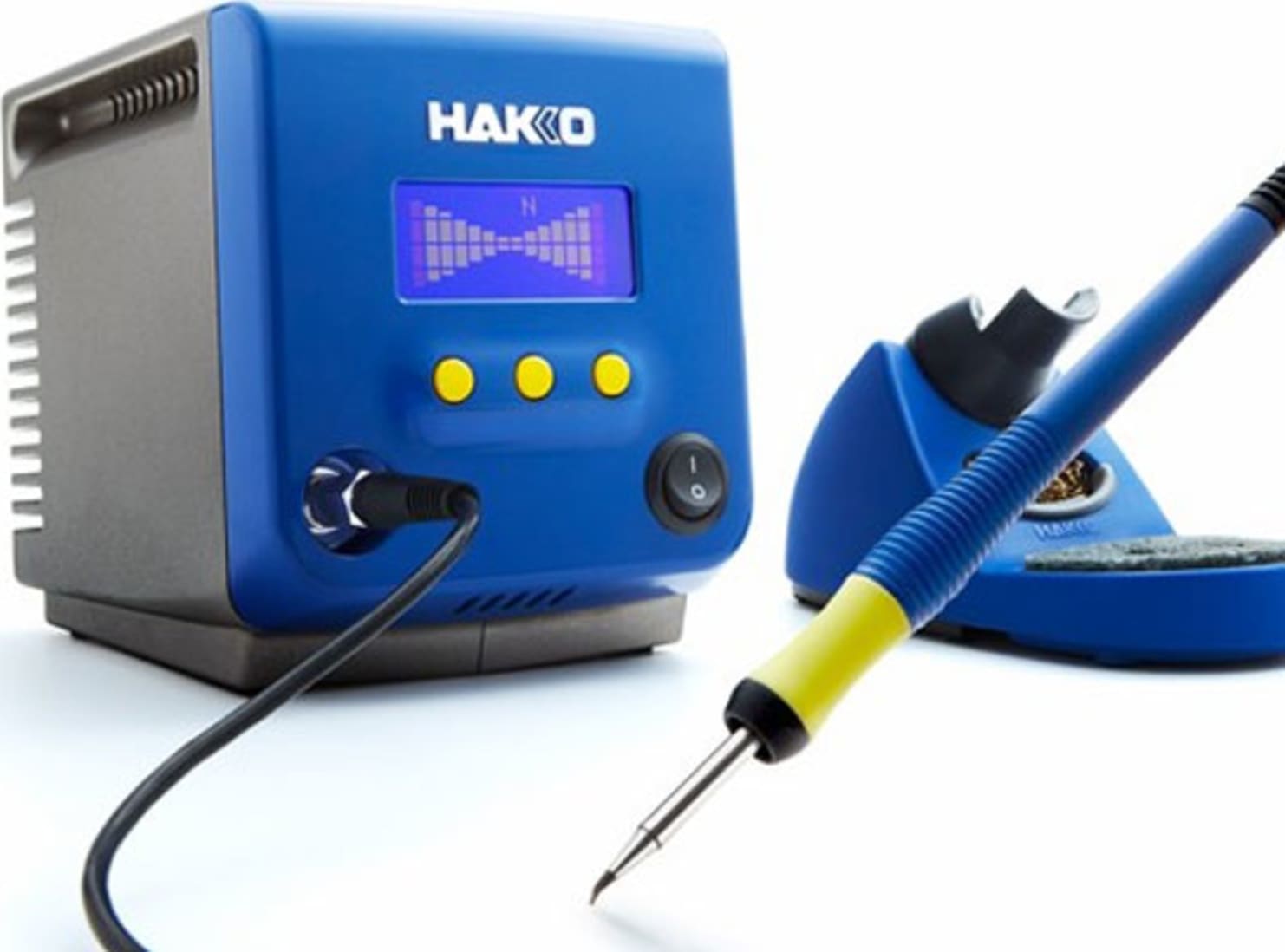

The FX‐100 Soldering System brings induction heat soldering technology to an even higher performance level. This small, compact station includes microprocessor control that BOOST the recovery performance of the soldering iron tip and an Advanced System Design that optimizes performance by reducing the loss of power in the system while maintaining the lowest EMI levels to meet applicable standards, especially for work with sensitive devices.
The system is simple to operate – just plug it in and turn it on. No calibration required.
Features
Raising the world standard in induction heating soldering irons
- Induction heating for excellent thermal efficiency
The unique Induction Heating (IH) system used by the HAKKO FX-100, which automatically heats the tips and rapidly returns it to the fixed temperature whenever a load is applied to the tip, includes HAKKO's proprietary “Power Assist” function.This function provides less temperature drop and improved thermal recovery when soldering. And if you need a bit more power for those challenging solder joints, just select “Boost Mode”.
*Power Assist is HAKKO's proprietary function that monitors current, detects drops in tip
temperature, and increases power to assist thermal recovery characteristics.
A next-generation IH soldering iron
- Featuring a small tip that packs enough heat power to change the face of high heat capacity, high-density micro-soldering
Unlike resistance-based heating systems that control temperature by turning heater power on and off via a sensor, the tip itself produces heat and maintains a constant temperature in induction heating system.This system comes into its own when using a small tip to solder spots requiring a lot of power.
Design emphasizes both functionality and workability
2013 Good Design Award winner.
The FX-100 enables smooth soldering of difficult areas thanks to a thin, light cord and responsive grip.
Simple three-button operation
- Large LCD displays information for easy operation and management.
