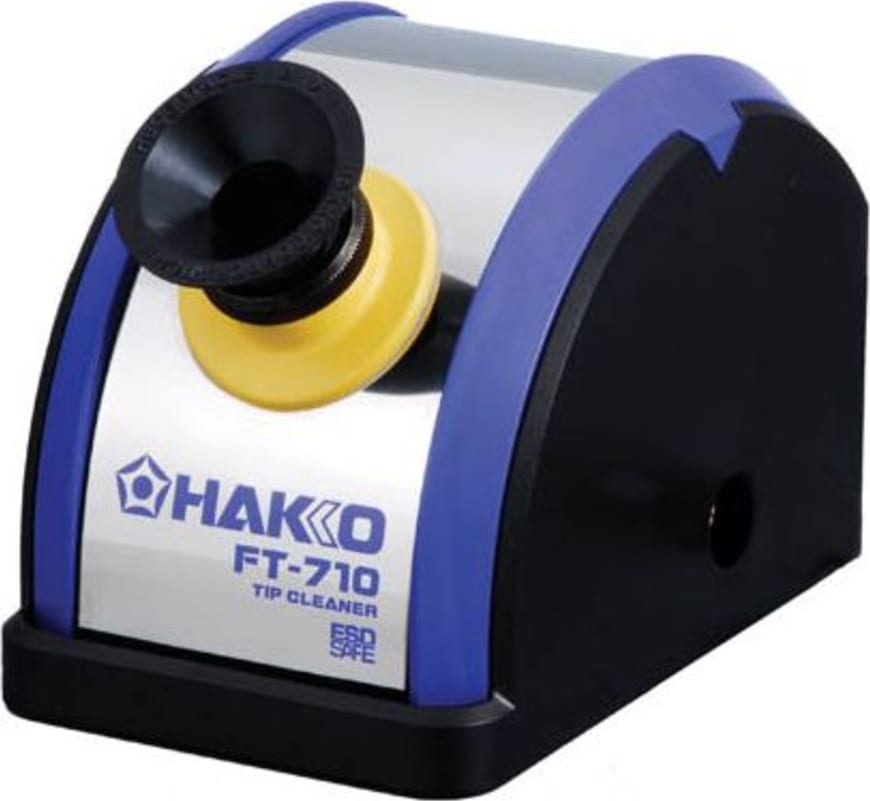

Hakko FT710-04 FT-710 Tip Cleaner

Prevents solder from splashing when cleaning.

• Inserting just the tip into the receptacle completely prevents solder from splashing.

Two-types of brushes control how much solder is removed.

• Solder removal status can be adjusted by plastic brushes and metallic brushes.With wire-type cleaners, excessive amounts of solder remain on the tip, which causes solder to splash when soldering. With sponge-type cleaners, oxidation is promoted, which causes shorter tip life.
• A tip cleaner with both wire-type and sponge-type advantages eliminates the above problems when soldering.

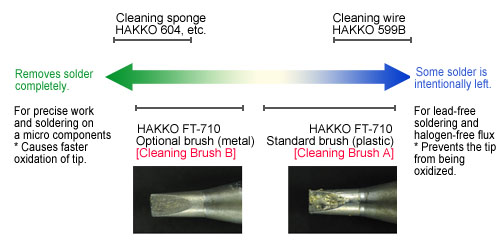

Comparison of how much solder is removed by the different cleaning methods

Minimizes decrease in temperature of the tip while cleaning.

• Inserting the tip turns the brush automatically; no need to switch it on and off.
• Reduces the tip cleaning time between soldering works to increase work efficiency.
• The electric rotary cleaner provides a uniform final cleaning status with no differences between individuals.

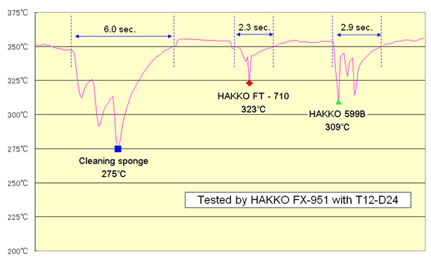

Comparison of decrease in tip temperature by cleaning method

If decrease in temperature is small, the time for a single cleaning also becomes short.Because cleaning is performed many times per day, the overall working time can be also shortened.Time for single cleaning (The time for a single cleaning is measured as the time until the tiptemperature reaches the set temperature after cleaning.)

The low-noise design relieves stress due to noise during work.

This cleaner is very quiet in comparison with competitor's electric tip cleaner.

Easy to maintain

• Easy-to-replace brushes
  • → Brushes can be replaced without removing any screws.
• Solder left inside is stored in "Solder waste collector".
  • → Solder does not splash all over the inside of the main body.
• Safe design prevents brushes from turning unexpectedly during replacement.
  • → The brush cannot be replaced unless the AC adapter is unplugged.

This tip cleaner can be attached to HAKKO iron holders HAKKO FH-101, FH-200 and FH-201.

This tip cleaner can be attached to any of the above 3 iron holders using just 2 screws. For other iron holders, this tip cleaner can be placed next to the iron holder.
