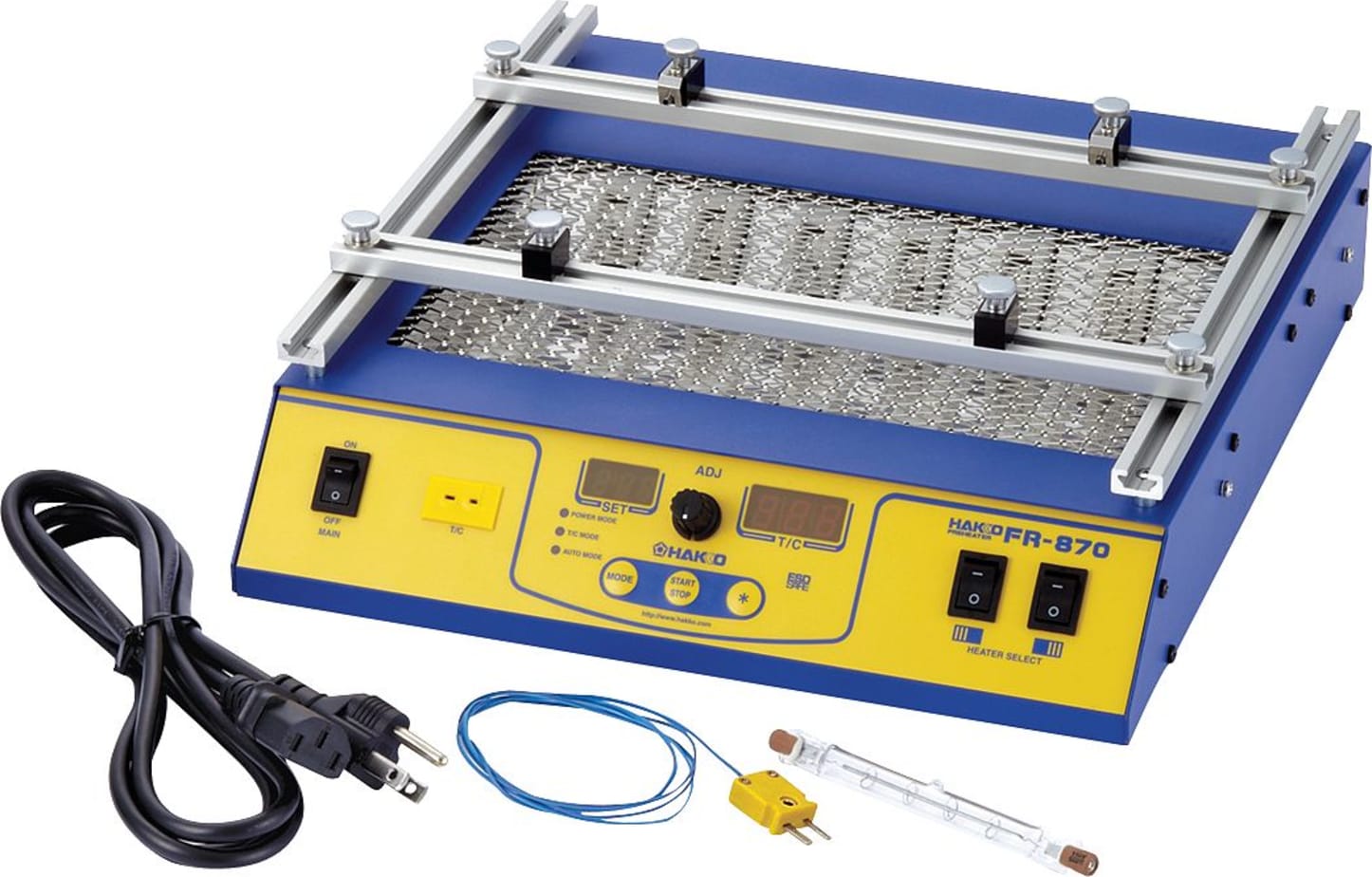

4 (1 Review) | UPC: 4962615037436 | Model: Hakko FR870-04
PREHEATER, IR, BOARD, 2-ZONE, FR-870
List Price: $1,047.97
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(3)
In Stock!
(4)
(12)
(0)
Six carbon heaters let you preheat the whole board in next to no time after turning the power on. Full-board heating and quick temperature ramping let you get the job done quickly when reworking or mounting post-production components to multilayer substrates that require greater thermal capacity. As it does not contaminate the air, the HAKKO FR-870-04 also offers powerful support for a clean workplace environment in industrial applications.

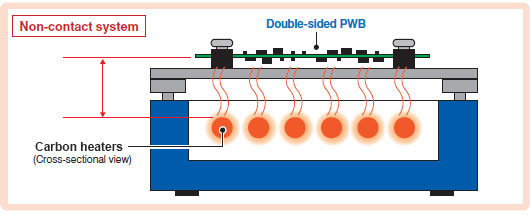

Non-contact system allows preheating of double-sided boards, which hot plates cannot handle.
Auto mode step-heating method (maximum of three steps/step 1-3) heats PWBs slowly and evenly, letting you transmit 100% of the heat energy from a rework system and soldering iron. You'll never be forced to work with a higher set temperature due to insufficient heat again.
Once a PWB is positioned, boards of the same dimensions can be removed or attached in a single motion.
This design greatly facilitates continuous work.
* Weight (w/o cord)
* Lamp life is provided for reference purpose only and is not guaranteed.
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
Works well for mid-sized boards
4.0
I found this pre-heater works well for medium sized boards best, anything from approximately 4x4 to 4x8. Small boards are difficult to keep fixtured. I like the temperature control mode.
Verified Purchase winchmonkey on May 30, 2015 I found this helpful (0)
