Hakko FR811-SET-OB Desoldering Equipment/Rework Stations - Functionality (Soldering Equipment): Hot Air, Channels: 1, Display Type: Digital

Name: Hakko FR811-SET-OB Desoldering Equipment/Rework Stations - Functionality (Soldering Equipment): Hot Air, Channels: 1, Display Type: Digital
Brand: Hakko
SKU: HakkoFR811-SET-OB
Price: 5479.00 USD
Availability: InStock

0 reviews | Catalog: FR811-SET-OB | UPC: 641328071589 | Model: Hakko FR811-SET-OB

Images (6) | Videos (1)

Compare

SYSTEM, SMD, REWORK, w/C5016+C5027+C5029+999-267, FR-811 - <span style="color:#FF0000;"><strong>Used briefly for demo. All parts included.</strong></span>

The HAKKO FR-811 can be transformed into a complete SMD rework system with these added accessories:

Used briefly for demo. All parts included.
C5016 bottom heater, which integrates with and is fully controlled by the FR-811 allowing it to be incorporated into the various heating profiles set by the FR-811
C5027 board holder
C5029 handpiece fixture

View Product Details

List Price: $5,767.37

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Hakko FR811-SET-OB

R&R Lotion ICL-8-ESD I.C. Hand Lotion, ESD-Safe, Lightly Fragranced, 8oz, Static...

Catalog: ICL-8-ESD

(0)

In Stock!

Add to Cart

Chip Quik SMD291 Tack Flux no clean in a 10cc syringe w/plunger And tip

Catalog: SMD291

(5)

In Stock!

Add to Cart

MicroCare MCC-CBCSK Cleaning Station Kit, TriggerGrip Tool, Bench Mount, Flux Remover,...

Catalog: MCC-CBCSK

(0)

In Stock!

Add to Cart

MicroCare MCC-FRC General Purpose Flux Remover, Flux Remover C

Catalog: MCC-FRC

(0)

In Stock!

Add to Cart

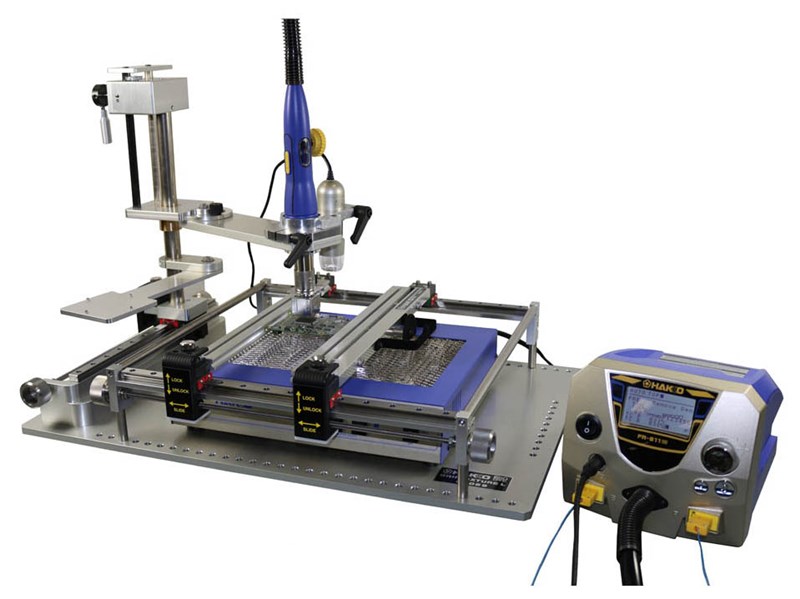

Hakko FR811-SET Complete SMD Rework System

A complete, economical SMD rework system with handpiece fixture, board holder and vision system

The HAKKO FR-811 can be transformed into a complete SMD rework system with these added accessories:

C5016 bottom heater, which integrates with and is fully controlled by the FR-811 allowing it to be incorporated into the various heating profiles set by the FR-811
C5027 board holder
C5029 handpiece fixture

These added accessories add functionality and features that provide stabilization for accuracy when reworking small or difficult components.
The C5027 board holder and C5029 handpiece fixture feature a "one-touch" slide adjustment for quick and easy adjustments, and knobs for fine x-y adjustments.

For smaller components, the FR811-SET also includes the HAKKO Basic Vision Kit (PN: 999-267) that incorporates a Dino-Lite microscope camera for visual alignment (attachment bracket to the C5029 handpiece fixture included.)

For features and benefits of the FR-811 SMD rework system, see part number FR811-04.

FR-811 SMD Hot Air Rework System
Input Voltage	120 VAC 50/60 Hz
Power Consumption	820W
Heater Power Consumption	790W
Airflow Source	Turbine
Airflow Capacity	1 - 100% (MAX. 115L/min)
Temperature Range	50°C - 600°C (120°F - 1120°F)
Thermocouple Inputs	2 - Type K
External Connections	1 - USB - A ; 1 - USB Mini B
Operating Modes	Manual or Automatic
Memory	50 x 6 Stage + Preheat
Process Control	Password Lockout
Handpiece Length (w/o cord)	250 mm (9.8 in.)
Handpiece Weight (w/o cord)	180 g (0.40lb.)
Station Dimensions	160(W) x 145(H) x 220(D) mm (6.3 x 5.7 x 8.7 in.)
Station Weight	1.5 kg (3.3 lb.)
ESD Safe	Yes
Safety Approval	MET
C5016 Bottom Preheater
Input Voltage	120 VAC 50/60 Hz
Power Consumption	730W
Effective Heater Area	190 x 80 mm (7.5 x 3.2 in.)
Board Capacity	248 x 140 mm (9.8 x 5.5 in.)
Heating Zones	2
Operating Modes	Power/Thermocouple
T/C Range	50 - 250°C (122 – 482°F)
T/C Stability	±5°C (±9°F)
Power Range	1 – 100% (1% increments)
Heater Control	Requires FR-811
Heater Type	High Efficiency Carbon Filament
Heater Lamp MTBF	Approx. 2100 hours
External Connection	4-pin DIN for FR-811 ONLY
Dimensions (W x H x D)	295 x 66 x 246 mm (11.6 x 2.6 x 9.7 in.)
Weight	2.1 kg (4.6 lbs.)
ESD Safe	Yes
Safety Approval	MET
C5027 Board Holder
Max Board Width	260 mm (10.2 in.)
Dimensions (W x H x D)	413 x 126 x 363 mm (16.3 x 5.0 x 14.3 in.)
Weight	2.5 kg (5.5 lb.)
ESD Safe	Yes
C5029 Rework Fixture
Reach	131 mm (5.15 in.) Max
Z-axis Stroke	120 mm (4.7 in.)
Arm Position	Adjustable through 180°
Dimensions (W x H x D)	582 x 491 x 361 (22.9 x 19.3 x 14.2 in.)
Weight	(L) 8.89 kg (19.6 lbs.)
ESD Safe	Yes
999-267 Vision Kit
Connection	USB 2.0
Magnification Range	10X - 50Xm 230X
Resolution	640 x 480 pixels
Image Size	0.3 MP
Video Frame Rate	30 FPS (Max)
Dimensions	2.6 x 4.5 x 3.3 in. (66 x 115 x 83.5 mm)
Weight	0.5 lb. (0.23 kg)

Tech Specs

Desoldering Equipment / Rework Template
Functionality (Soldering Equipment)	Hot Air
Channels	1
Display Type	Digital
Power Supply Voltage	120V 50/60 Hz
General Attributes
Product Height	30.00 IN
Product Length	21.00 IN
Product Width	24.00 IN
Shipping Height	30.00 IN
Shipping Length	21.00 IN
Shipping Width	24.00 IN
Country of Origin	Japan
