Advanced SMD Rework Station

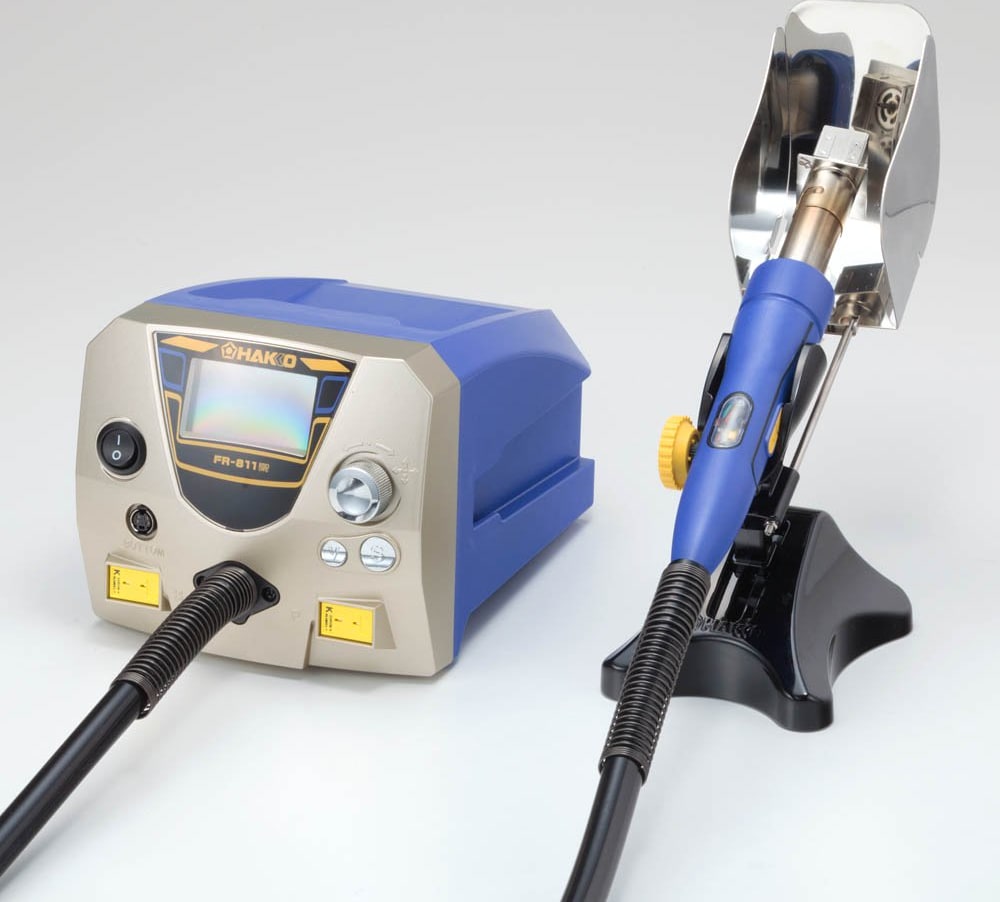

The HAKKO FR-811 SMD Hot Air Rework System is an advanced SMD rework station with vacuum pickup and a multitude of features for every need.
The FR-811 contains dual thermocouple inputs for part and board monitoring, PC integration via USB port with Hakko software, an additional external USB port for flash drive memory for storage of profiles, onboard storage of up to 50 profiles, manual and auto modes, auto teach mode for profiling, password lockout, and more.
- New graphic interface display and navigation system that simplifies operation
- Dual T/C inputs allow users to monitor part and board temperatures while controlling the ramp rate for a safe, accurate and repeatable process.
- Automatic mode gives users the ability to fully program profiles with up to 6 stages
- Onboard storage of up to 50 profiles with an external USB port for flash drive memory for storage of profiles
- A dedicated USB port can also be used to integrate the FR-811 with a PC using the included software -- Note: Software is compatible with Windows 7 through Windows 10.
- Integrated vacuum pickup with a visual indicator in the handpiece that indicates when the component has been completely reflowed
