Advanced SMD Hot Air Rework System

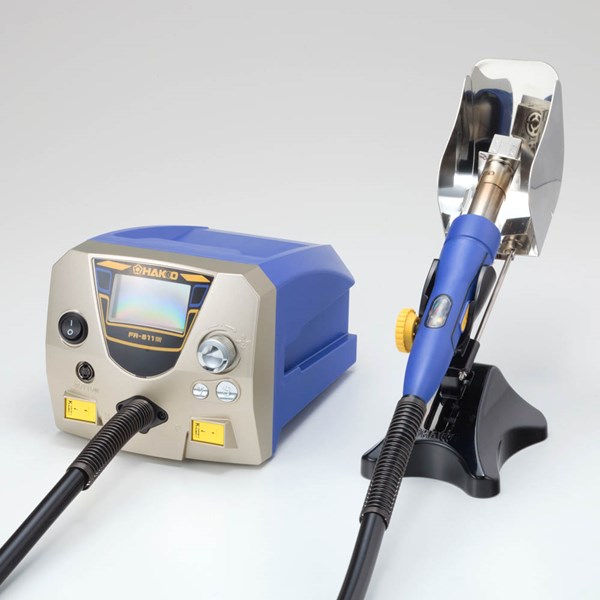

Hakko FR-811
The FR-811 is a complete SMD rework system, featuring dual thermocouple inputs for port and board monitoring, PC integration via USB port with Hakko software, additional USB port for flash memory of storage of profiles, onboard storage of up to 50 profiles, manual and auto modes, auto teach mode for profiling, password lockout, fully integrated and controlled preheater with HECF lamps, board holder that is designed for most PCBs under 16x16 inches, a rework fixture with Manual Z and Theta, a swing arm that positions and stops for easy and repeatable setup, and lots more!

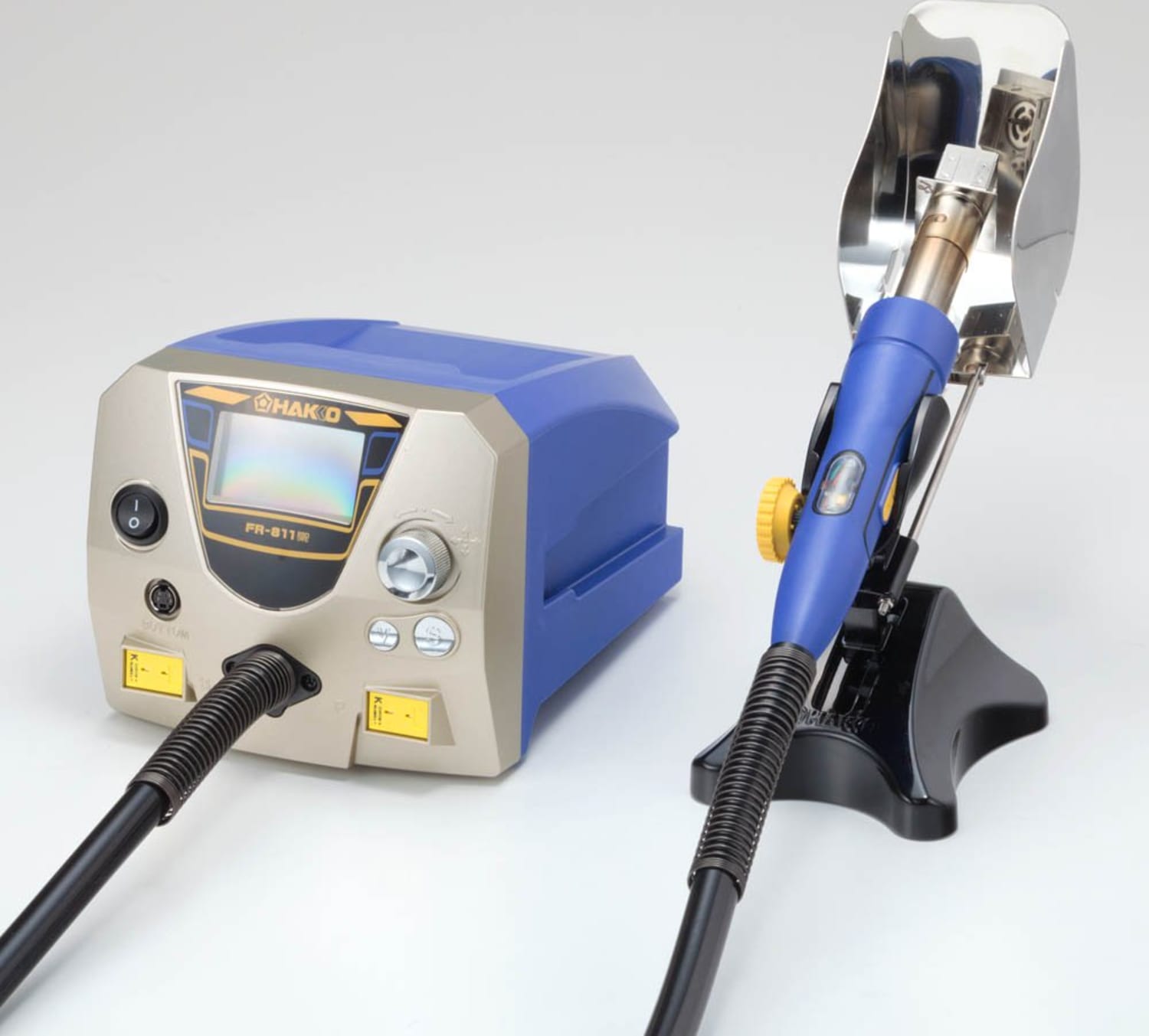

![FR811-04_tn]()
|
- New graphic interface display and navigation system that simplifies operation
- Dual T/C inputs allow users to monitor part and board temperatures while controlling the ramp rate for a safe, accurate and repeatable process
- Automatic mode gives users the ability to fully program profiles with up to 6 stages
- Onboard storage of 50 profiles with a USB port available for flash memory storage of profiles
- A dedicated USB port can also be used to integrate FR-811 with PC using the included software
- Integrated vacuum pickup with visual indicator built-in to the handpiece
|
Combine the optional C5016 bottom heater, which integrates with and is fully controlled by the FR-811, with the C5027 board holder, C5028 or C5029 handpiece fixture and the 999-267 vision kit, and the FR-811 transforms into a complete and economical SMD rework system that is ideal for bottom terminated components.
NOTE: The HAKKO FR-811 is compatible with older generations of nozzles from the FR-801, FR-802 and FR-803B hot air stations. An adapter is not required to use the older nozzles.
