The FR-810 Hot Air Rework Station sets a new bar for convective rework. The new, lightweight design features a quiet self-contained air supply capable of delivering approximately 100 L/min (free flowing). The new heating element design improves durability and provides a top end temperature of 600°C. New N51 Series Quick Change nozzles allows for tool-free installation and removal and the integrated holder provides an automatic safety cool down when the handpiece is not in use.
The digital operation of the HAKKO FR-810 provides greater flexibility and security. The settings of the station can be locked out by password providing process control of the station, and you can now store up to 5 presets for temperature, airflow, and new to the hot air stations – Time! The built-in timer function is very useful in providing a more repeatable process while using the station. This also allows us to add a new Chain Preset feature where you can link together up to 5 presets to run in sequence, simulating a 5-heating zone reflow profile for SMD components.
Turbine powered digital SMD hot air rework station for a various kinds of boards

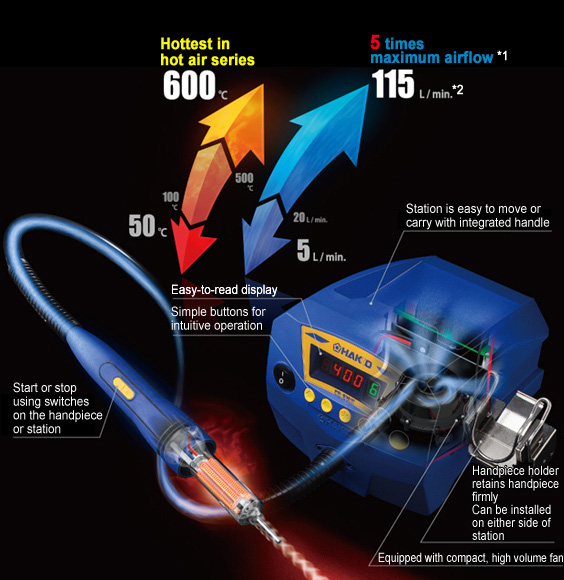

High volume airflow and high output for a various kinds of rework
Fine setting can be arranged for various types of boards due to wide range of temperature and airflow.
The FR-810 makes it possible to supply hot air with high volume airflow and high output when repairing heavy duty boards. And just the right airflow and high output can be set for high density boards with fine components.
Together with digital control, this creates the ideal worksite and the workpiece, and improves rework efficiently.
![Hakko_FR810_High_volume_airflow_and_high_output_for_a_various_kinds_of_rework]()
*1 Compared to previous HAKKO model
*2 Differs according to nozzle shape

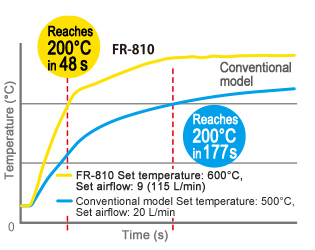

Efficiency improvement
The FR-810’s high volume airflow and high output make it possible to perform the same work in only one-third of the time required when using a conventional model.
This reduces the thermal impact on boards and components.
![Hakko_FR810_Efficiency_improvement]()
*Examination of time taken for connector sections soldered onto a ceramic board to be heated to 200 °C with maximum temperature and airflow settings selected. Single nozzles with an approximately 4mm diameter were used.
Use conventional HAKKO nozzles by attaching included conversion adapter
To use HAKKO FR-810 with a conventional HAKKO nozzle, attach the included conversion adapter.
Purchasing a conversion adapter for each different type of nozzle will help make work more convenient.
*Conventional nozzles refer to the optional nozzles for use with HAKKO FR-801/802/803B.
Simple nozzle removal and easy maintenance
Nozzle can be changed quickly when working with a wide range of components. Conventional HAKKO nozzles can be used by using a special conversion adapter (option).
Heater replacement is also simple.
Quick-change N51 nozzles
![Hakko_FR810_Quick-change_N51_nozzles]()
Simple, tool-free removal and attachment. |
Simple heater replacement
![Hakko_FR810_Simple_heater_replacement]()
Simply remove four screws to replace heater.
|
Full digital control of temperature, airflow, and time
Timer function
A new timer function allows for repeatably consistent work times. This can help to prevent parts from overheating and can improve the overall quality of your work.

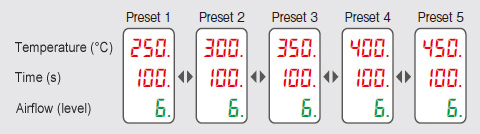

Preset mode
Preset mode allows you to change the settings easily to suit a variety of boards and workpieces. (You can program temperature, time and airflow settings for up to five presets) Simply switch to the desired setting for variety of jobs.
![Hakko_FR810_Preset_mode]()

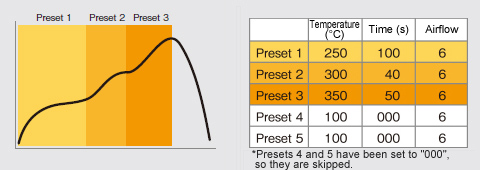

Chain Presets function
The Chain Presets function allows you to create a simple temperature profile by combining settings registered in preset mode. (Up to five steps can be created).
It also supports sophisticated removal work, and significantly improves efficiency.
![Hakko_FR810_Chain_Presets_function]()
Auto sleep and auto shutoff features
![Hakko_FR810_Auto_sleep_and_auto_shutoff_features]()
To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function is activated and it starts cooling automatically.
If the handpiece has not been removed from the handpiece holder (Ex. Using it in a rework fixture) and after it has been idle for 30 minutes, auto shutoff function is activated. It is automatically powered off.
Access to settings can be restricted via the password function for easy management.

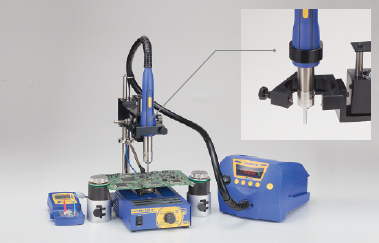

Create a low-cost repair system with a rework fixture
Using the optional fixture adapter allows you to also attach the handpiece to the rework fixture (C1392B).
![Hakko_FR810_Create_a_low-cost_repair_system_with_a_rework_fixture]()
