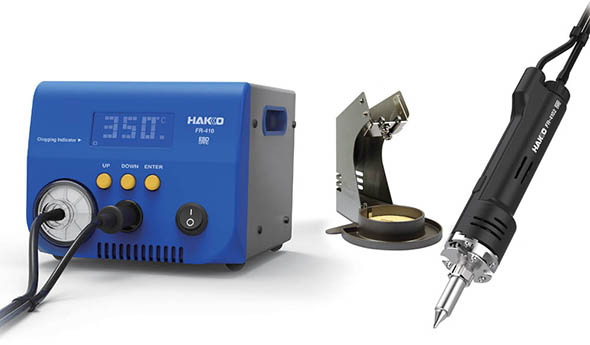

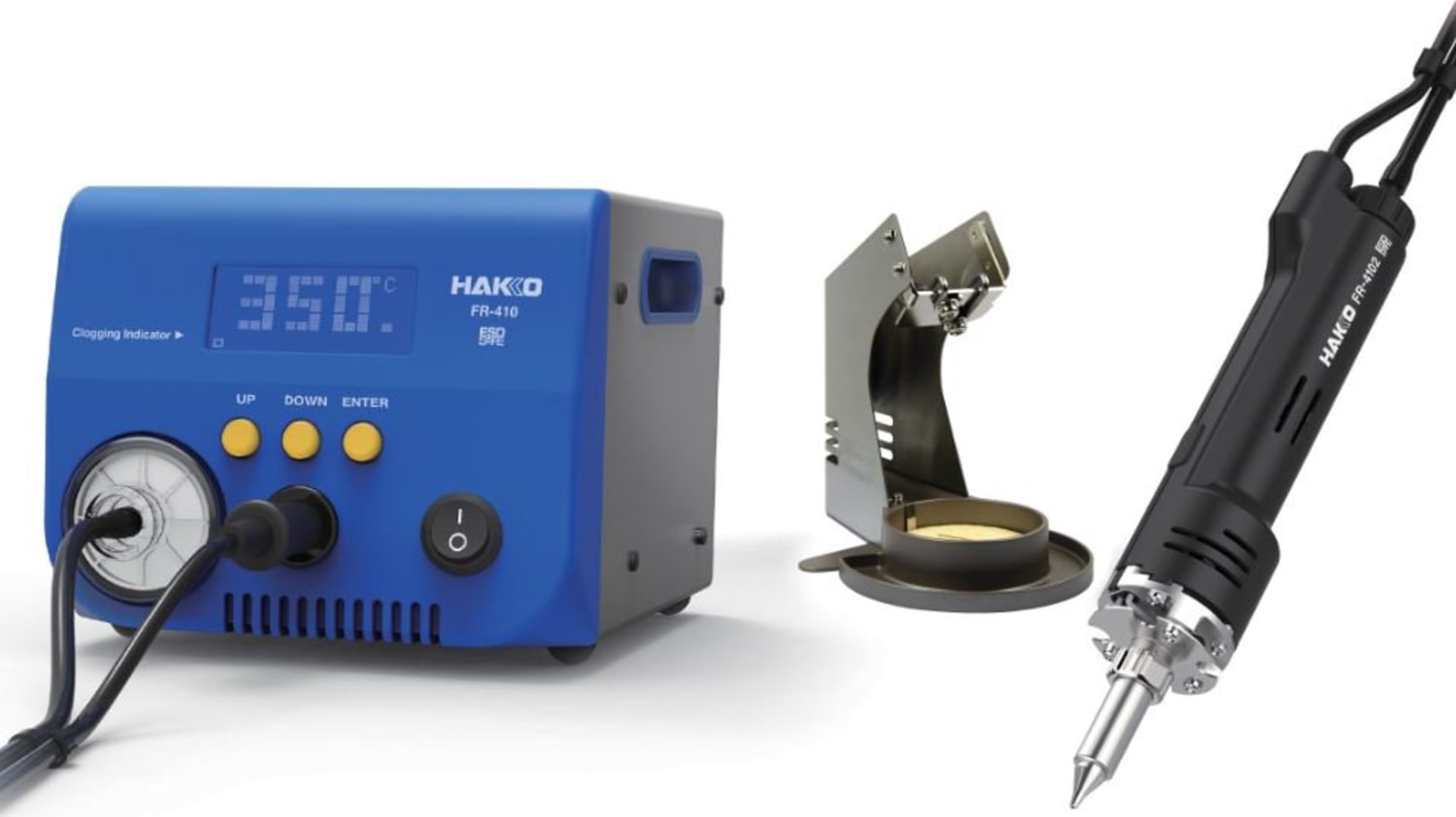

Hakko FR410-03 - High Power Desoldering Station with Pencil-Style Desoldering Tool
Hakko FR410-03
- High power desoldering station
- Pencil style handpiece
- 140 watts of power
- 24 in. Hg maximum vacuum
- Uses N61 nozzles
The Hakko FR410 is a high power desoldering station with many unique features to make it user friendly and increase efficiency. This station usesthe N61 nozzle, a new product, designed to tackle the latest challenges presented in modern electronics.
More Heating Power
Delivering nearly three times more heating power than previous models, the FR410 is excellent for desoldering components on multi-layer circuit boards, including those with difficult to reach areas and narrow spaces.
Strong and Consistent Vacuum
Suction starts 2/10 of a second after the trigger is pulled on the desoldering handpiece - this allows for a buildup of vacuum, which is then applied to the solder joint for instant high power vacuum and complete desoldering. An improved heater core allows increased heating at the back end of the heating core, ensuring molten solder is sucked into the filter pipe. After releasing the trigger the pump continues to run for an extended period of time, so that residual solder in the heater core is sucked all the way into the filter.
![strrong_and_consistent_tn]()
User Friendly Control Screen
The FR410 has a large, easy to read LCD with temperature display, as well as a vacuum indicator that indicates both vacuum level and when it is time to change the filter.
![suction1_tn]()
Suction with no clogging
|
![suction2_tn]()
Suction with clogging
|
Newly Designed Nozzles
This system uses the N61 nozzle, available in many different shapes and sizes. These newly designed nozzles make it possible to desolder in a variety of applications, with over 20 models to choose from.
![Hakko_FR410-02_Image-8_tn]() "SS" type nozzles for micro land patterns
Close-fitting nozzles on micro land patterns for reliable desoldering.
|
![Hakko_FR410-02_Image-7_tn]() "Long" type nozzles for narrow space
Use slim and long nozzles for difficult to reach components in a narrow spaces.
|
![Hakko_FR410-02_Image-9_tn]() "Oval" shape nozzles for flat type terminals
Nozzles match shape of land for thorough desoldering, eliminating residual solder.
|
Maintenance is Easy
The FR410 features easy replacement of nozzles and heaters, as well as a large transparent filter which enables quick, visual examination. It also includes a basic maintenance kit with an assortment of tools to keep your desoldering nozzles and heater in proper working condition.
