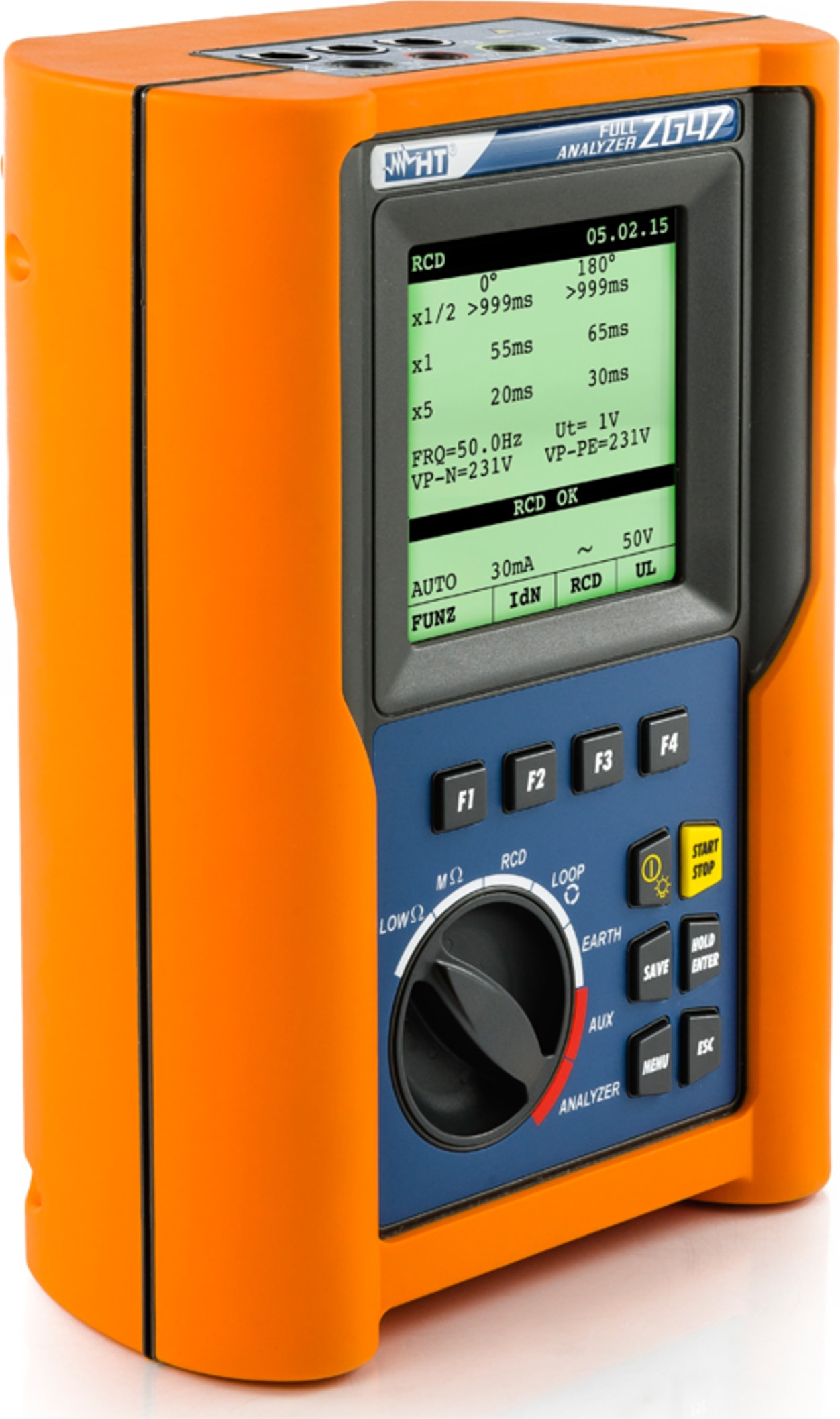

HT Instruments ZG47 3 Phase Power Analyzer with Earth Ground Testing

Name: HT Instruments ZG47 3 Phase Power Analyzer with Earth Ground Testing
Brand: HT Instruments
SKU: HT InstrumentsZG47
Price: 2995.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: HT Instruments ZG47

Images (7)

Compare

Multifunction instrument WITH a0053 60hZ/110V

ZG47 3 Phase Power Analyzer with Earth Ground Testing
This unit was also sold as the Amprobe DM-III FLEX under the Amprobe name
Continuity of earth conductors with 200mA
Insulation resistance with test voltage of 50, 100, 250, 500, 1000V DC
Trip out time and trip out current of RCD type A, AC Stabdard and Selective
Line/Loop impedance with at high resolution (with optional accessory IMP57)
Prospective short circuit current calculation
Earth resistance with 2-wire and 3-wire methods
Earth resistivity with 4-wire method
Global earth resistance without RCD tripping
Phase sequence indication
TRMS measurement and recording electrical parameters
Harmonic analysis of voltages/currents up to 49th order + THD% calculation
Voltage anomalies (sags, swells) recording with 10ms resolution
Measurement and recording of environmental parameters
Measurement and recording of leakage currents (with option clamp HT96U)
Memory for saving data and recordings
Optical / USB interface
Made in Italy

View Product Details

List Price: $2,995.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the HT Instruments ZG47

HT Instruments A0050 Power supply 230V / 50-60Hz EU plug

Catalog: A0050

(0)

In Stock!

Add to Cart

HT Instruments C2033X 3-banana (black/blue/green) to Shuko plug cable

Catalog: C2033X

(0)

In Stock!

Add to Cart

HT Instruments CN0050 Free hands kit

Catalog: CN0050

(0)

In Stock!

Add to Cart

HT Instruments BORSA2051 Carrying bag

Catalog: BORSA2051

(0)

In Stock!

Add to Cart

HT Instruments VA500 Hard carrying case

Catalog: VA500

(0)

In Stock!

Add to Cart

HT Instruments VA501 Hard carrying case

Catalog: VA501

(0)

In Stock!

Add to Cart

HT Instruments HP30C2 Transducer for AC currents 0 200 - 0 2000 A AC

Catalog: HP30C2

(0)

In Stock!

Add to Cart

HT Instruments HP30C3 Transducer for AC currents 0 3000 A AC

Catalog: HP30C3

(0)

In Stock!

Add to Cart

HT Instruments HT4005N Transducer for AC currents 0 5 - 0 100 A AC

Catalog: HT4005N

(0)

In Stock!

Add to Cart

HT Instruments HT97U Transducer for AC currents 0 10 - 0 100 - 0 1000 A AC

Catalog: HT97U

(0)

In Stock!

Add to Cart

HT Instruments IMP57 High resolution impedance measurements adapter

Catalog: IMP57

(0)

In Stock!

Add to Cart

HT Instruments 1066-IECN Black connector for extensions (4mm banana)

Catalog: 1066-IECN

(0)

In Stock!

Add to Cart

HT Instruments 606-IECN (1) Magnetic adapter for connection to screw heads

Catalog: 606-IECN

(0)

In Stock!

Add to Cart

HT Instruments KITTERRNE Carrying case containing 4 banana-banana cables and 4 earth rods

Catalog: KITTERRNE

(0)

In Stock!

Add to Cart

HT Instruments TOPVIEW2006 Software on CD-ROM and optical-to-USB connection cable C2006

Catalog: TOPVIEW2006

(0)

In Stock!

Add to Cart

HT Instruments HT52/05 Transducer for temperature/humidity measurements - with...

Catalog: HT52/05

(0)

In Stock!

Add to Cart

ZG47 3 Phase Power Analyzer with Earth Ground Testing.

Continuity of earth conductors with 200mA

Insulation resistance with test voltage of 50, 100, 250, 500, 1000V DC

Trip out time and trip out current of RCD type A, AC Standard and Selective

Prospective short circuit current calculation

Earth resistivity with 4-wire method

Earth resistance with 2-wire and 3-wire methods

HT Instruments ZG47 3 Phase Power Analyzer with Earth Ground Testing

Multifunction device for verification of electric safety and mains analysis on single-phase and three-phase installations

ZG47 is the complete and versatile multifunction device developed starting from real installation needs.
In a single device, all functions of the most advanced systems for safety testing (standards CEI 64.8) developed by HT; possibility of carrying out mains analyses, THREE-PHASE or SINGLE-PHASE (voltages, currents, powers, power factor, energies, etc.), voltage/current harmonic analysis (up to the 49th) and an analysis of the anomalies on power supply voltages (dips, peaks). The device has a whole variety of functions and can be used with external feelers for measuring environmental parameters such as temperature/humidity of air, illuminance (Lux) further to measuring leakage currents, Loop/Line impedance and calculating the assumed short-circuit current with high resolution (0.1mOhm) in TN systems with the use of the optional accessory IMP57. Cutting-edge management of measurement with indication, at the end of each safety test, of compliance or non-compliance with requirements with simple symbols OK or NOT OK.

DISPLAY DESCRIPTION
The display is a graphic module with a resolution of128 x 128 pixels The first line of the display shows date and time. If not correct, you can set the exact ones according to the procedure described

On the top right corner of the display you can always see the battery indicator and, if the external power supply adapter (code A0050) is connected, the corresponding symbol.

These symbols will be omitted in the following illustrations.

INITIAL SCREEN
When turning on the instrument by pressing ON/OFF, this screen will appear for a few seconds:
Here you can see:

serial number of the instrument (SN.:)
firmware software release (V.X.XX:)
transmission speed through serial RS232 (Baud Rate)
calibration date (CALIBRATION:)

BACKLIGHT FUNCTION
When instrument is turned on, pressing briefly the ON button, the backlight will be enabled. The light will be automatically turned off after 5 seconds. If the batteries are too low the instrument will disable automatically the backlight function.

INITIAL SETTINGS
By pressing the MENU key the following screen will be displayed:
It’s not possible to enter the MENU during a recording or a Real Time Energy measurement. Pressing this button during a recording the display will show main recording parameter.

Cable 3 wires with a standard NEMA plug
Set 4 cables + 4 alligator clips + 2 test leads
Set 4 cables + 4 metal probes
Flexible clamp 3000A AC, diameter 174mm, 3 pcs
External adapter 120V to 12 VDC. and a standard NEMA plug
Windows software + optical/USB cable C2006
Soft carrying bag
ISO9000 calibration certificate
User manual
Add a Hard Case (VA500) for $ 195 (optional).

HT Instruments SZG47 3 Phase Power Analyzer with Earth Ground Testing Specifications
1. ELECTRICAL SPECIFICATIONS – VERIFY TESTS
Accuracy is indicated as ± (% readings + no. of digits) at 23°C ± 5°C, con relative humidity <60%HR
Continuity test on protective and equalizing conductors
Range [Ω]	Resolution [Ω]		Accuracy
0.01 ÷ 9.99	0.01		±(2.0%rdg + 2dgt)
10.0 ÷ 99.9	0.1
Test current	> 200mA DC for R=5Ω (included calibration) ; Resolution on current : 1mA
Open-circuit voltage	4V = V 0 = 24V DC
Insulation Resistance (DC voltage)
Test voltage [V		Range [MΩ]	Resolution [MΩ]	Accuracy
50		0.01 ÷ 9.99	0.01	±(2.0%rdg + 2dgt)
		10.0 ÷ 49.9	0.1
		50.0 ÷ 99.9		±(5.0%rdg + 2dgt)
100		0.01 ÷ 9.99	0.01	±(2.0%rdg + 2dgt)
		10.0 ÷ 99.9	0.1
		100.0 ÷ 199.9		±(5.0%rdg + 2dgt)
250		0.01 ÷ 9.99	0.01	±(2.0%rdg + 2dgt)
		10.0 ÷ 199.9	0.1
		200 ÷ 249	1
		250 ÷ 499		±(5.0%rdg + 2dgt)
500		0.01 ÷ 9.99	0.01	±(2.0%rdg + 2dgt)
		10.0 ÷ 199.9	0.1
		200 ÷ 499	1
		500 ÷ 999		±(5.0%rdg + 2dgt)
1000		0.01 ÷ 9.99	0.01	±(2.0%rdg + 2dgt)
		10.0 ÷ 199.9	0.1
		200 ÷ 999	1
		1000 ÷ 1999		±(5.0%rdg + 2dgt)
Open-circuit voltage	<1.3 x nominal test voltage
Short circuit current	<6.0mA at 500V test voltage
Nominal test current	>2.2mA on 230kΩ load (500V); >1mA su 1kΩ per Vnom (others)
Measurement limits fitted	0.05, 0.10, 0.23, 0.25, 0.50, 1.00, 100MΩ
RCDs Tripping time (type A, AC, General and Selective)
Range [ms]		Resolution [ms]	Accuracy
½ Idn, Idn	1÷999	1	(2.0%rdg + 2dgt)
2 Idn	1÷200 general 1÷250 selective
5 Idn	1÷ 50 general 1÷160 selective
Nominal trip-out currents	10mA, 30mA, 100mA, 300mA, 500mA
Phase-PE voltage	100V ÷ 265V
Frequency	50Hz ± 0.5Hz
RCDs Tripping current (type A, AC, General and Selective)
RCD type	Idn	Range Idn [mA]	Resolution [mA]	Accuracy Idn
AC	Idn = 10mA	(0.5 ÷ 1.4) Idn	0.1 I ΩN	-0%, +(10%Idn)
A		(0.5 ÷ 2.4) Idn
AC	Idn > 10mA	(0.5 ÷ 1.4) Idn
A		(0.5 ÷ 2.0) Idn
Contact voltage
Range [V]	Resolution [V]		Accuracy
0 ÷ 2Utlim	0.1		-0%, +(5.0% rdg + 3dgt)
Utlim (Ul)	25V , 50V
Line Impedance (Phase-Phase)
Range [Ω]	Resolution [Ω]		Accuracy (*)
0.01 ÷ 9.99	0.01		±(5.0% rdg + 3dgt)
10.0 ÷ 199.9	0.1
(*) 0.1 mΩ on range 0.0 ÷ 199.9 mΩ (with IMP57 optional accessory)
Maximum peak current	3.65A (at 127V); 6.64A (at 230V); 11.5A (at 400V)
Test voltage	100÷265V (Phase-Neutral) / 100÷460V (Phase-Phase); 50Hz ± 0.5Hz
Fault Loop Impedance (Phase-Ground, Phase-Neutral)
Range [Ω]	Resolution [Ω]		Accuracy (*)
0.01 ÷ 19.99	0.01		±(5.0% rdg + 3dgt)
20.0 ÷ 199.9	0.1
200 ÷ 1999	1
(*) 0.1 mΩon range 0.0 ÷ 199.9 mΩ (with IMP57 optional accessory)
Maximum peak current	3.65A (at 127V); 6.64A (at 230V)
Test voltage	100÷265V (Phase-Ground); 50Hz ± 0.5Hz
Fault Loop Resistance R A without RCDs tripping
Range [Ω]	Resolution [Ω]		Accuracy
1 ÷ 1999	1		-0%, +(5.0% rdg + 3dgt)
Test current	0.5 I_N set on Ut test 15mA on Ra15mA test
Earth Resistance with rods
Range [Ω]	Resolution[Ω]		Accuracy
0.01 ÷ 19.99	0.01		±(5.0%rdg + 3dgt)
20.0 ÷ 199.9	0.1
200 ÷ 1999	1
Test current	<10mA – 77.5Hz
Open-circuit voltage	< 20V rms
Earth resistivity
Range p [Ωm] (*)	Resolution [Ωm]		Accuracy (*)
0.06 ÷ 19.99	0.01		±(5.0%rdg + 3dgt)
20.0 ÷ 199.9	0.1
200 ÷ 1999	1
2.00 ÷ 99.99k	0.01k
100.0 ÷ 125.5k	0.1k
(*) with distance d=10m
Distance range d	1 ÷ 10m
Test current	<10mA – 77.5Hz
Open-circuit voltage	< 20Vrms
Voltage (RCD, LOOP, Phase Sequence)
Range [V]	Resolution [V]		Accuracy
15 ÷ 460	1		±(3.0%rdg + 2dgt)
Frequency
Range [Hz]	Resolution [Hz]		Accuracy
47.0 ÷ 63.6	0.1		±(0.1% rdg + 1dgt)
2. ELECTRICAL SPECIFICATIONS – ANALYZER AND AUX
Accuracy is indicated as ± (% readings + no. of digits) at 23°C ± 5°C, con relative humidity <60%UR.
Range [V]		Resolution [V]	Accuracy	Input Impedance
15 ÷ 310		0.2	±(0.5% rdg + 2dgt)	300 kΩ (P-N, P-P)
310 ÷ 600		0.4
Voltage Anomalies – Single / Three phase systems (Manual range)
Range [V]	Resolution Voltage [V]	Resolution Time	Accuracy Voltage	Accuracy Time (ref. 50Hz)
15 ÷ 310	0.2	10ms	±(1.0%rdg + 2dgt)	±10ms
30 ÷ 600	0.4
Input Impedance: 300 kΩ (Phase-Neutral and Phase-Phase)
Current by external clamp transducer – STD
Range (*)	Resolution (mV)	Accuracy	Input Impedance	Overload protection
0.005 ÷ 0.26V	0.1	±(0.5%rdg + 2dgt)	200kΩ	5V
0.26 ÷ 1V	0.4
(*) Example: by using a clamp whose range is 1000A/1V, the instrument measures currents higher than 5A
Current by external clamp transducer – FlexINT (1000A AC range)
Range [A]		Voltage input	Resolution	Accuracy
10.0 ÷ 19.9		950.0µV ÷ 1.691mV	8.5µV	±(4.0% rdg + 8.5µV)
20.0 ÷ 99.9		1.7mV ÷ 8.491mV		±(1.0% rdg + 8.5µV)
100.0 ÷ 999.9		8.5mV ÷ 84.99mV		±(1.0% rdg + 85µV)
1A = 85µV ; Rinput = 400kΩ
Current by external clamp transducer – FlexINT (3000A AC range)
Range [A]		Voltage input	Resolution	Accuracy
30.0 ÷ 999.9		2.55mV ÷ 84.99mV	8.5µV	±(1.0% rdg +17µV)
1000 ÷ 3000		85.0mV ÷ 255mV	85µV	±(0.5% rdg +85µV)
1A = 85µV ; Rinput = 400kΩ
Power factor - Single / Three phase systems
Range	Resolution		Accuracy (°)
0.20 ÷ 0.50	0.01		1.0
0.50 ÷ 0.80			0.7
0.80 ÷ 1.00			0.6
Leakage curreny (by optional clamp transducer)
Range [mA]*	Resolution [mA]	Accuracy	Input Impedance	Overload protection
0.5 ÷ 999.9	0.1	±(5.0% rdg + 2dgt)	200kΩ	5V
(*) While recording the instrument stores only current values > 5mA with 1mA resolution Maximum stored value is the peak value calculated with response time of 1ms
Power – Single / Three phase systems
Measures type		Range	Resolution	Accuracy
ACTIVE POWER		100.0 ÷ 999.9W 1.000 ÷ 9.999kW 10.00 ÷ 99.99kW 100.0 ÷ 999.9kW 1.000 ÷ 9.999MW 10.00 ÷ 99.99MW 100.0 ÷ 999.9MW	0.1W 0.001kW 0.01kW 0.1kW 0.001MW 0.01MW 0.1MW	±(1.0% rdg + 2dgt)
REACTIVE POWER		100.0 ÷ 999.9VAR 1.000 ÷ 9.999kVAR 10.00 ÷ 99.99kVAR 100.0 ÷ 999.9kVAR 1.000 ÷ 9.999MVAR 10.00 ÷ 99.99MVAR 100.0 ÷ 999.9MVAR	0.1VAR 0.001kVAR 0.01kVAR 0.1kVAR 0.001MVAR 0.01MVAR 0.1MVAR
APPARENT POWER		100.0 ÷ 999.9VA 1.000 ÷ 9.999kVA 10.00 ÷ 99.99kVA 100.0 ÷ 999.9kVA 1.000 ÷ 9.999MVA 10.00 ÷ 99.99MVA 100.0 ÷ 999.9MVA	0.1VA 0.001kVA 0.01kVA 0.1kVA 0.001MVA 0.01MVA 0.1MVA
ACTIVE ENERGY (Class 2 EN61036)		100.0 ÷ 999.9Wh 1.000 ÷ 9.999kWh 10.00 ÷ 99.99kWh 100.0 ÷ 999.9kWh 1.000 ÷ 9.999MWh 10.00 ÷ 99.99MWh 100.0 ÷ 999.9MWh	0.1Wh 0.001kWh 0.01kWh 0.1kWh 0.001MWh 0.01MWh 0.1MWh
REACTIVE ENERGY (Class 3 IEC1268)		100.0 ÷ 999.9VARh 1.000 ÷ 9.999kVARh 10.00 ÷ 99.99kVARh 100.0 ÷ 999.9kVARh 1.000 ÷ 9.999MVARh 10.00 ÷ 99.99MVARh 100.0 ÷ 999.9MVARh	0.1VARh 0.001kVARh 0.01kVARh 0.1kVARh 0.001MVARh 0.01MVARh 0.1MVARh
Harmonics - Single / Three phase systems
Range	Maximum resolution		Base accuracy
DC ÷ 25 a	0.1V / 0.1 A		±(5.0% rdg + 2dgt)
26 a ÷ 33 a			±(10% rdg + 2dgt)
34 a ÷ 49 a			±(15% rdg + 2dgt)
Environmental parameters (AUX function)
Range	Resolution		Accuracy
-20°C ÷ 80°C	0.1 °C		±(2.0% rdg + 2 dgt)
0 ÷ 100% UR	0.1% UR
0.001Lux ÷ 20.00 Lux (*)	0.001 ÷ 0.02 Lux
0.1 Lux ÷ 2000 Lux (*)	0.1 ÷ 2 Lux
1 Lux ÷ 20 kLux (*)	1 ÷ 20 Lux
(*) Accuracy of HT53 luxmeter probe is according to Class AA
GENERAL SPECIFICATIONS
SINGLE/THREE PHASE RECORDING
STORED PARAMETERS	Phase and delta voltages, Phase currents, neutral current, Phase and total three phase Active, Reactive, Apparent power, Active energy (Class 2 EN61036), Reactive energy (Class 3 IEC1268), Power factor, Voltages, currents harmonics (DC,1,2,…49), Voltage anomalies (sags, swells) Predefined recordings (EN50160, Voltage anomalies, Harmonics, Start up, Power & Energy) Max selectable parameters: 63 or 3 AUX (Environmental and/or leakage) Integrated period: 5s ÷ 60min Recording autonomy: > 30 days with integrated period of 15 minutes Memory capacity: 2Mbyte
DISPLAY AND MEMORY
Features	Dot matrix with backlight
Resolution	128x128 dots
Visible area	73x73 mm
Memory	999 measures
POWER SUPPLY
Batteries	6x1.5V alkaline batteries type AA LR06
External power supply adapter	230V/50Hz – 12VDC (AUX e ANALYZER functions only)
PC INTERFACE
PC connection	optical / USB optoinsulated (with cable C2006)
Connection with Bluetooth™	about 10m distance range
MECHANICAL FEATURES
Dimensions	225 (W)x165(L)x105(H) mm
Weight (included batteries)	1.7kg
WORKING ENVIRONMENTAL CONDITIONS
Reference temperature	23°C ± 5°C
Working temperature	0° ÷ 40°C
Allowed relative humidity	< 80% HR
Storage temperature	-10 ÷ 60°C
Storage humidity	< 80% HR
REFERENCE STANDARDS
Safety test on plants	IEC/EN61557, VDE0100, IEC 60364
Insulation test on switchboards	IEC/EN60439-1
Active energy static counters for AC current	EN61036 (Class 2)
Reactive energy static counters for AC current	IEC1268 (Class 3
SAFETY
Safety of measuring instruments	IEC/EN61010-1 + A2(1997)
Insulation	double insulation
Pollution degree	2
Measurement category	CAT III 600V (among inputs) CAT III 300V (to ground)
Max altitude of use	2000m

Tech Specs

Power Measurement/Power Quality Analyzer Template
Type (Power Quality)	3 Phase
Apparent Power (VA)	Yes
Reactive Power (VAR)	Yes
Measurement Frequency (Power Quality)	50 Hz
Display (Power Quality)	Digital
Energy	Yes
Power Factor (Power Quality)	Yes
Harmonics	Yes
Maximum Harmonics Range	49
CAT Rating	III
CAT Voltage Rating (V)	300V, 600V
Test Equipment General Attributes
Safety Approval	CE
Product Weight	1.7 KILOS (3.75 LBS)
Product Height	105 MM (4.13 IN)
Product Length	165 MM (6.50 IN)
Product Width	225 MM (8.86 IN)
Battery Type	AA
Power Supply Voltage	Battery Powered
Country of Origin	Italy
Shipping Height	14.20 IN
Shipping Length	18.55 IN
Shipping Width	7.25 IN

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Better than the DM-III

5.0

I had used the Amprobe DM-III a while back. They cancelled the product and I found this one and was told it was made by the same people who made the Amprobe Unit.

Well it works great is cheaper and has a nice 3 year warranty.

Thom on Mar 03, 2016

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

HT Instruments ZG47 3 Phase Power Analyzer with Earth Ground Testing

Recommended for you

Accessories

for the HT Instruments ZG47

HT Instruments A0050 Power supply 230V / 50-60Hz EU plug

HT Instruments C2033X 3-banana (black/blue/green) to Shuko plug cable

HT Instruments CN0050 Free hands kit

HT Instruments BORSA2051 Carrying bag

HT Instruments VA500 Hard carrying case

HT Instruments VA501 Hard carrying case

HT Instruments HP30C2 Transducer for AC currents 0 200 - 0 2000 A AC

HT Instruments HP30C3 Transducer for AC currents 0 3000 A AC

HT Instruments HT4005N Transducer for AC currents 0 5 - 0 100 A AC

HT Instruments HT97U Transducer for AC currents 0 10 - 0 100 - 0 1000 A AC

HT Instruments IMP57 High resolution impedance measurements adapter

HT Instruments 1066-IECN Black connector for extensions (4mm banana)

HT Instruments 606-IECN (1) Magnetic adapter for connection to screw heads

HT Instruments KITTERRNE Carrying case containing 4 banana-banana cables and 4 earth rods

HT Instruments TOPVIEW2006 Software on CD-ROM and optical-to-USB connection cable C2006

HT Instruments HT52/05 Transducer for temperature/humidity measurements - with...

ZG47 3 Phase Power Analyzer with Earth Ground Testing.

Continuity of earth conductors with 200mA

HT Instruments ZG47 3 Phase Power Analyzer with Earth Ground Testing

Tech Specs

Power Measurement/Power Quality Analyzer Template

Test Equipment General Attributes

5

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
