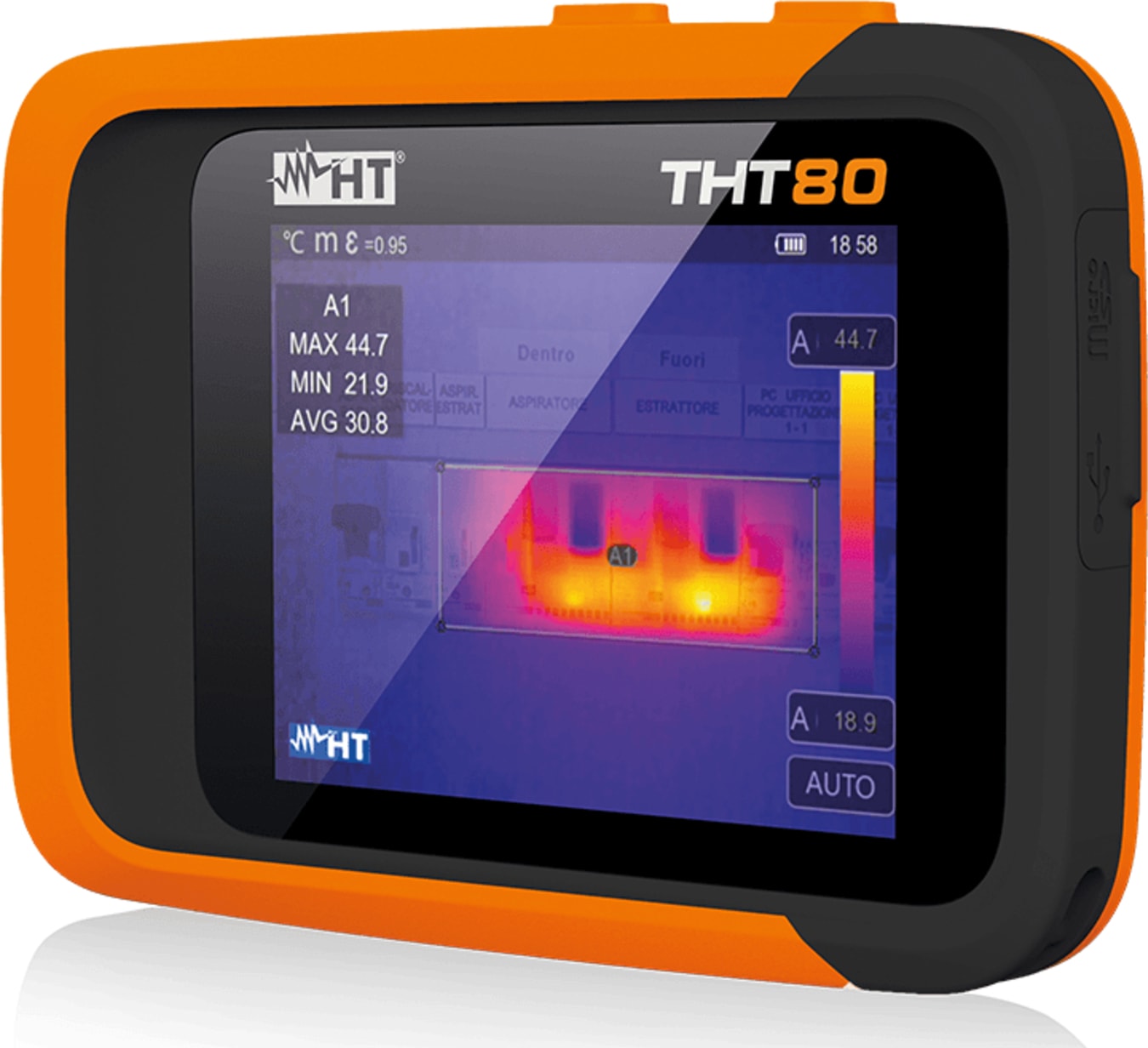

HT Instruments THT80 - Compact Thermal Camera (120x90px)

Name: HT Instruments THT80 - Compact Thermal Camera (120x90px)
Brand: HT Instruments
SKU: HT InstrumentsTHT80
Price: 995.00 USD
Availability: InStock

0 reviews | UPC: 8052870672896 | Model: HT Instruments THT80

Compare

Pocket Infrared camera, resolution 120x90, PiP, Temp 550 Degrees C with WiFi

IR resolution: 120x90 px
Temperature range: -20 – 550 C
Refresh rate: 50 Hz
Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
Field of view (FOV): 50° x 37°
Picture in Picture function
AutoFusion image enhancement
Text annotation
IR video recording
Lens: 2.3mm

View Product Details

Your Price: $995.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments THT80 Pocket Infrared camera, resolution 120x90, PiP, Temp 550 Degrees C wi ...	HT Instruments THT600 Advanced Thermal Imaging Camera with 384x288pxl - PiP and 650 Degree ...	HT Instruments THT400 High resolution 640X480pxl Infrared Camera 31.9 Degrees X25.7 Degree ...	HT Instruments THT300 Thermal Imaging Camera with 384x288pxl - PiP and 650 Degrees C max t ...	HT Instruments THT200 Thermal Imaging Camera with 160x120pxl - PiP and 650 Degrees C max t ...	HT Instruments THT100 Thermal Imaging Camera with 80x80pxl - PiP and 650 Degrees C max tem ...	HT Instruments THT500 Advanced Thermal Imaging Camera with 160x120pxl - PiP and 650 Degree ...	HT Instruments THT500H High-temperature Advanced Thermal Imaging Camera with 160x120pxl - ...	HT Instruments THT600H High-temperature Thermal Imaging Camera with 384x288pxl and 1200 De ...	HT Instruments THT600L Advanced Thermal Imaging Camera with Telelens FOV 9,8 Degrees X7,3 ...	HT Instruments THT8 Smart Infrared Camera, resolution 120x90, temp 400 Degrees C with USB ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments THT80

IR resolution: 120x90 px
Temperature range: -20 – 550 C
Refresh rate: 50 Hz
Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
Field of view (FOV): 50° x 37°

Compact Thermal Camera (120x90px)

THT80 is the new compact professional thermal camera equipped with a high resolution 120x90pxl IR sensor, a measuring range of -20°C ÷ 550°C and a field of view of 50° x 37° which makes it suitable for use in frequent hydraulic, mechanical or electrical maintenance.

It is also equipped with the AutoFusion function and a large color display with high brightness capacitive touch-screen, for immediate use, as well as being usable through the new and convenient HT Pro Camera application.

Tech Specs

Test Equipment General Attributes
Interfaces I/O	USB-C
Storage	Micro SD
IP Rating	IP54
Product Weight	200 GRAMS (0.441 LBS)
Product Height	24 MM (0.945 IN)
Product Length	133 MM (5.24 IN)
Product Width	87 MM (3.43 IN)
Shipping Weight	1.11 LBS
Battery Type	Li-ion
Power Supply Voltage	Battery Powered
