Wire Mapper Tester for LAN network with Length Measurement

QUICKLAN6050 perform quickly wire mapping test and length measurements on LAN networks twisted pair cables (UTP, STP, FTP type) with RJ45 connector according to EIA/TIA 568B. It signals eventual wrong connections (crossed, split, inverted couples, etc...), it can detect problems of the cable itself (open circuits, short circuits) and save results inside internal memory. HT6050 can perform test also on BNC coax cables.

By using up to 4 numbered remote units it’s also possible to quickly detect the connection between the RJ45 sockets located in the working rooms and the ones located on the transposition panel or on the HUB.

QuickLAN 6050 is an easy and effective cable tester with the ability to identify cable failures, check wiring, and measure cable length in the UTP (Unshielded twisted pair cable), FTP (Foil – screened twisted pair cable), and COAX (Coaxial cable) cables.

QuickLAN 6050 not only identifies wiring faults, such as open wires, shorted wires, miswires and split pairs, but also tests up to 4 different cables at one end. A stored cable library provides quick access to common cable types.

INSTRUMENT DESCRIPTION
Contol description

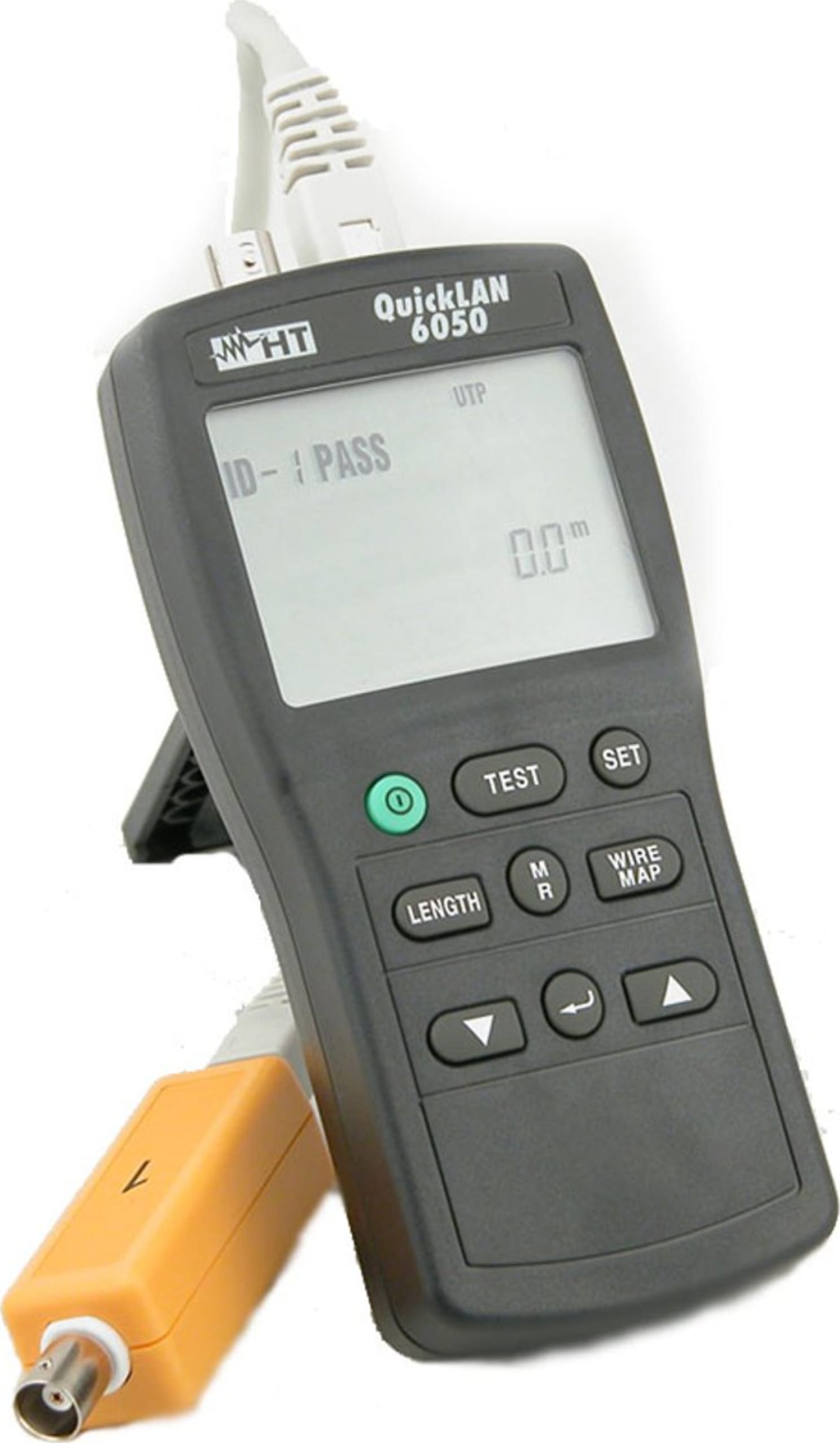

LEGEND : LCD Display TEST key Power key SET key ENGTH measurement key WIREMAP test key ▼ ▲ Keys ↲ ENTER key M (Memory) R (Read) key RJ45 jack Remote Identifiers #1 ~ #4 ( Identifiers #2, #3, #4 optional) BNC connector
