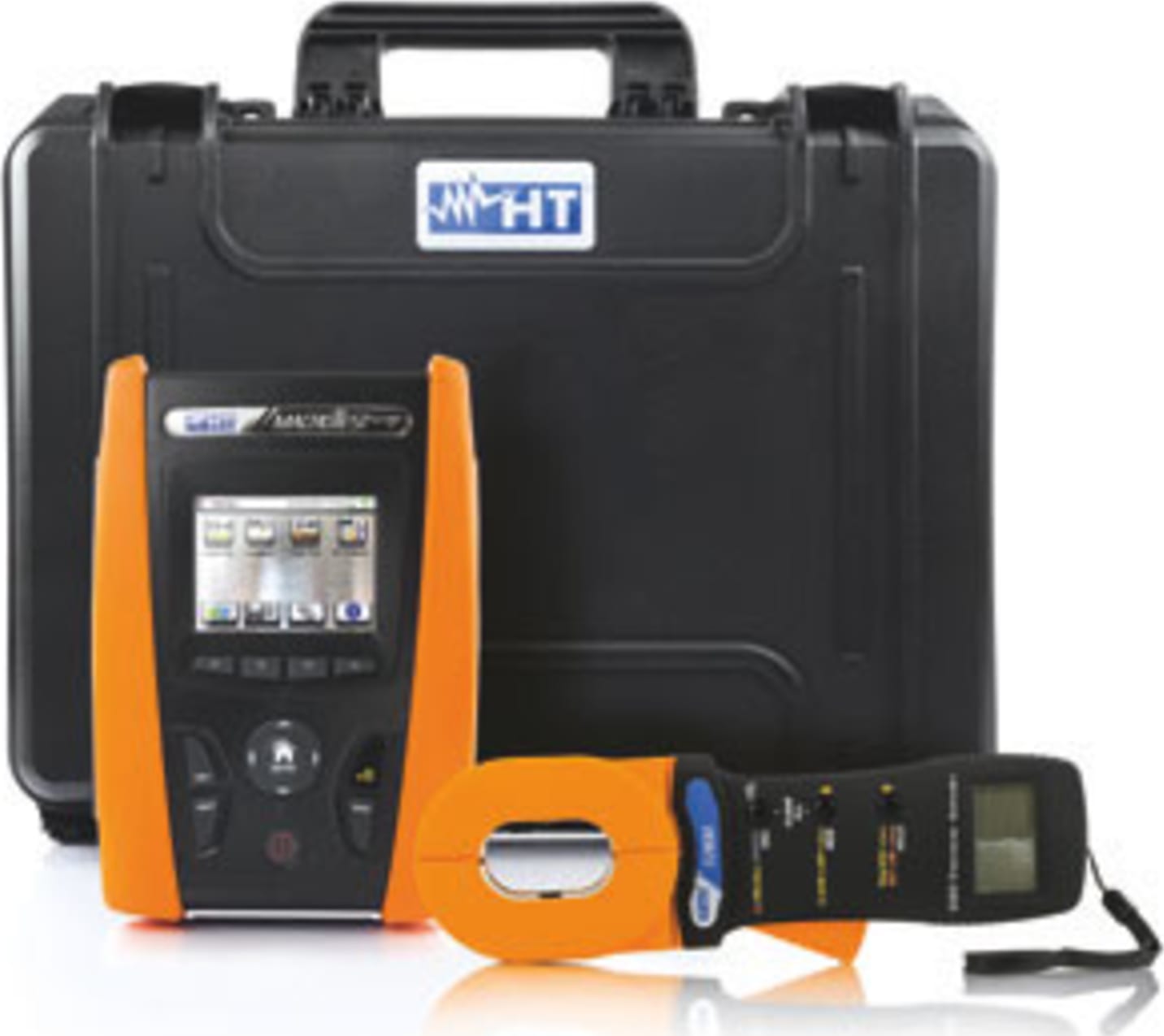

HT Instruments KITMACROTESTG1 MacrotestG1 + VA504 + T2100

Name: HT Instruments KITMACROTESTG1 MacrotestG1 + VA504 + T2100
Brand: HT Instruments
SKU: HT InstrumentsKITMACROTESTG1
Price: 2995.00 USD
Availability: InStock

0 reviews | Model: HT Instruments KITMACROTESTG1

Compare

MacrotestG1 + VA504 + T2100

Earth resistance and soil resistivity with 2/3/4 pole method.
Stackless earth ground resistance (with T2100 optional accessory)
Power Analysis, Harmonic analysis up to 25th
Continuity of protection conductors with 200mA
Built-in WiFi interface to connect to iOS and Android devices
USB interface to connect to the PC
Color touch-screen display
Help on-line
Internal memory and Cloud Storage (trough iOS or Android device)
Rechargeable NiMH batteries (external battery charger)

T2100 Earth Ground Clamp Meter with RS-232 Interface

Resistance measurement on earth probes by means of ground loop method
Direct measurement on earth probes without any cable breaking
RS-232 serial interface for connection with MACROTESTG3
Calculation of parallel resistance of all earth probes
Setting of alarm thresholds on measurements
Storage of measurement results
Detection of current noise on measurements
Data HOLD function
Backlight
Auto Power OFF

View Product Details

List Price: $2,995.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the HT Instruments KITMACROTESTG1

HT Instruments PR400 Test lead with remote START button

Catalog: PR400

(0)

In Stock!

Add to Cart

HT Instruments C2033X 3-banana (black/blue/green) to Shuko plug cable

Catalog: C2033X

(0)

In Stock!

Add to Cart

HT Instruments SP-0400 Free hands kit

Catalog: SP-0400

(0)

In Stock!

Add to Cart

HT Instruments BORSA2051 Carrying bag

Catalog: BORSA2051

(0)

In Stock!

Add to Cart

HT Instruments HT96U Transducer for AC currents (including leakage current) 0 1 - 0...

Catalog: HT96U

(0)

In Stock!

Add to Cart

HT Instruments PT400 Stylus

Catalog: PT400

(0)

In Stock!

Add to Cart

HT Instruments T2100 Earth ground clamp meter w/RS232

Catalog: T2100

(1)

In Stock!

Add to Cart

HT Instruments 606-IECN (1) Magnetic adapter for connection to screw heads

Catalog: 606-IECN

(0)

In Stock!

Add to Cart

HT Instruments KITGSC5 Kit including 4 cables (black/blue/red/green), 4 alligator...

Catalog: KITGSC5

(0)

In Stock!

Add to Cart

HT Instruments KITTERRNE Carrying case containing 4 banana-banana cables and 4 earth rods

Catalog: KITTERRNE

(0)

In Stock!

Add to Cart

HT Instruments TOPVIEW2006 Software on CD-ROM and optical-to-USB connection cable C2006

Catalog: TOPVIEW2006

(0)

In Stock!

Add to Cart

MACROTEST Gx Series

MACROTEST G1 is an innovative multifunction installation tester capable of carrying out safety tests on civil and industrial electric systems in compliance with IEC/EN61557-1. Its resistive TFT color touch-screen display, its icon menu, its help-on-line, and its user-friendly development make the instrument extremely intuitive even for unskilled users. Its numberless features grant the user a wide range of applications in the world of measurements. The multifunction installation tester MACROTEST G2 allows saving all measures into an internal memory so transferring the saved data to a PC by means of USB (provided as standard) or built-in Wi-Fi interfaces with an iOS and Android smartphones or tablets. The software supplied among standard accessories allows printing testing reports. The multi-function installation tester MACROTESTG1 has as Optional clamp T2100 permits to quickly check the resistance of earth probes without disconnection from the earth system.

One instrument for all electrical safety tests according to IEC/EN61557-1.
Earth resistance with 2- or 3-pole volt-ampere method in TT, TN and IT systems, non-trip earth loop impedance measurement.
Measurement of electrical parameters in single-phase installations (V, A, W, VAR, VA, PF)
Continuity measurement of protective conductors.
Soil resistivity.
Insulation resistance measurement.
Stackless earth ground resistance measurement with T2100 (optional).

Earth Ground Resistance

The Macrotest Series easily measures earth ground (2 and 3 Point Method) and soil resistivity (4 Point Method) with an easy to understand graphical user interface and a color touchscreen.

The Macrotest Series easily measures earth ground (2 and 3 Point Method) and soil resistivity (4 Point Method) with an easy to understand graphical user interface and a color touchscreen. The meter can store internally up to 999 measurements. The included software enables easy data transfer to a computer, tablet or phone via built-in Wi-Fi or USB connection where it can be archived or used to generate reports.

The HTAnalysis application allows users, in real-time, to view, analyze, upload and share measurements on the HT Cloud. This is a free app that is available to all. The Macrotest Series provides a complete set of easy to use measurements.

The Macrotest Series utilizes the three-point test (fall of potential), which measures earth ground resistance as required by equipment manufacturer specifications and as mandated by national code requirements for proper grounding. The two-point test is used to test grounding wires resistance and connection points resistance between ground system elements (i.e. wires and electrodes). The tester can also be used to test soils for a new ground system design with the 4-point.

More than one earth

In addition to volt-ampere method other testing modes can be adopted as follows:

Stackless earth ground resistance measurement with T2100 (optional) - MacrotestG3 adopts an innovative method for earth resistance measurement eliminating the worry of finding a place for auxiliary earth rods. Earth resistance measurement will be easier thanks to an algorithm HTEarth storing all measurements effected with clamp T2100 and calculating earth resistance value without disconnecting rods.
Soil resistivity - It measures soil resistivity ( ) with a 4-pole Wenner method.

Power and Load Analysis

Single Phase and Three Phase balanced systems
Voltage, Current and frequency measurement
Active power, reactive power, and apparent power measurement
Cosphi, power factor measurement
THD% and Harmonics analysis up to 25 th

Insulation resistance

AUTO function
Rapid setting of limit values and test voltages through a virtual keyboard.
Setting of Timer for the test
Test voltage 50, 100, 250, 500, 1000 VDC

Continuity of protection conductors with 200mA

Calibration of measuring cables
Rapid setting of limit values through a virtual keyboard.
Setting of Timer for the test

Evolution of saving

Virtual keyboard to enter comments.
Saving on file structure.
New detailed reports with TopView software.

App HTanalysis will change your working concept

During testing you can:

Dictate comments orally
Associate a picture or a video to each measurement
Review and customize your measurements

HTCloud will enable you to share your measurements with everybody.

T2100 Earth Ground Clamp Meter with RS-232 Interface

The T2100 model is designed for the resistance measurement on earth probes with the ground loop method without the disconnection of parts of plants under test. This type of measurement carried out by the instrument can be used for the evaluation of single rods’ resistances within an earth installation assuming they do not affect each other. The inner part of the instrument is made of 2 jaws one for current and one for voltage. The voltage jaw generates a potential (E) on the loop during resistance measurement. A current (I) is consequently generated on the loop and is measured by the current jaw. Based on the value of parameters E and I the instrument displays the resistance value R calculated as their ratio. The T2100 is equipped with a half-duplex RS-232 interface to operate with MACROTESTG3 instrument. The instrument is in compliance with IEC/EN61010-1, CAT III 150V and is ideal to carry out easily measurements both in domestic and industrial environments.

MACROTESTG1 Ground Resistance and Bonding Continuity Tester

C2033X 3-banana to Shuko plug cable
KITGSC5 Kit including 4 cables, 4 alligator clips and 2 test leads
KITTERRNE Soft carrying bag containing 4 cables and 4 earth rods
PT400 Stylus
BORSA2051 Soft carrying bag
TOPVIEW2006 PC software and optical-to-USB connection cable C2006
YABAT0003000 Rechargeable NiMH battery 1.2V, AA, 6 pcs
Quick user’s guide
User’s manual on CD-ROM
Calibration certiﬁcate ISO9000

T2100 Earth Ground Clamp Meter with RS-232 Interface

Resistive test loop
RS-232 cable
Batteries
ISO9000 calibration certificate
User manual
Carrying case

MACROTESTG1 Ground Resistance and Bonding Continuity Tester

General Specifications
Power supply	6x1.2V rechargeable type AA NiMH or 6x1.5V type AA alkaline
Battery life	> 550 test (alKaline)
Display	320x240 resistive color LCD with touch screen
Memory	999 locations, 3 marker levels
PC interface	optical/USB and Wi-Fi (with optional accessory C2013)
Dimensions (L x D x H)	225 x 165 x 75 mm / 8.8 x 6.5 x 2.9 in
Weight (including batteries)	1.2 kg / 2.5 lb
Safety	IEC/EN61010-1, double insulation
Pollution degree	2
Mechanical protection	CAT III 240V, max 415V among inputs
Reference standards	IEC/EN61557-1-2-3-4-5-6-7
Working temperature	0°÷ 40°C / 32°÷104°F
Working humidity	<80%RH
Storage temp.	-10°÷ 60°C / 14°÷140°F
Storage humidity	<80%RH

T2100 Earth Ground Clamp Meter with RS-232 Interface

General Specifications
Mechanical characteristics
Dimensions (L x W x H)	293 x 90 x 66mm
Weight (including battery)	1320g
Max conductor size	32mm
Supply
Battery type	4 x1.5V alkaline LR6 AA MN1500
Low battery indication	Battery indicator is displayed when the battery level is too low.
Auto power OFF	about 5 minutes of idleness
Display
Characteristics	4 LCD, sign and decimal point with backlight
Sample rate	1 times/sec
Internal memory
Memory capacity	99 locations
Serial communication
RS-232 interface	Half-duplex, baud rate 4800 baud
Climatic conditions
Reference temperature	20°C  3°C
Operating temperature	0 ÷ 40°C
Operating humidity	10%RH / 90%RH
Reference standards
Comply with	IEC/EN 61010-1, IEC/EN61010-2-032
Insulation	double insulation
Pollution degree	2
Max height of use	2000m
Installation category	CAT III 150V to ground, max 20A

Tech Specs

Voltage / Continuity and Non-Contact Testers/Voltage and Continuity Testers Template
Type (Voltage Testers)	Contact
Style (Voltage Testers)	Hand Held
Voltage Tested	AC
AC Voltage	459.9 VAC
Continuity	Yes
Current Measurement	Yes
Resistance Measurement	Yes
Audible Alarm	Yes
CAT Voltage Rating	III
CAT Voltage Rating (V)	300V
Safety Voltage Rating	300V
Test Equipment General Attributes
Warranty	3 YEARS
Warranty Details	This instrument is warranted for 3 years against any material or manufacturing defect, in compliance with the general sales conditions. During the warranty period, defective parts may be replaced. However, the manufacturer reserves the right to repair or replace the product.
Safety Approval	CE
Interfaces I/O	Wifi, USB
Storage	Internal Memory, USB Flash Drive
IP Rating	IP40
Product Weight	3 LBS
Product Height	3 IN
Product Length	9 IN
Product Width	6 IN
Shipping Weight	5 LBS
Data Logging	Yes
Battery Type	NimH
Power Supply Voltage	Battery Powered
Country of Origin	Italy
Shipping Height	8 IN
Shipping Length	14 IN
Shipping Width	10 IN
