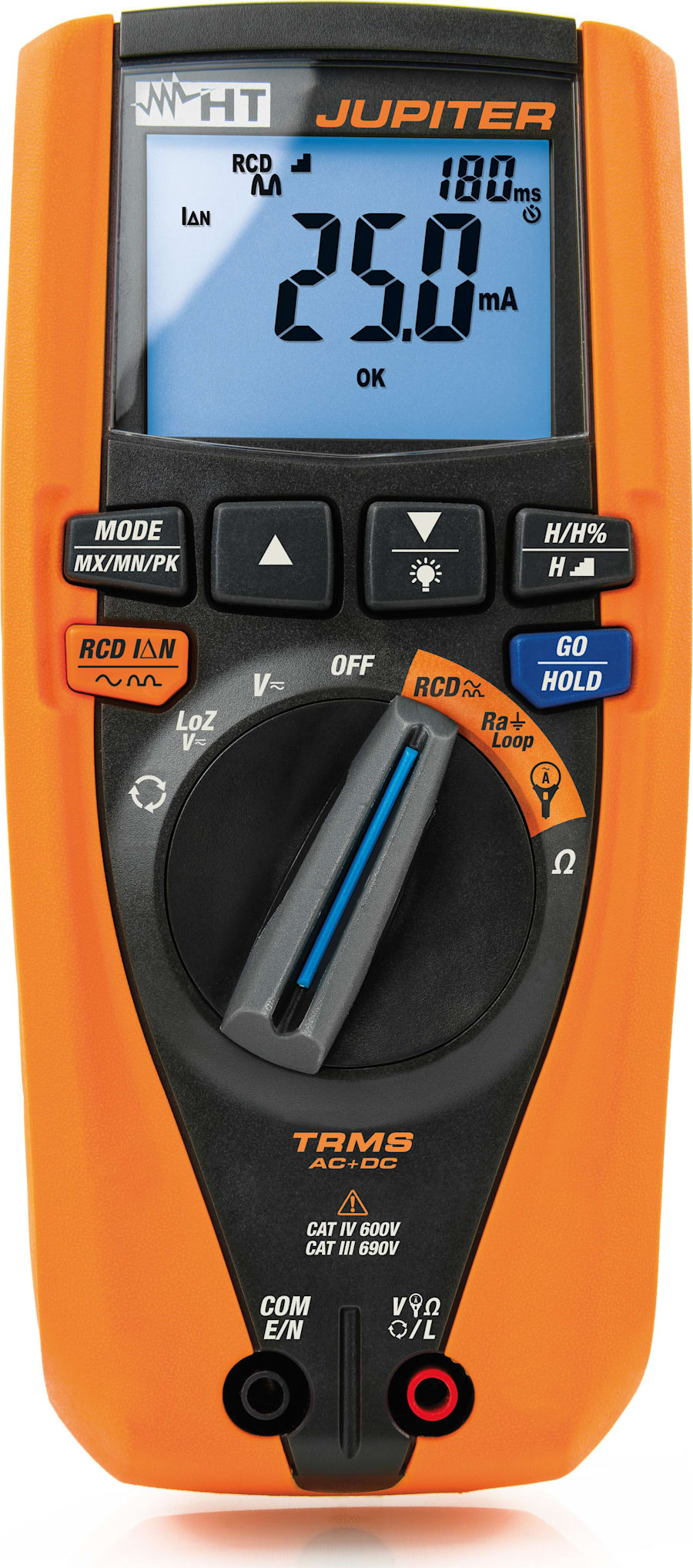

HT Instruments Jupiter Multifunction Multimeter to Test Electrical Safety

Name: HT Instruments Jupiter Multifunction Multimeter to Test Electrical Safety
Brand: HT Instruments
SKU: HT InstrumentsJupiter
Price: 595.00 USD
Availability: InStock

0 reviews | UPC: 8033100848700 | Model: HT Instruments Jupiter

Compare

Multifunction Multimeter for electrical installation safety testing

Autorange measurements with automatic AC/DC detection.
DC, AC TRMS, AC+DC TRMS voltage up to 690V.
Low impedance voltage input to eliminate ghost voltage readings.
DC, AC TRMS, AC+DC TRMS current by means of external transducer.
Frequency of voltage and/or current.
Resistance and continuity with buzzer.
MIN/MAX/PEAK/HOLD functions.
6000 counts.

View Product Details

Your Price: $595.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HT Instruments Jupiter Multifunction Multimeter for electrical installation safety testing	HT Instruments M71 Earth resistance meter by two auxiliary earth rods	HT Instruments M72 500V insulation meter, 200mA continuity meter and TRMS DMM	HT Instruments M73 RCDs tester, global earth resistance meter and TRMS DMM	HT Instruments M74 Multifunction safety tester and TRMS DMM	HT Instruments M75 Multifunction safety tester, TRMS DMM and LAN wire mapper
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

HT Instruments Jupiter Accessories

Choose a Category

for the HT Instruments Jupiter

HT Instruments 4324-2 2 90 Degrees banana professional test leads (red/black)

Catalog: 4324-2

(0)

In Stock!

Add to Cart

HT Instruments F3000U Flex transducer with 2 output bananas

Catalog: F3000U

(0)

In Stock!

Add to Cart

HT Instruments HT4006 Tranducer for ac/dc currents 400a

Catalog: HT4006

(0)

In Stock!

Add to Cart

HT Instruments HT96U Transducer for AC currents (including leakage current) 0 1 - 0...

Catalog: HT96U

(0)

In Stock!

Add to Cart

HT Instruments HT97U Transducer for AC currents 0 10 - 0 100 - 0 1000 A AC

Catalog: HT97U

(0)

In Stock!

Add to Cart

HT Instruments HT98U Transducer for AC/DC currents 0 1000 A AC/DC

Catalog: HT98U

(0)

In Stock!

Add to Cart

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

HT Instruments C2065 3-banana (black/red/green) to Shuko plug cable

Catalog: C2065

(0)

In Stock!

Add to Cart

HT Instruments NOCANBA Hypertac to banana adapter

Catalog: NOCANBA

(0)

In Stock!

Add to Cart

HT Instruments Jupiter Multifunction Multimeter to Test Electrical Safety

Autorange measurements with automatic AC/DC detection
DC, AC TRMS, AC+DC TRMS voltage up to 690V
Low impedance voltage input to eliminate ghost voltage readings
DC, AC TRMS, AC+DC TRMS current by means of external transducer

RCD tripping time and current

I can measure the tripping time of RCDs type A and AC up to 300mA** and the tripping current of RCDs type AC up to 30mA (RAMP test).
My AUTO function makes everything more immediate: my display will show you the 6 consecutive tests (x½, x1, x2, x5, 0°, 180°) for a full RCD check.
I will show you an unequivocal response OK or NOT OK.

Non-trip earth ground resistance and Line (Loop) impedance

In TT systems I measure the non-trip earth ground resistance.
I can identify incorrect connections of the protection cable, I can detect dangerous voltages on the metal masses and I constantly keep under control the contact voltage in order to prevent dangerous conditions due to an inefficient earthing system.
I measure the Line-to-Neutral, Line-to-Line, and Line-to-Ground impedance and I calculate the prospective short-circuit/fault current.

Harmonics and THD%

I measure voltage and current harmonics showing both numeric and percentage terms.
I measure THDV%, and the THDI%
My function H20 (Higher Harmonic Ordering) sorts harmonics showing the highest values first, so you can easily size filters and protections.

Current measurement

I can measure DC, AC TRMS, AC+DC TRMS current by means of external transducer up to 3000A.
With the optional transducer HT96U*** I can measure the leakage current.
I can select the time base to measure the dynamic inrush current of motors and loads (DIRC function).

HT Instruments Jupiter Technical Specifications
DC Voltage
Measurement range	0.0V ÷ 690.0V
Resolution	0.1V
Accuracy	±(0.5%reading + 2digits)
AC TRMS, DC, AC+DC TRMS, LoZ Voltage
Measurement range	0.5V ÷ 690.0V
Frequency range	32Hz ÷ 1kHz
Resolution	0.1V
Accuracy	±(0.5%reading + 2digits)
AC TRMS Current with Flexible clamp F3000U
Measurement range	1A ÷ 3000A
Basic resolution	0.01A
Accuracy	±(0.5%reading + 2digits)
AC TRMS, DC, AC+DC TRMS Current with Standard clamp
Measurement range	1mV ÷ 1000mV
Resolution	1mV
Accuracy	±(0.5%reading + 2digits)
Inrush current (DIRC) - Flexible clamp F3000U
Measurement range	1A ÷ 3000A
Basic resolution	0.01A
Frequency range	42.5Hz ÷ 69Hz
Accuracy	±(2.0%reading + 2digits)
Peak response time	1ms
Max RMS response times	16.6ms, 20ms, 50ms, 100ms, 150ms, 175ms, 200ms
Inrush current (DIRC) - Standard clamp
Measurement range	1mV ÷ 1000mV
Resolution	1mV
Frequency range	42.5Hz ÷ 69Hz
Accuracy	±(2.0%reading + 2digits)
Peak response time	1ms
Max RMS response times	16.6ms, 20ms, 50ms, 100ms, 150ms, 175ms, 200ms
Resistance and Continuity test
Measurement range	0.0Ω ÷ 1999Ω
Basic resolution	0.1Ω
Accuracy	±(1.0%reading + 5digits)
Buzzer sound	R<30Ω
Voltage / Current Harmonics
Harmonic order	DC, 1 st ÷ 25 th + THD%
Frequency range	42.5Hz ÷ 69Hz
Resolution	0.1V / 0.1A
Basic accuracy	±(5.0%reading + 10digits)
Phase rotation test with 1-wire method
Measurement range	100V ÷ 690V
Frequency range	42.5Hz ÷ 69Hz
Test on RCD protection devices
RCD type	AC, A, General Trip-out time measurement (ms) / Trip-out current measurement (mA)
L-PE voltage range	100V ÷ 690V
Frequency range	42.5Hz ÷ 69Hz
Trip-out time measurement	IΔN selectable among 30mA, 100mA, 300mA
Trip-out current measurement	for IΔN of 30mA
Overall earth resistance without RCD tripping
L-PE voltage range	100V ÷ 690V
Frequency range	42.5Hz ÷ 69Hz
Test current	<15mA
Measurement range	1Ω ÷ 1999Ω
Resolution	1Ω
Accuracy	5.0%reading + 3Ω
L-N, L-L, L-PE Loop / Line Impedance
L-PE, L-N voltage range	100V ÷ 690V
Frequency range	42.5Hz ÷ 69Hz
Test current	100mA
Measurement range	0.1Ω ÷ 199.9Ω
Basic accuracy	±(5.0%reading + 3digits)
HT Instruments Jupiter General Specifications
General characteristics
Instrument safety	IEC/EN61010-1, IEC/EN61010-2-030, IEC/EN61010-2-033
EMC	IEC/EN61326-1
RCD test	IEC/EN61557-6
Loop L-L, L-N, L-PE, Ra test	IEC/EN61557-3
Phase rotation test	IEC/EN 61557-7
Insulation	double insulation
Pollution degree	2
Measurement category	CAT IV 600V, CAT III 690V to ground and between inputs
Mechanical characteristics
Dimensions (L x W x H)	175 x 85 x 55mm
Weight (batteries included)	420g
Mechanical protection	IP40
Power supply
Battery type	4x1.5V alkaline type AAA IEC LR03
Auto Power OFF	after15min of idleness
Display
Display type	4 LCD, max 9999 counts, sign, decimal point backlight and bargraph, polarity indication
Frequency rate	2times/s

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	690 V
Resolution AC Volts	1 mV
Maximum Voltage DC	690 V
Resolution DC Volts	1 mV
# Digit Display	4
Counts	6000 .
Backlight	Yes
Manual/Autoranging	Auto-ranging
Resistance	Yes
Frequency	No
CAT Rating	IV
CAT Voltage	600 V
Peak Hold	Yes
Data Hold	Yes
Low-Pass Filter	Yes
Test Equipment General Attributes
Unique Features	* Tests Electrical Installation Safety * Wide range of external transducers to measure AC TRMS, DC, AC+DC, and inrush current
IP Rating	IP40
Product Weight	1.1 LBS
HTS/Schedule B Number	90303330
ECCN Number	8.0331E+12
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Italy
