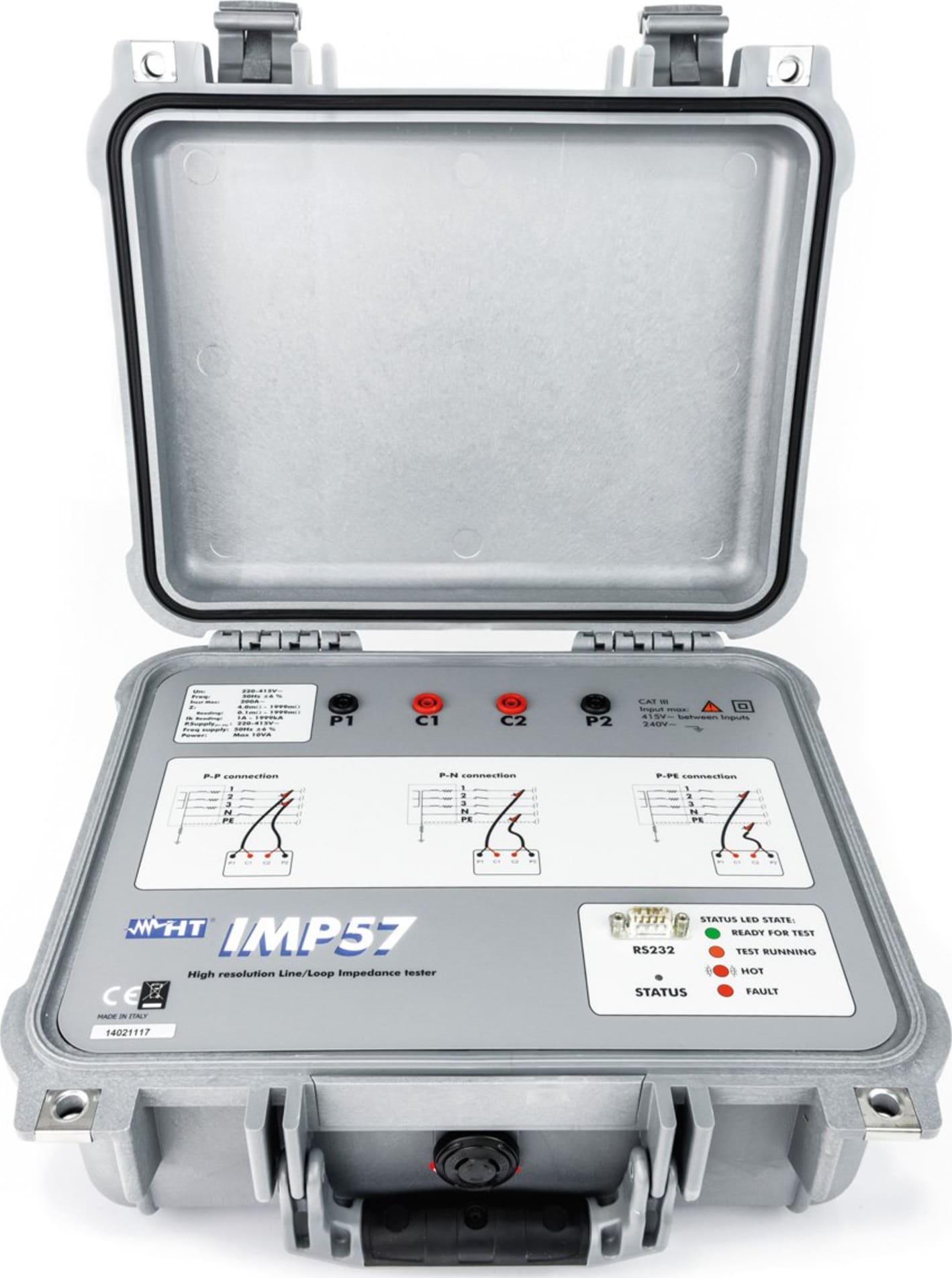

HT Instruments IMP57 Loop/Line Impedance Meter

Name: HT Instruments IMP57 Loop/Line Impedance Meter
Brand: HT Instruments
SKU: HT InstrumentsIMP57
Price: 2695.00 USD
Availability: InStock

0 reviews | UPC: 8033100185157 | Model: HT Instruments IMP57

Compare

High resolution impedance measurements adapter

Loop/Line Impedance measurement P-P, P-N and P-PE
Maximum and Minimum calculation values of prospective short circuit current
Measures with high resolution (0.1mOhm)
4-wire measurement method
RS-232 interface for connection with Master meters
LED indication on frontal panel
Voltage AC measurement
Frequency measurement

View Product Details

Your Price: $2,695.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Measurement mode	4 wire high resolution Line impedance measurement.
Max Test Current	202A
Conformity	The instrument is according to: EN60909-0, VDE 0413, EN61557-3
The instrument complies with	EN 61010, EN61557
Insulation	Class 2, double insulation
Pollution level	2
Maximum height	2000m
Overvoltage category	CAT III 240V (to Earth)
Power supply	220 - 415V nominal (from P1 and P2 inputs)
Frequency	50Hz±5%
Dimension	340mm (W) x 300mm (L) mm x 150mm (H)
Weight	approx. 4100g (without accessories).
Operating temperature	0°C to 40 °C, <80 % R.H.
Storage temperature	-10°C to 60°C, <80 % R.H

Tech Specs

Test Equipment General Attributes
Unique Features	Loop/Line Impedance measurement P-P, P-N and P-PE
Safety Approval	CE
Product Weight	4100 GRAMS (9.04 LBS)
Product Height	150 MM (5.91 IN)
Product Length	300 MM (11.81 IN)
Product Width	340 MM (13.39 IN)
HTS/Schedule B Number	90303330
ECCN Number	8.0331E+12
Country of Origin	Italy
