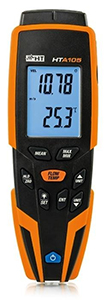

HT Instruments HTA105 Hot Wire Digital Anemometer Including Air Temperature Measurement

Name: HT Instruments HTA105 Hot Wire Digital Anemometer Including Air Temperature Measurement
Brand: HT Instruments
SKU: HT InstrumentsHTA105
Price: 545.00 USD
Availability: InStock

0 reviews | UPC: 8033772794046 | Model: HT Instruments HTA105

Compare

Hot wire digital anemometer including air temperature measurement

Measurement of air speed through hot-wire sensor
Measurement of volumetric flow rate of air in m3 /min (CMM) and ft3 /min (CFM)
Measurement of air temperature in °C/°F with internal sensor
Measurement of relative humidity %RH with internal sensor
Measurement of Maximum and Minimum value
Calculation of average over time and by spots
Data HOLD
Display backlight
Auto Power OFF

View Product Details

Your Price: $545.00

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

HT Instruments HTA105 Hot wire digital anemometer

Measurement of relative humidity %RH with internal sensor
Measurement of Maximum and Minimum value
Calculation of average over time and by spots
Auto Power OFF
Measurement of air speed through hot-wire sensor

Hot wire digital anemometer including air temperature measurement

HTA105 was designed for air speed measurement with selection of European or Anglo-Saxon measuring units. The hot wire anemometer carries out measurements using an extensible telescopic probe capable of taking also measurements of temperature and humidity thanks to its built-in sensors. Additional functions include measurement of air volumetric flow rate (CMM and CFM parameters) as well as calculation of average values in space and time. HTA105 is fitted with MAX/MIN and Data HOLD function in addition to an internal memory to store air speed measuring results. It is provided with a back-lighted double display and auto power off to save internal battery life.

General Specifications
Mechanical characteristics
Dimensions (L x W x H):	190 x 65 x 45mm (7 x 3 x 2in)
Length of telescopic probe:	from 13cm to 1m (from 5in to 3ft)
Length of telescopic probe cable:	170cm (6ft)
Diameter of telescopic probe:	11mm (0.4in)
Weight (battery included):	240g (8ounces)
Weight of telescopic probe:	165g (6ouces)
Air speed sensor:	hot-wire
Air temperature sensor:	digital sensor
Mechanical protection:	IP40
Mains supply
Battery type:	1x9V alkaline battery IEC 6F22.
Battery life:	ca 15 hours (backlight ON), ca 20hours (backlight OFF)
Auto power OFF:	about 20 minutes of idleness
Display
Main display:	4 LCD decimal point, sign and backlight
Secondary display:	4 LCD decimal point, sign and backlight
Updating speed:	ca 0.8s
Climatic conditions
Operating temperature/humidity:	0°C ÷ 50°C / <80%RH
Storage temperature/humidity:	-10°C ÷ 60°C / <80%RH
Max height of use:	2000m

Technical Specifications
Accuracy is calculated as [% rdg + values]. It is referred to 25°C, <80%RH
Air speed measurement with internal hot wire probe	Measurement unit	Range	Resolution	Accuracy
	m/s	0.10 ÷ 20.00	0.01m/s	±(5%reading + 0.03)
	km/h	0.4 ÷ 72.0	0.1km/h
	ft/min	20 ÷ 3937	1ft/min
	MPH	0.3 ÷ 44.7	0.1MPH
	knots	0.2 ÷ 39.0	0.1knots
m/s = meters/second ; km/h = kilometers/hour ; ft/min = feet/minute ; MPH = miles/hour ; knots = nautical miles/hour
Airflow measurement with internal hot wire probe	Measurement unit	Range	Resolution	Accuracy
	CMM	0 ÷ 99999	0.001 ÷ 100	CMM (m3 /min)
	CFM	0 ÷ 99999	0.001 ÷ 100	CFM (ft3 /min)
CMM = air speed (m/s) * Area (m2 ) * 60 ; CFM = air speed (ft/min) * Area (ft2 )
Air temperature measurement with internal sensor	Measurement unit	Range	Resolution	Accuracy
	°C	0.0°C ÷ 50.0°C	0.1°C	±1°C
	°F	32.0°F ÷ 122.0°F	0.1°F	±1.8°F
Air humidity measurement with internal sensor	Range	Resolution	Accuracy
Air humidity measurement with internal sensor	0%RH ÷ 100%RH	0.1%RH	±5%RH
