Professional V/A Process Calibrator

The HT8051 is a professional digital process calibrator designed to generate and measure DC voltage and DC current up to 10V and 24mA respectively. Under the current generation mode  you can manually select between 0-20mA and 4-20mA as well as automatic ramps on output signal. An innovative adjustment knob permits a “top-easy” settings of the output current/voltage with 0.001mA/V resolution.

The instrument permits also to effect measurements of current absorbed by external transducers and simulate a transducer with current adjustable within the whole measurement range. HT8051 is designed in compliance with IEC/EN61010-1 safety standards, provided with double insulation protection with CAT I 30V. This model is ideal for the most common industrial appliances and  typical laboratory activities.

OPERATING INSTRUCTIONS

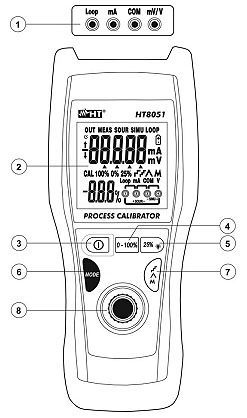

CAPTION: Input terminals Loop, mA, COM, mV/V LCD display Key 0-100% key 25%/ key MODE key key Adjuster knob

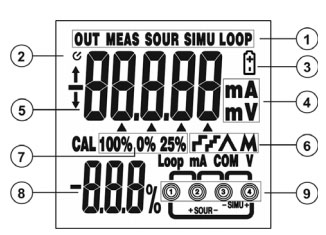

Display Description   CAPTION: Operating mode indicators Auto Power OFF symbol Low battery indication Measuring unit indications Main display Ramp function indicators Signal level indicators Secondary display Used inputs’ indicators
