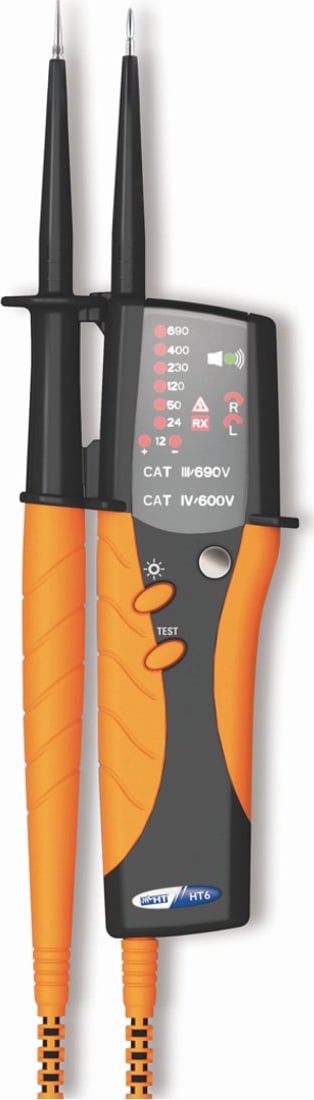

HT Instruments HT6 Two Pole Voltage Meter with LED Indications

Name: HT Instruments HT6 Two Pole Voltage Meter with LED Indications
Brand: HT Instruments
SKU: HT InstrumentsHT6
Price: 119.00 USD
Availability: InStock

0 reviews | UPC: 8033772795883 | Model: HT Instruments HT6

Compare

Pen-type multimeter

DC/AC voltage up to 690V
AC voltage detector with 1 wire method
Continuity test
Phase sequence rotation
Led and acoustic indications
Diode test
Built-in torch
Safety: IEC/EN61243-3:2010
Measurement category: CAT III 690V, CAT IV 600V

View Product Details

List Price: $119.00

In Stock:

View Payment Options

Recommended for you

Pen-type Digital Multimeter with LED Indications

Two Pole Voltage Meter with LED Indications

Digital pen-type multimeter HT8 provides daily use features. In addition to DC/AC voltage measurement and continuity test, HT8 also offers phase sequence/conformity detection feature. To overcome difficult pinpointing of the right cable within a frame on a switchboard under poor light conditions, a built-in white LED flashlight makes testing possible and easy even in dark environments. The slim and ergonomic design of HT8 is highly appreciated by contracting electricians, field professionals, troubleshooters as well as any kind of user. Designed according to the requirements of field professionals, HT8 is must-have troubleshooting tool.

Figure 1 - HT6 Instrument Description
	1.	Protective cap
	2.	Fixed lead L2
	3.	Mobile lead L1
	4.	Torch light
	5.	Leds and Display
	6.	Electrode for phase detection, phase rotation, continuity function
	7.	“Torch” button
	8.	“Lamp test” button (HT9) / ON/Reset button (HT6, HT8)
	9.	Banana connector

Figure 2 - HT6 LED and Display Description
1.	Voltage indication leds
2.	Buzzer hole for acoustic signal
3.	Indication led Lamp test
4.	Indication led Phase sequence
5.	Indication led Phase detection / Dangerous voltage
6.	Indication led Continuity test
7.	Indication led 12V and positive or negative polarity
8.	LCD display with voltage, polarity and flat battery indication

The instrument can also be used to check reactors, starters, capacitors and resistors, further to the following kinds of lamps:

Fluorescent lamps
Low-pressure sodium lamps
High-pressure sodium lamps
Neon tubes
Mercury-vapour lamps and halogen lamps

HT Instruments Models Product Characteristics
Function	HT6	HT8	HT9
Test lamps with internal gas			✔
AC/DC voltage and polarity measurement	✔	✔	✔
Phase sequence	✔	✔	✔
Continuity test	✔	✔	✔
Phase detection function with 1 terminal	✔	✔	✔
Torch function	✔	✔	✔
LCD display		✔	✔

HT Instruments HT8 TECHNICAL SPECIFICATIONS
Accuracy indicated as: ±[%rdg + (num. dgt * resolution)] at 23°C ± 5°C, <70%HR
AC/DC VOLTAGE MEASUREMENT
Range [V]	12.0 - 299.9 300 - 690
Resolution [V]	0.1 1
Frequency range [Hz]	16 - 400
Accuracy	+/-(3%rdg + 5dgt)
Overload protection	690VDC/AC
AC VOLTAGE WITH 1 WIRE
Range [V]	100 - 690
Frequency range [Hz]	50 - 60
Measurement method	1-wire with contact on metal live parts
Overload protection	690VAC
PHASE SEQUENCE INDICATION
Voltage range [V]	120 - 400 (Phase – Earth)
Frequency range [Hz]	50 - 60
Measurement method	2-wires with contact on metal live parts
CONTINUITY TEST
Range	0 - 500KΩ + 50%
Test current	<7µA
Indications	LED + acoustic signal
GENERAL SPECIFICATIONS
Mechanical specifications
Dimensions (L x W x H)	255 x 60 x 35mm
Weight (included batteries)	170g
Encapsulation	IP64
Display	LED, LCD
Power supply
Internal supply	2x1.5V alkaline batteries type AAA, IEC LR03
Reference guidelines
Safety	IEC/EN61010-1, IEC/EN61010-2-030, IEC/EN61243-3:2010
Insulation	double insulation
Pollution degree	2
Measurement category	CAT III 690V; CAT IV 600V
Max height of use	2000m
Environmental conditions
Reference temperature	23°C ± 5°C
Working temperature	-15 to 55°C
Working humidity	<85%HR
Storage temperature	-20 to 70°C
Storage humidity	<85%HR

Tech Specs

Voltage / Continuity and Non-Contact Testers/Voltage and Continuity Testers Template
Type (Voltage Testers)	Contact
Style (Voltage Testers)	Hand Held
Voltage Tested	AC/DC
AC Voltage	690 VAC
DC Voltage	690 VDC
Continuity	Yes
CAT Voltage Rating	III, IV
CAT Voltage Rating (V)	600V CAT Voltage Rating (V) CAT III 690V
Test Equipment General Attributes
Unique Features	DC/AC voltage up to 690V Continuity test Phase sequence rotation Built-in torch LED indications
IP Rating	IP64
Product Weight	170 GRAMS (0.375 LBS) Product Weight Included batteries
Product Height	35 MM (1.38 IN)
Product Length	255 MM (10.04 IN)
Product Width	60 MM (2.36 IN)
HTS/Schedule B Number	90303330
ECCN Number	8.03377E+12
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Hong Kong
