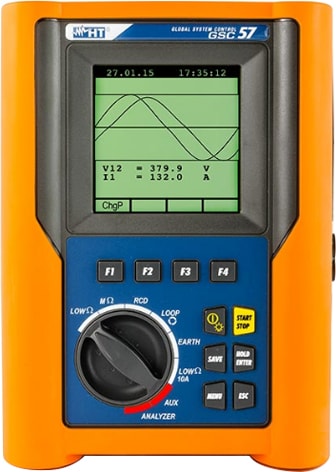

| Integrated period |
5 ÷ 3600 sec |
| Recording autonomy |
> 30 days with integrated period of 15 minutes |
| Memory capacity |
2Mbyte |
| DISPLAY AND MEMORY |
| Features |
Dot matrix with backlight |
| Resolution |
128x128 dots |
| Memory |
999 measures |
| POWER SUPPLY |
| Batteries |
6 batteries 1.5V type LR6-AA-AM3-MN 1500 |
| External power supply adapter |
Code A0050 (AUX e ANALYZER functions only) |
| Mains power supply |
230V- 50Hz (LOWΩ10A function only) |
| MECHANICAL FEATURES |
| Dimensions |
225 (W)x165(L)x105(D) mm |
| Weight (included batteries) |
about 2.0 kg |
| WORKING ENVIRONMENTAL CONDITIONS |
| Reference temperature |
23°C ± 5°C |
| Working temperature |
0° ÷ 40°C |
| Allowed relative humidity |
< 80% HR |
| Storage temperature |
-10 ÷ 60°C |
| Storage humidity |
< 80% HR |
| TEST VERIFIES REFERENCE STANDARDS |
| Continuity test with 200mA |
IEC 61557-4 |
| Insulation resistance |
IEC 61557-2 |
| Earth resistance |
IEC 61557-5 |
| Fault Loop Impedance |
IEC 61557-3 |
| RCDs test |
IEC 61557-6 |
| Phase sequence |
IEC 61557-7 |
| Continuity test with 10A |
EN60439-1, EN60204-1 |
| POWER/ENERGY MEASUREMENTS REFERENCE STANDARDS |
| Active energy static counters for AC current |
EN61036 (Class 2) |
| Reactive energy static counters for AC current |
IEC1268 (Class 3) |
| GENERAL REFERENCE STANDARDS |
| Safety of measuring instruments |
EN61010-1 + A2(1997) |
| Product type standard |
IEC61557-1, 2, 3, 4, 5, 6 |
| Insulation |
double insulation |
| Pollution degree |
2 |
| Overvoltage category |
CAT II 600V~ / 350V~ (to ground), CAT III 600V~ / 300V~ (to ground) |
| Max altitude of use |
2000m |
| Normative |
CE MARK, CEI 64-8 612.6.2, CEI 64-8, CEI 64-8 612.3 .4 .5, CEI 64-8 612.6.1, CEI 64-8 612.6.3, CEI 64-8/7, EMC 2004/108/CE Directive, LVD 2006/95/CE Directive, DPR 462 del 22/10/2001, EN 61008, IEC/EN 61010-1, IEC/EN61557-1, IEC/EN61557-2, IEC/EN61557-3, IEC/EN61557-4, IEC/EN61557-5, IEC/EN61557-6, IEC/EN61557-7, VDE 0100, CEI 64-8 612.2, EMC: IEC/EN61326 |
