0 reviews | Model: HT Instruments EQUITEST5071
Earth conductor resistance (with 10A test current) and Line/Loop imp. meter
List Price: $1,995.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!

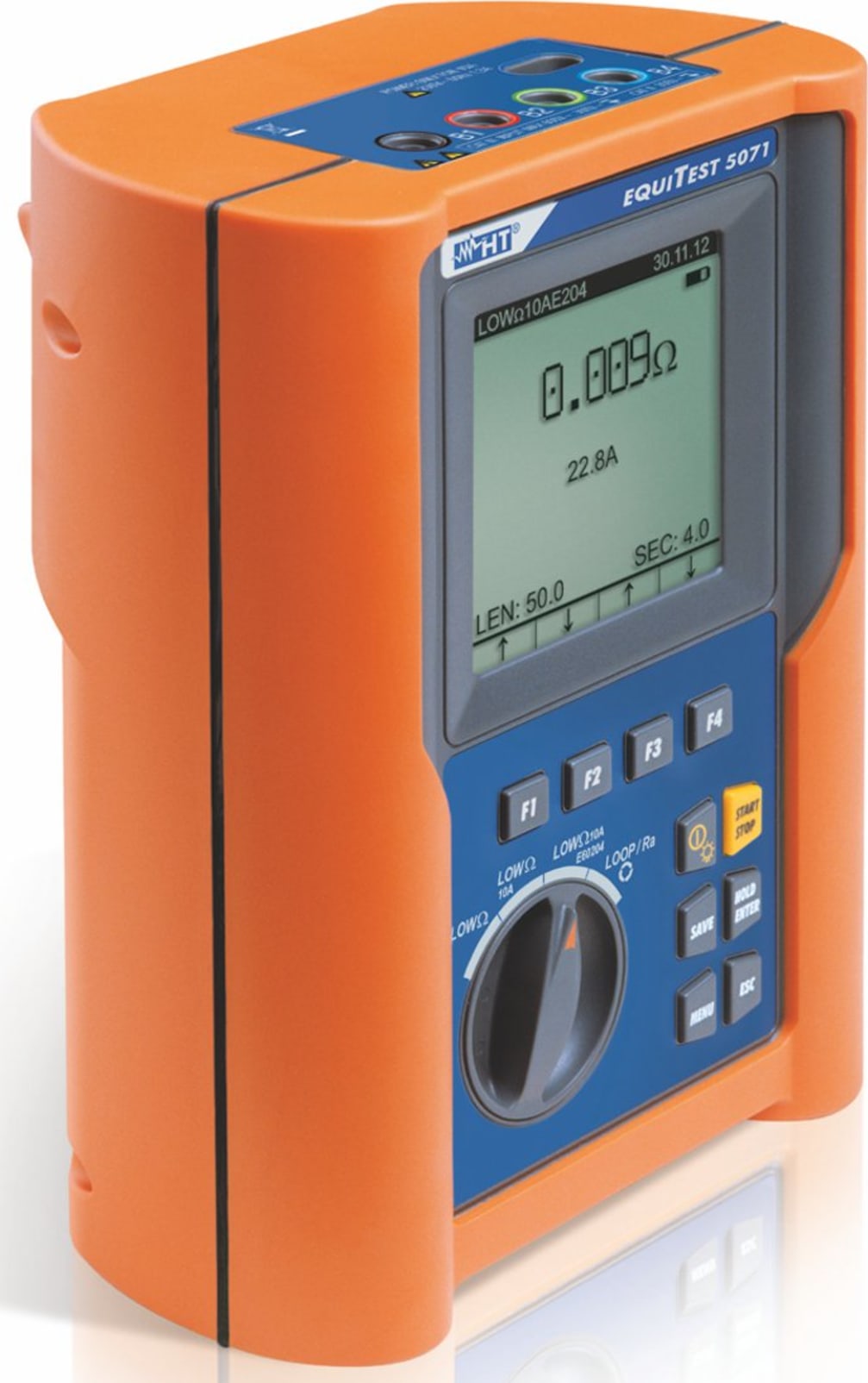

HT Instruments EQUITEST 5071 Instrument for Continuity 10A and Line/Loop Test
Multifunction installation tester for continuity of earth conductor with 10A and Line/Loop impedance.

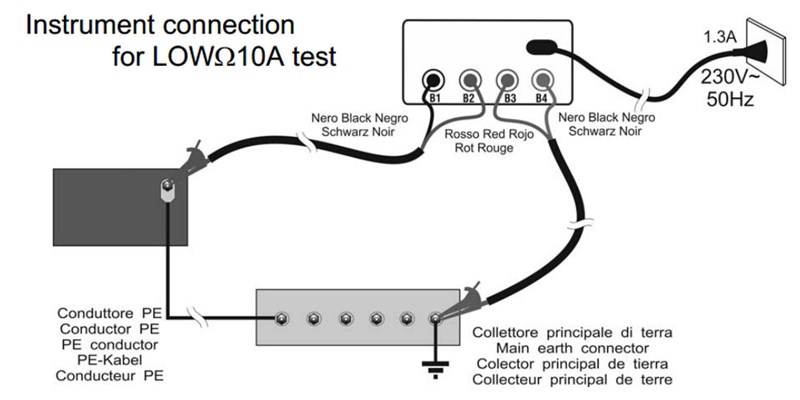

The multifunction installation tester EQUITEST5071 model is principally designed to perform the safety verifies of earth equipotential conductors with test current > 10A in compliance with IEC/EN61557, VDE100 and IEC/EN60204-1:2006 guidelines (medical rooms and safety of electrical machines). The instrument performs even continuity measurements with 200mA, Line/Loop impedance also with high resolution (0.1mOhm – with IMP57 optional accessory), global earth resistance without RCDs tripping and phase sequence indication. Each test can be saved inside the internal memory and downloaded to PC by using supplied Windows software.
