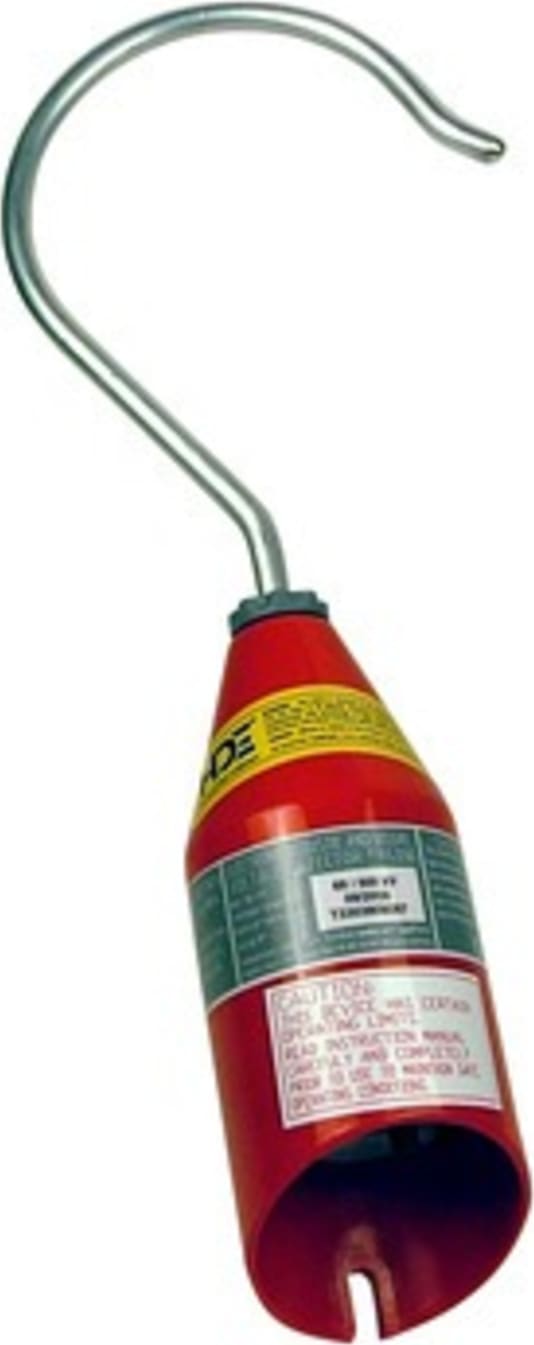

HDE T330-069230 - Contact Voltage Detector, 69-230KV, OH

Name: HDE T330-069230 - Contact Voltage Detector, 69-230KV, OH
Brand: HD Electric
SKU: HDET330-069230
Price: 2197.42 USD
Availability: InStock

0 reviews | UPC: 783310556190 | Model: HD Electric T330-069230

Compare

Single Range Voltage Detector

Direct contact solution to quickly test for the presence of voltage from 69kV up to 500kV line-to-line
No on/off or range selector switches – always on
Clear indication of voltage detection with both audible and visual indications
All‑Check Self‑Test System verifies proper operation
Versatile for overhead and underground applications

View Product Details

List Price: $2,676.55

Your Price: $2,197.42

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	HD Electric T330-069230 Single Range Voltage Detector	HD Electric T200/KIT-0412 Voltage Detector Kit	HD Electric T200/KIT-1235 Voltage Detector Kit	HD Electric T200MR/KIT-0435 Dual Range Voltage Detector Kit	HD Electric T200MR/KIT-1235 Dual Range Voltage Detector Kit	HD Electric T200MR-0412 Dual Range Voltage Detector	HD Electric T200MR-1235 Dual Range Voltage Detector	HD Electric T330-138500 Single Range Voltage Detector	HD Electric T200MR/KIT-0412 Dual Range Voltage Detector Kit
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

HD Electric T330-069230 Accessories

Choose a Category

for the HD Electric T330-069230

HD Electric CM-330 Metal Carrying Case

Catalog: 50118650

(0)

In Stock!

Add to Cart

HD Electric HV-208 Telescopic Hotstick; Retracted - 26 inches; Extended - 8ft

Catalog: 52074174

(1)

In Stock!

Add to Cart

HD Electric HV-212 Telescopic Hot Stick, 58in Retracted, 12ft Extended

Catalog: 52074175

(0)

In Stock!

Add to Cart

HD Electric HV-216 Telescopic Hot Stick, 60in Retracted, 16ft 9in Extended

Catalog: 52074176

(0)

In Stock!

Add to Cart

HD Electric HV-220 Telescopic Hot Stick, 62in Retracted, 21ft Extended

Catalog: 52074177

(0)

In Stock!

Add to Cart

HD Electric HV-225 Telescopic Hot Stick, 64in Retracted, 25ft, 6in Extended

Catalog: 52074178

(0)

In Stock!

Add to Cart

HD Electric HV-230 Telescopic Hot Stick, 66in Retracted, 30ft Extended

Catalog: 52074179

(0)

In Stock!

Add to Cart

HD Electric HV-235 Telescopic Hot Stick, 60in Retracted, 35ft Extended

Catalog: 52074180

(0)

In Stock!

Add to Cart

HD Electric S-4H 4ft Fixed Length Fiberglass Hotstick

Catalog: 52068923

(0)

In Stock!

Add to Cart

HD Electric S-6H 6ft Fixed Length Fiberglass Hotstick

Catalog: 52068924

(0)

In Stock!

Add to Cart

HD Electric TAG-AC120 HDE TAG-AC120 - Overhead Suspension Probe

Catalog: 52087394

(0)

In Stock!

Add to Cart

HD Electric TAG-AC60 Overhead Suspension Probe

Catalog: 52087371

(0)

In Stock!

Add to Cart

HD Electric TAG-AD100 Overhead Suspension Hook Probe

Catalog: 52087393

(0)

In Stock!

Add to Cart

HD Electric PT-DET PROOF TESTER TAG VOLT DETECTOR

Catalog: 52087387

(0)

In Stock!

Add to Cart

HDE T330-069230

Direct contact solution to quickly test for the presence of voltage from 69kV up to 500kV line-to-line
No on/off or range selector switches – always on
Clear indication of voltage detection with both audible and visual indications
All‑Check Self‑Test System verifies proper operation
Versatile for overhead and underground applications

Contact Voltage Detector, 69-230KV, OH

TAG-330, Range 69-230kV Designed to physically contact conductor under test Built-in universal spline for hot stick attachment Water-resistant/gasketed housing No on/off or range selector switches- always on Optional bushing probes for use in underground applications Carrying case included Audible and visual alarms All-Check self-testing system Designed for rugged field use 9-volt lithium or alkaline battery operated Compact, lightweight and easy to use Direct contact voltage detectors give an audible and visual indication of the presence of voltage.

General Specifications
Model	TAG-200	TAG-200/MR	TAG-330
Operating Voltage Ranges:	4-12kV or 12-35kV (phase-to-phase)	4kV & 12kV; 4kV & 35kV; 12kV & 35kV (phase-to-phase)	69-230kV or 138-500kV (phase-to-phase) Custom ranges and labeling are available, contact HDE for details
Power Supply	Field replaceable 9-volt lithium or alkaline battery
Battery Life	Approx. 1Year
Dimensions	Length (without probe attached): 7.5 inches(19.1 cm)		Length (without probe attached): 8.3 inches(21.1 cm)
Diameter	1.9 inches(4.9 cm)		3.2 inches(8.13 cm)
Weight	(without probe attached): 11 ounces( .31 kg)		(without probe attached): 1lb. 3 ounces( .59 kg)
Temperature Range:	Operating: -15°F to 110°F (-25°C to 40°C) Storage: -22°F to 131°F (-30°C to 55°C)		Operating: -15°F to 110°F (-25°C to 40°C) Storage: -22°F to 131°F (-30°C to 55°C)
Standard Overhead Probes	(for overhead use only) Over head Y Probe (TAG-42029) Overhead Straight Probe (TAG-41811/B)		(for overhead use only) Overhead Straight Probe (TAG-AD100) Large Overhead Hook Probe (TAG-AC120) Small Overhead Hook Probe (TAG-AC60)
Carrying Case	Rugged Plastic Case (C-200)		Metal Carrying Case (CM-330)

Tech Specs

Test Equipment General Attributes
Shipping Weight	1 LBS
Country of Origin	France
