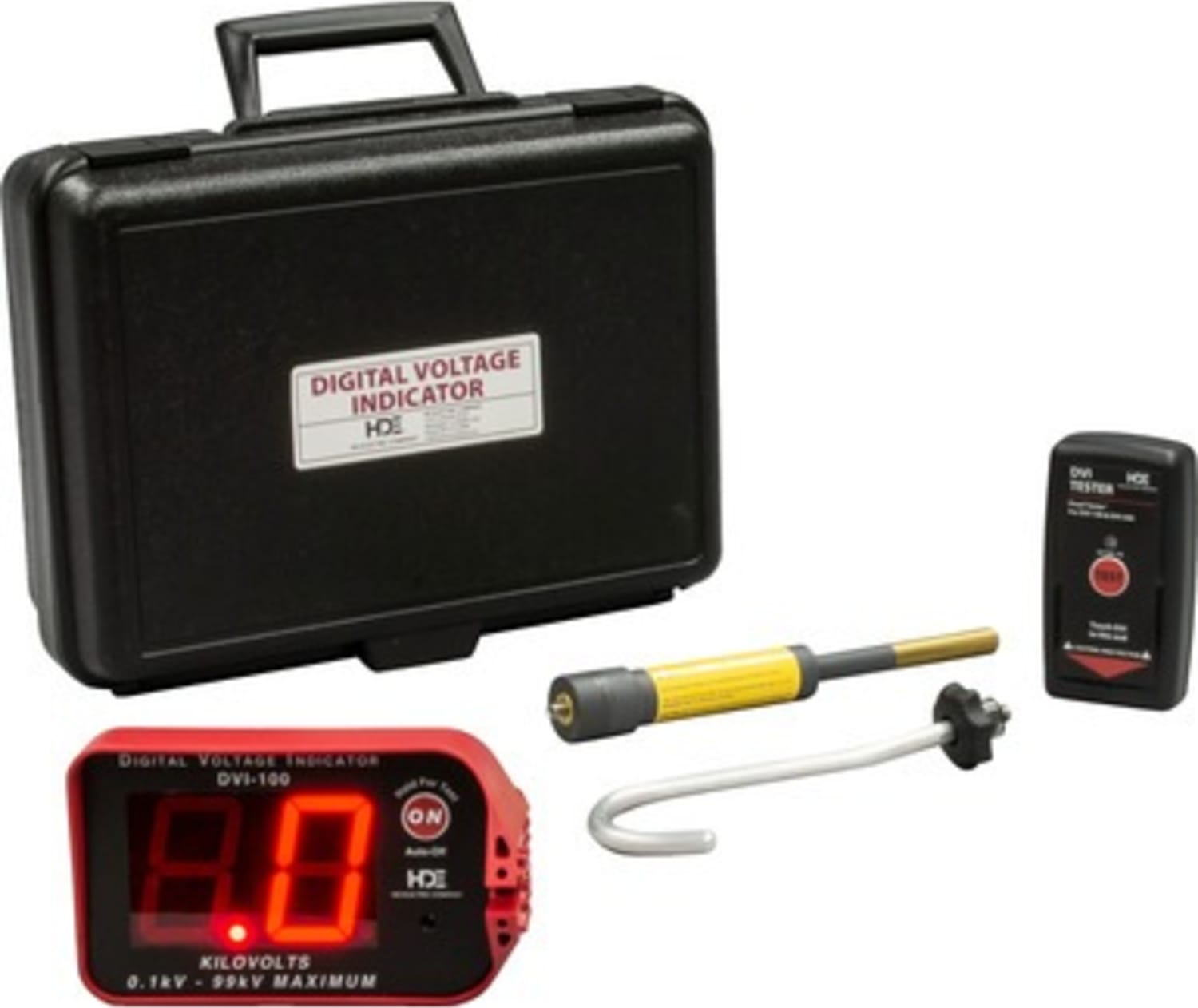

Digital Voltage Indicator w/Test Point 100kV, OH/UG Kit 2
Measures voltage up to 99kv line-to-ground with the Voltage readout distinguishes between nominal and induced voltages. Audible indication when voltage is detected and the test point mode with Auto-shutoff and low battery indication. Versatile for overhead and underground applications.
- Indicates Voltage up to 99kV with Capacitive Test Point Mode
- Easy to read in bright or dark conditions
- Built-in self-test to verify proper operation
- For use on system voltages up to 161kV (reads up to 99kV line-to-ground)
- Large auto-ranging LED display indicates the line-to-ground voltage level
- Audible indication when voltage is detected
- Auto-shutoff with low battery function
- Compact, rugged, and lightweight polycarbonate housing
- Kits are available; contact the factory for details
- Voltage readout allows the user to distinguish between the nominal and induced voltage
- Measure Elbow Test Points with the DVI-100T (underground probe required)
- Powered by a field-replaceable 9V lithium or alkaline battery
- No range selector switch or settings required
- Use on overhead lines or in underground applications with a bushing probe
- Built-in universal spline for standard hot stick attachment
- LEDs operate in extreme temperatures
