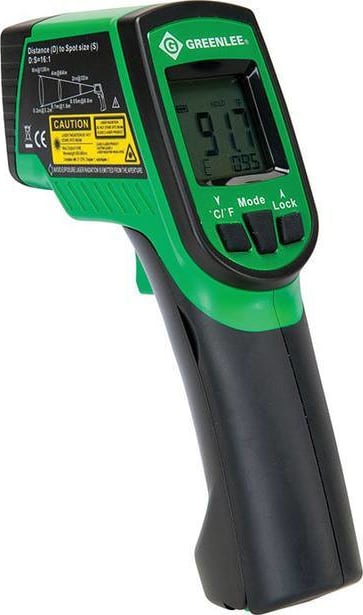

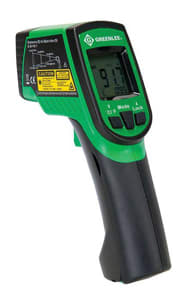

Greenlee TG-2000 - Dual Laser Infrared Thermometer

The Greenlee TG-2000 Infrared and Contact Thermometer is a hand-held surface temperature sensing device. The non-intrusive measuring capability of this unit is safer and quicker than other methods, and is well suited to checking the surface temperature of circuit breakers, motors, HVAC/R equipment, engines, etc.

This device measures surface temperature by gathering three forms of infrared energy — emitted, transmitted, and reflected — from an object and translating that energy into a temperature.

This temperature instrument includes the following features:

• Dual laser sighting. The two lasers indicate the approximate diameter of the measurement area.
• User-adjustable high and low temperature alarms.
• Automatic recording of maximum, minimum, difference, and average temperatures while making measurements.
• Probe jack. Allows the thermometer to measure contact temperature using any K-type thermocouple with a standard mini connector.
• Lock mode. Allows long-term measurements without holding the trigger. The lasers are turned off in Lock mode unless the trigger is held down.

SAFE, QUICK, CONVENIENT TEMPERATURE READINGS.

Infrared thermometers provide speed, convenience, accessibility and safety when taking temperature measurements. The new TG-2000 feature the high optical performance, measurement accuracy and quality necessary for the professional. IR thermometers include the capability to display temperature in either Fahrenheit or Celsius, vivid backlight displays, digitally adjustable emissivity, adjustable high-low temperature alarms, plus minimum, maximum, difference and average functions. The Type-K thermocouple input on the TG-2000 provides the accuracy needed for critical measurements of metallic objects, internal temperatures and ambient temperatures, with the flexibility of choosing probe styles for the task at hand.

Why Use IR Thermometers in my Application?

Temperature is often the first indication of a developing problem and IR thermometers can be used as a screening technique for situations that may require further analysis with other Greenlee tools such as a digital multimeter or clamp meter. A non-contact IR thermometer allows you to stay a safe distance from the object and get the most accurate readings across a wide range of temperatures.

Where Can IR Thermometers be Used?

Some environments where IR thermometers are used include: Industrial, HVAC/R, Electrical, Utility and MRO/Facility Maintenance.
