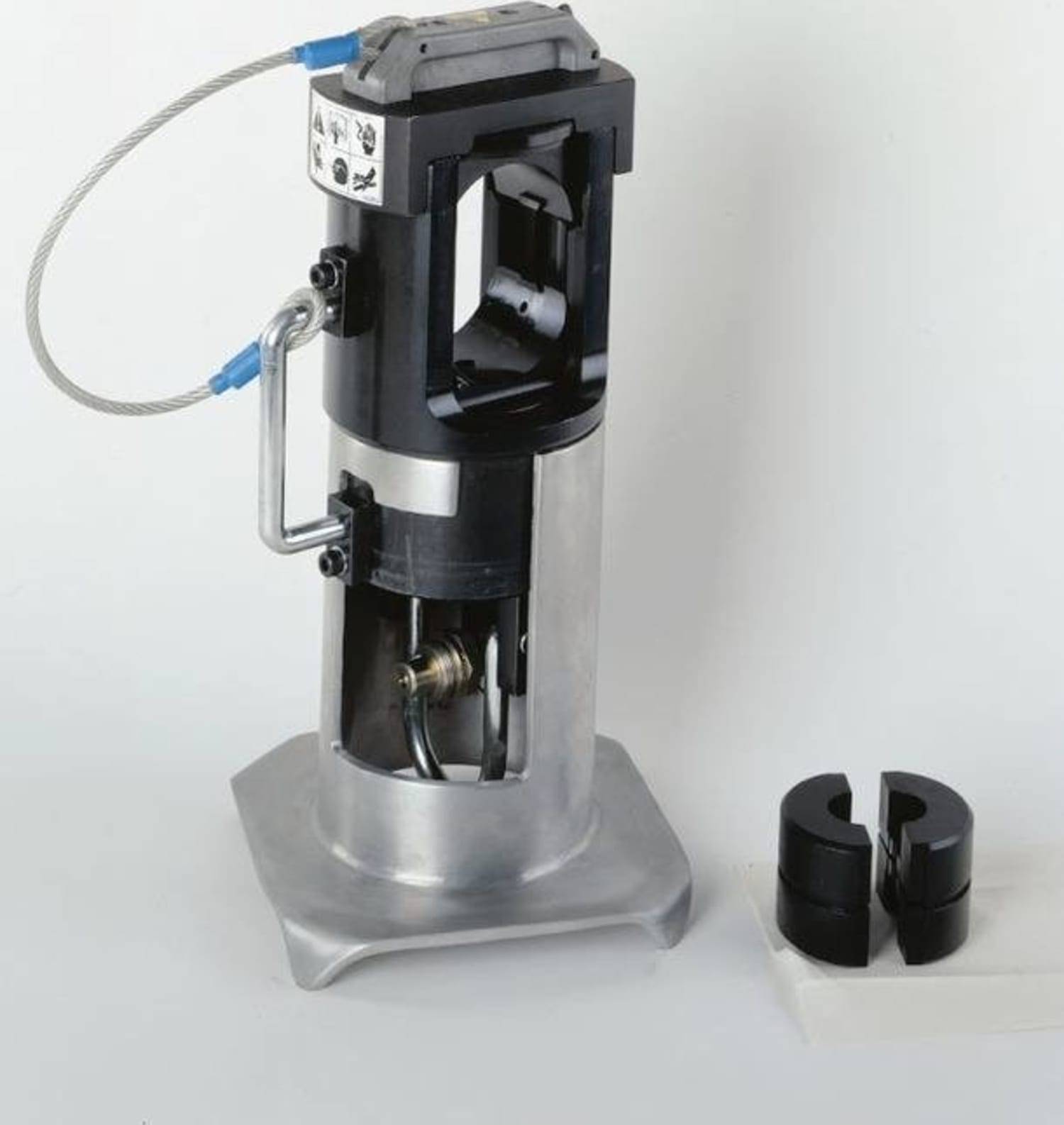

Greenlee RK6040 - 60-Ton Crimping Tool, Single Acting

Name: Greenlee RK6040 - 60-Ton Crimping Tool, Single Acting
Brand: Greenlee
SKU: GreenleeRK6040
Price: 3792.23 USD
Availability: InStock

0 reviews | Catalog: 50106040 | UPC: 783310106043 | Model: Greenlee RK6040

Compare

CRIMPER, 60-TON

Ideal tool for use in substation and transmission construction
Accepts Burndy L dies and Alcoa 6000 Series crimping dies
After completing a connection, the top of the head easily swivels 90° and can be lifted from the tool to remove the connector
Removing the tool from the stand exposes a lifting eye for when the tool must be used above ground level
RK6040 requires 10,000 psi (700 bar) single-acting hydraulic power source
DK6040 requires 10,000 psi (700 bar) double-acting hydraulic power source
Equipped with 3/8 IN screw type hydraulic couplers

View Product Details

List Price: $4,718.90

Your Price: $3,792.23

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Greenlee RK6040 - 60-Ton Crimping Tool, Single Acting

Greenlee 60-Ton Crimping Tool, Single Acting

Accepts Burndy L dies and Alcoa 6000 Series crimping dies
Removing the tool from the stand exposes a lifting eye for when the tool must be used above ground level
RK6040 requires a 10,000 psi (700 bar) single-acting hydraulic power source
DK6040 requires 10,000 psi (700 bar) double-acting hydraulic power source

The Greenlee 60-ton, Single-acting, Die-type Crimping Tool is intended to crimp sleeves and lugs using industry-standard dies. The single-acting ram requires hydraulic pressure to advance and uses an internal spring to return.

This crimping tool requires an external 700 bar (10,000 psi) hydraulic power source, such as Greenlee 975, 976-22, 980, and 980-22. It may also be powered using a hydraulic intensifier capable of developing 700 bar (10,000 psi), such as the Greenlee Dynapress.

Greenlee RK6040 Specifications
Application	For use in Substation and Transmission Construction
Capacity	300 -2000 KCMIL Copper Stranded Code Cable 250 - 2000 KCMIL Aluminum Stranded Code Cable 1/0 AWG - 1000 KCMIL Copper Tension Sleeves 1/0 AWG - 2300 KCMIL Aluminum Tension Sleeves 1/0 AWG - 2156 (Bluebird) KCMIL ACSR Tension Sleeves 4/0 AWG - 2500 KCM
Crimping Force	120000.000 LB (530.000 KN) At 10000 PSI
Height	17" (432 mm)
Includes	Steel Carrying Case With Storage Space For Dies
Oil Volume Required	0.75 PT (312 CC)
Operating Pressure	10000 PSI (700 BAR)
Type	Single Acting
Weight	45 lbs (20 kg)
Width	6" (153.000 mm)

Tech Specs

Tools/Crimpers Template
Crimper Tonnage	60
Capability	Crimp
Test Equipment General Attributes
Product Weight	45 LBS
Product Height	17 IN
Product Width	6 IN
Shipping Weight	81.80 LBS
Country of Origin	Taiwan
