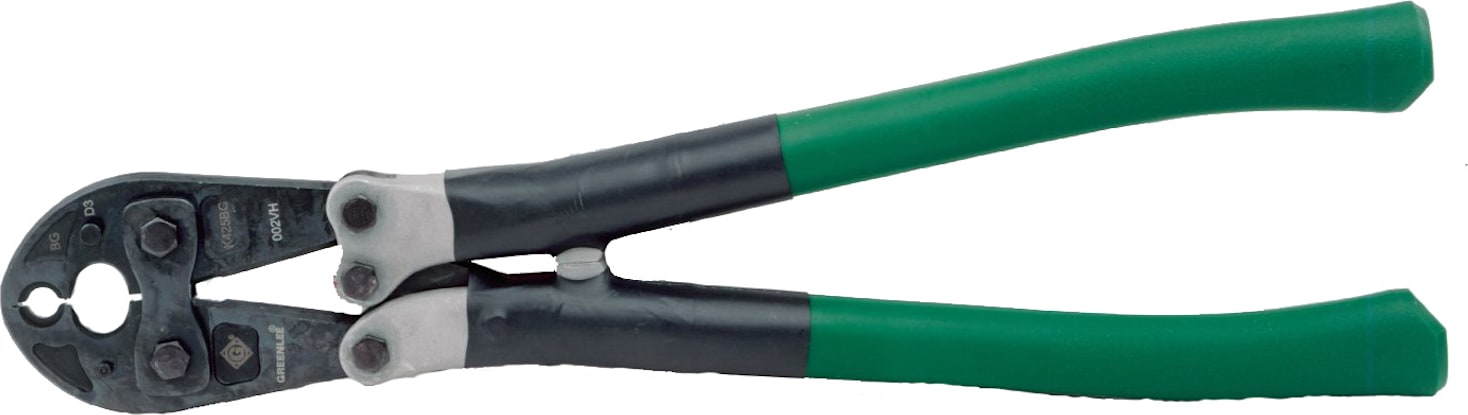

Greenlee K425O Crimp Tool, Mechanical (k425o)

Name: Greenlee K425O Crimp Tool, Mechanical (k425o)
Brand: Greenlee
SKU: GreenleeK425O
Price: 364.73 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Catalog: 50020641 | UPC: 783310020646 | Model: Greenlee K425O

Compare

CRIMP TOOL, MECHANICAL (K425O)

Designed for crimping a wide range of overhead service entrance connections, overhead splices, and overhead taps
Easy-to-use MD-6 type "pop" tool, K425 tools are equipped with D³ die groove and either "BG" or "O" die groove
K425K tools are equipped with a die groove for Kearney "O" dies and either a 5/8 IN or "O" die groove
The D³ die groove serves as a die seat for all Greenlee KD6 and industry "W" type dies
Bent fiberglass handles provide a solid grip, good leverage and better durability than wood
Low friction-impregnated bushings at pivot joints provide smooth operation and long life
Complete crimps are assured with an over-center cam mechanism
Tool can easily be checked visually for proper adjustment and can be adjusted with Allen wrenches

View Product Details

List Price: $453.85

Your Price: $364.73

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

The K425O Mechanical Crimping Tools are hand-operated tools that use permanent die grooves and/or insertable W-type dies. These tools have two permanent die grooves, either a “BG” or “O”, and a “D 3 ” for distribution tap connectors. The “D 3 ” groove also serves as a seat for W-type die inserts to install additional connector types. The die inserts snap into a permanent “D 3 ” groove easily with one hand and are secured with the spring-loaded, positive lock, die retaining buttons.

General Specifications
Application	For Crimping A Wide Range Of Overhead Service Entrance Connections, Overhead Splices, And Overhead Taps
Crimping Force	9000.000 LB (40.000 KN)
Includes	D3 And O Die Grooves
Overall Length	25-3/8 IN (645.000 MM)
Type	Manual
Weight	7.100 LB (3.200 KG)

Tech Specs

Test Equipment General Attributes
Product Height	3.00 IN
Product Length	26.00 IN
Product Width	8.00 IN
Country of Origin	Taiwan
Shipping Height	3.00 IN
Shipping Length	26.00 IN
Shipping Width	8.00 IN
