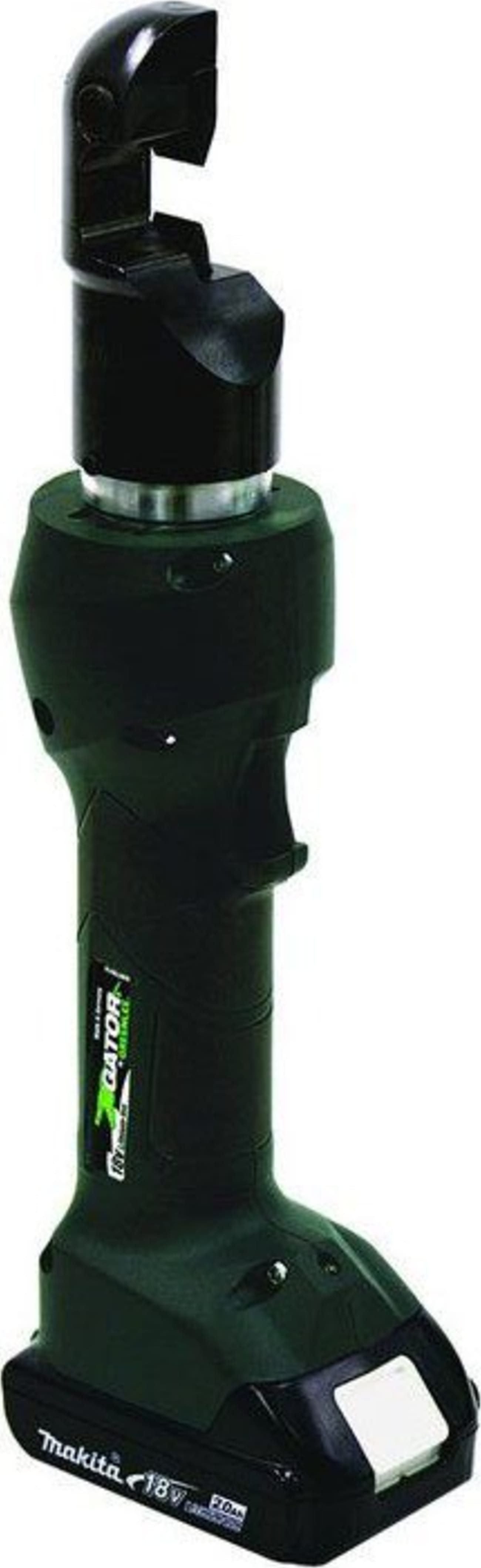

Greenlee ETS12LX12 - 12mm Cable Tray / Bolt Cutter, with Two Batteries and 12V Charger

The Greenlee ETS12LX is a cable tray and bolt cutter with a 12mm jaw. It is designed to cut one-time disposable locks, shipping container seals, small diameter bolts, and more. Please see below for a list of cutting capacities.

A built-in LED screen displays pressure levels as well as tool diagnostics and real-time tool feedback. One trigger controls all tool functions and the tool automatically retracts when the cutting cycle is complete.

The cutting head can rotate 350 degrees and an over-molded tacky grip area makes gripping the tool easier and more comfortable. It also contains an LED work light to illuminate dark work areas.

Cutting capacities

The ETS12LX is capable of cutting the following:

• Common bolt: 1/2" diameter
• Grade 5 bolt: 7/16" diameter
• Grade 8 bolt: 5/16" diameter
• Threaded rod: 1/2" diameter
• One-time disposable lock 4 AWG Alumoweld
• Boa lock: BL-9
• Grade 40 rebar: 3/8" diameter
• Steel rod: 3/8" diameter (1/2" diameter using two cycles)
• Ground rod: 3/8" diameter (1/2" diameter using two cycles)
• Copper and aluminum cable: 2/0 AWG
• ACSR: 3/0 AWG Pigeon (4/0 AWG Pigeon using two cycles)
• Guy Strand: 5/16" diameter (3/8" diameter using two cycles)
• EHS Guy Strand: 5/16" diameter
• Aircraft cable: 1/4" diameter

Several power source options

This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord, or neither.

• Battery-powered (denoted by 11, 12, 22)
  • Includes two batteries
  • Three options for charger voltage (12V, 120V, 230V)
  • The adapter for corded operation is available as an optional item - it snaps on just like a battery, but has a plug coming off of it
    • 120V = part number EAC18120
    • 230V = part number EAC18230
• Power cord (denoted by 120, 230)
  • Does not include batteries or a charger
  • Two voltage options (120V, 230V)
  • These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
• Bare (denoted by B)
  • ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
  • Does not include batteries, a charger, or a power cord
