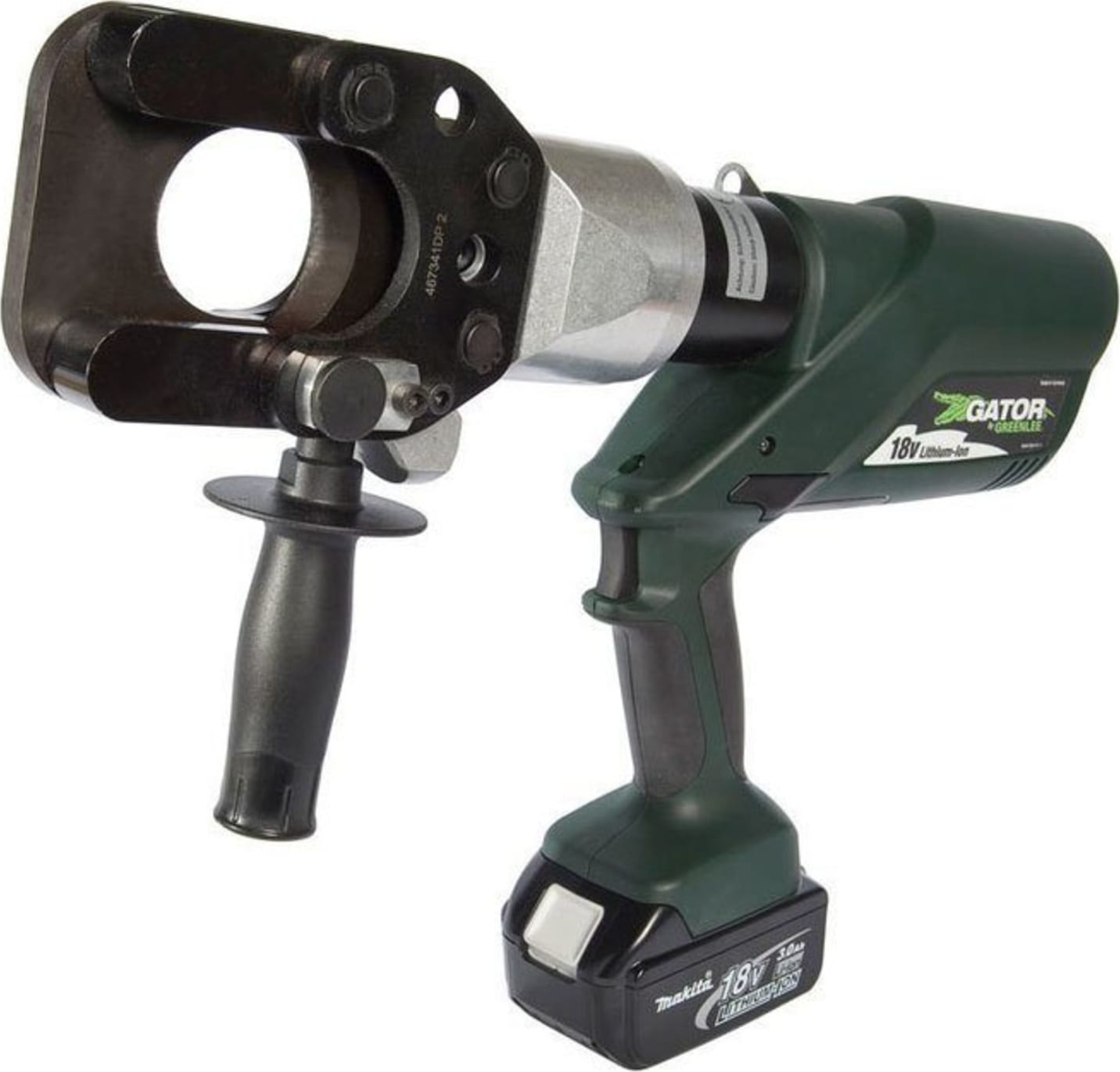

Greenlee ESG55L11 - Cutter, ACSR BAT, 120V Charger

Name: Greenlee ESG55L11 - Cutter, ACSR BAT, 120V Charger
Brand: Greenlee
SKU: GreenleeESG55L11
Price: 4166.37 USD
Availability: InStock

0 reviews | Catalog: 52057010 | UPC: 783310130062 | Model: Greenlee ESG55L11

Compare

CUTTER, CABLE BAT 120V CHRGR

The ESG55L with a 2-1/8" capacity is designed to cut the largest ACSR cables, ground rods and guy strands
It makes an excellent tool for transmission construction and maintenance crews
Designed specifically to cut ACSR, guy strand and ground rods
State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
Retraction Stop allows the operator to stop the ram retraction at any point simply by tapping the trigger, and then starting the next cutting cycle from that point saving time and energy
LED light provides the operator with the battery charge and tool maintenance status
Two-stage hydraulic system provides fast advance and power speeds, saving time
Forward handle position improves tool balance
One trigger controls all tool functions
Cutting head rotates 350°
LED work light illuminates dark work areas
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
U.S. Patents #6,206,663 and #6,065,326

View Product Details

List Price: $5,472.48

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Greenlee ESG55L11 - Cutter, ACSR BAT, 120V Charger

It makes an excellent tool for transmission construction and maintenance crews
Designed specifically to cut ACSR, guy strand and ground rods
Two-stage hydraulic system provides fast advance and power speeds, saving time
Cutting head rotates 350°

Greenlee's Battery-powered Pistol Grip Cable Cutters are hand-held tools intended to cut the following:

ESG45L: ACSR and guy strand
ESG50L: Copper and aluminum cable up to 2" (50 mm) in diameter. This tool is intended to cut most low and medium voltage copper and aluminum cable found on most job sites
ESG55L: ACSR and guy strand
ESC85L: Copper and aluminum cable up to 3.3" (85 mm) in diameter. This tool is intended to cut most low and medium voltage stranded copper and aluminum cable
ESC105L and ESG105LU: Copper and aluminum cable up to 4.13" (105 mm) in diameter. This tool is intended to cut most low and medium voltage stranded copper and aluminum cable as well as lead or soft steel armored cable found on job sites.

These tools have a retraction stop feature, which allows the operator to stop the retraction motion of the ram to shorten cycle time.

This group is the EGS55L series. There are several power options available:

CAT. NO.	UPC NO.	DESCRIPTION
ESG55L11	13006	Cutter, ACSR BAT, 120V Charger
ESG55L12	13007	Cutter, ACSR BAT, 12V Charger
ESG55L22	13008	Cutter, ACSR BAT, 230V Charger

Specifications
Length	18-1/8" (460 mm)
Width	3-1/8" (80 mm)
Height	13-1/4" (337 mm)
Weight	17.5 lb. (8 kg)
Battery	18V 3.0 Ah Li-ion
Est. Cycles Per Charge	80
Capacity	Max Diameter: 2-1/8"
ACSR	2515 kcmil (Joree 76/19)
Guy Strand	5/8" (16 mm)
EHS Guy Strand	9/16" (14 mm)
Ground Rod	3/4" (19 mm)
Rebar (Schedule 60)	5/8" (16 mm)
Soft steel bolts	3/4" (19 mm)
