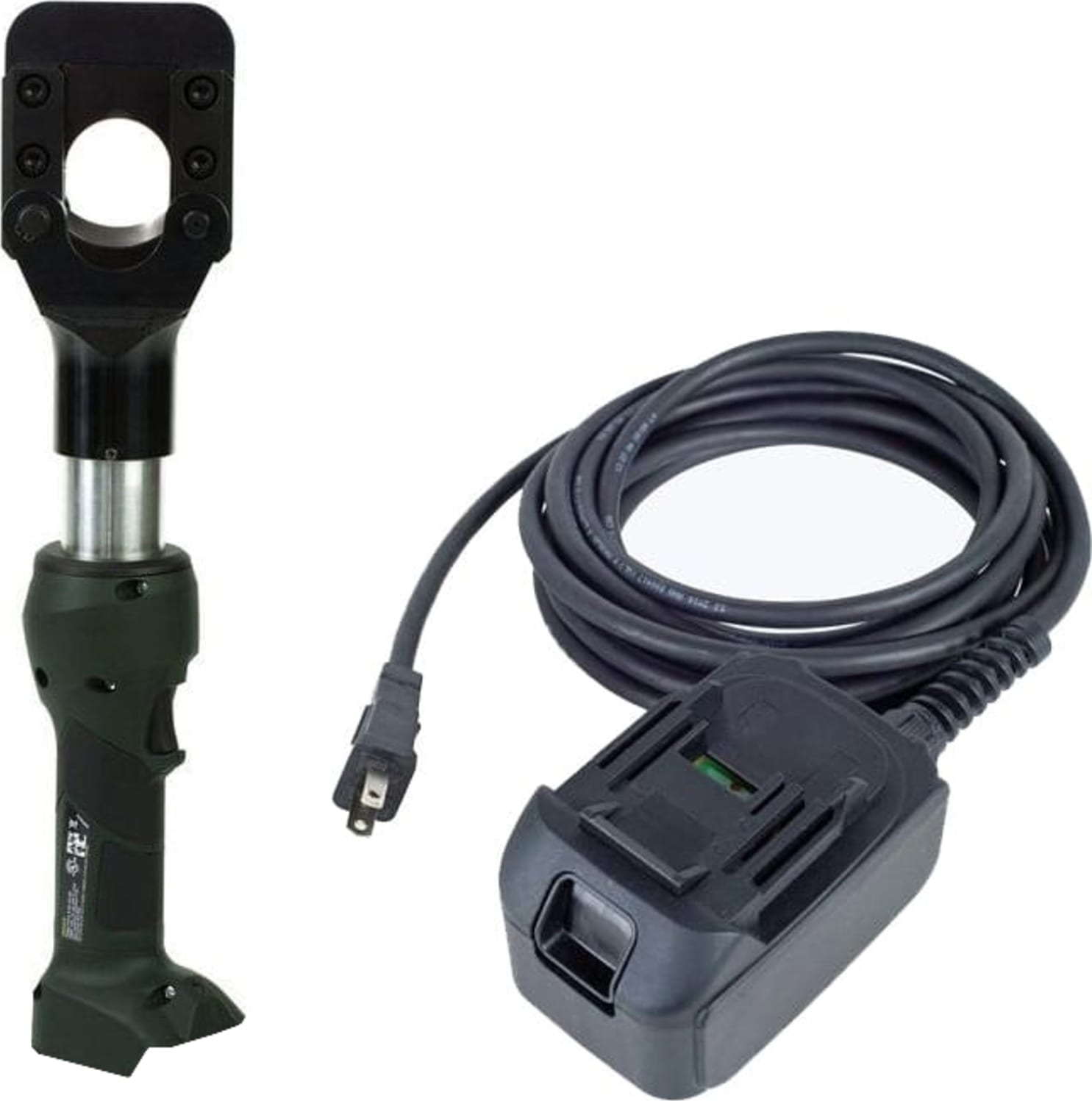

Greenlee ESG45LX230 - 45mm ACSR Cutter, with 230V Corded Adapter (Does Not Include Batteries/Charger)

The Greenlee ESG45LX is an inline cutting tool with 45mm jaw, designed specifically to cut ACSR, guy strand, ground rods and more. The Retraction Stop feature allows the operator to stop the ram retraction at any point simply by tapping the trigger, and then starting the next cutting cycle from that point saving time and energy. A two‑stage hydraulic system provides fast advance and power speeds and one trigger controls all tool functions.

The cutting head rotates 350 degrees and the tool will automatically retract when the cutting cycle is complete.

To view the Greenlee cutting tool selection guide, please click here

Cutting capacities

The ESG45LX has the following cutting capacities:

• ACSR: 1590 kcmil
• Standard Guy Strand: 5/8" (16 mm)
• EHS Guy Strand: 1/2" (13 mm)
• Ground rod: 5/8” (16mm)
• Rebar (schedule 60): 1/2" (13 mm)

Several power source options

This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.

• Battery powered (denoted by 11, 12, 22)
  • Includes two batteries
  • Three options for charger voltage (12V, 120V, 230V)
  • Adapter for corded operation is available as an optional item - it snaps on just like a battery, but has a plug coming off of it
    • 120V = part number EAC18120
    • 230V = part number EAC18230
• Power cord (denoted by 120, 230)
  • Does not include batteries or a charger
  • Two voltage options (120V, 230V)
  • These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
• Bare (denoted by B)
  • ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
  • Does not include batteries, a charger or a power cord

This chart below provides an overview of items in this series.
