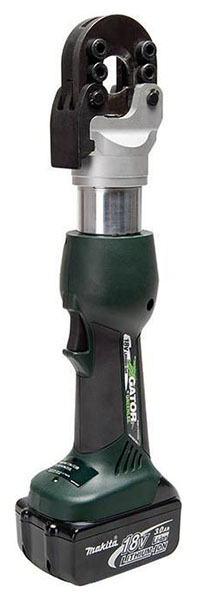

Greenlee ESG25L22 - Cutter, ACSR BAT, 230V Charger

Name: Greenlee ESG25L22 - Cutter, ACSR BAT, 230V Charger
Brand: Greenlee
SKU: GreenleeESG25L22
Price: 2579.24 USD
Availability: InStock

0 reviews | Catalog: 12384 | UPC: 783310123842 | Model: Greenlee ESG25L22

Compare

CUTTING TOOL, 230V CHRGR

Designed primarily to cut distribution ACSR cable
Powerful state of the art 18V lithium ion (Li-ion) battery
LED light provides the operator with the battery charge and tool maintenance status
In line tool style is light weight and very easy to control
One trigger controls all tool functions
Cutting head rotates 350°
Tool automatically retracts when the cutting cycle is complete
Overmolded tacky grip areas make gripping the tool easier and more comfortable
LED work light illuminates dark work areas
Uses bio-degradable oil
Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life

View Product Details

List Price: $3,387.82

In Stock:

View Payment Options

Recommended for you

Greenlee ESG25L22 - Cutter, ACSR BAT, 230V Charger

ESG25L22

In line tool style is light weight and very easy to control
Designed primarily to cut distribution ACSR cable
One trigger controls all tool functions
Tool automatically retracts when the cutting cycle is complete

Greenlee's Battery-powered In-line Cutters are hand-held, self-contained cutting tools intended to cut the following:

ES20L ACSR Cutter: Copper and aluminum cable up to 3/4" (19 mm), 336 ACSR, 3/8" reinforcement bar (rebar), and 3/8" stranded guy wire. It is not intended for use on EHS guy wire
ES32L Cable Cutter: Aluminum and copper cable only
ES32FL Cable Cutter: Fine stranded cable only
ETS8L Cable Tray Cutter: Wire, basket-style cable trays up to 0.31" (8.0 mm) diameter
ETS12L Single Use Lock Cutter and Bolt Cutter: Bolts, steel rods, one-time disposable locks, and sea container seals or similar soft metal devices.
ESG25L Cable Cutter: Copper and aluminum cable up to 1" (25 mm), 636 ACSR, 3/8" reinforcement bar (rebar), 5/8" stranded guy wire and 1/2" wire rope. It is not intended for use on EHS guy wire.

This group is the ESG25L series. There are several power options available:

CAT. NO.	UPC NO.	DESCRIPTION
ESG25L11	12383	Cutter, ACSR BAT, 120V Charger
ESG25L12	12387	Cutter, ACSR BAT, 12V Charger
ESG25L22	12384	Cutter, ACSR BAT, 230V Charger

Specifications
Length	15" (381 mm)
Width	2-7/8" (73 mm)
Height	4-1/2" (114 mm)
Weight	4.6 lbs (2 kg)
Battery	18V 3.0 Ah Li-Ion
Est. Cycles Per Charge	100
Capacity	Max Diameter 1" (25 mm)
ACSR	636 kcmil (Grosbeak)
Guy Strand (not EHS)	5/8" 16 mm)
Ground Rod	3/8" (9 mm)
Rebar (Schedule 60)	3/8" (9 mm)
Wire Rope	1/2" (13 mm)
