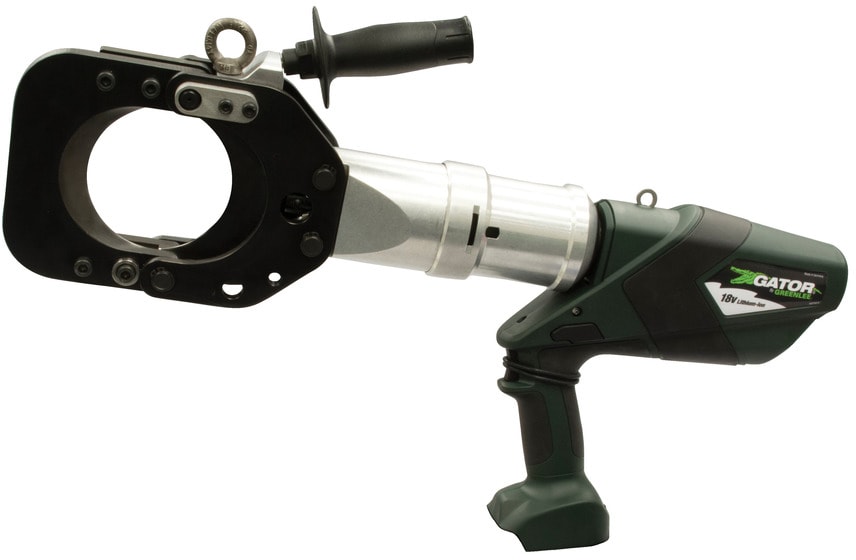

Greenlee ESG105LXRB - 105 mm Gator Remote Guillotine Cable Cutter, Bare Tool Only

Name: Greenlee ESG105LXRB - 105 mm Gator Remote Guillotine Cable Cutter, Bare Tool Only
Brand: Greenlee
SKU: GreenleeESG105LXRB
Price: 5151.32 USD
Availability: InStock

0 reviews | Catalog: 52087770 | UPC: 783310047780 | Model: Greenlee ESG105LXRB

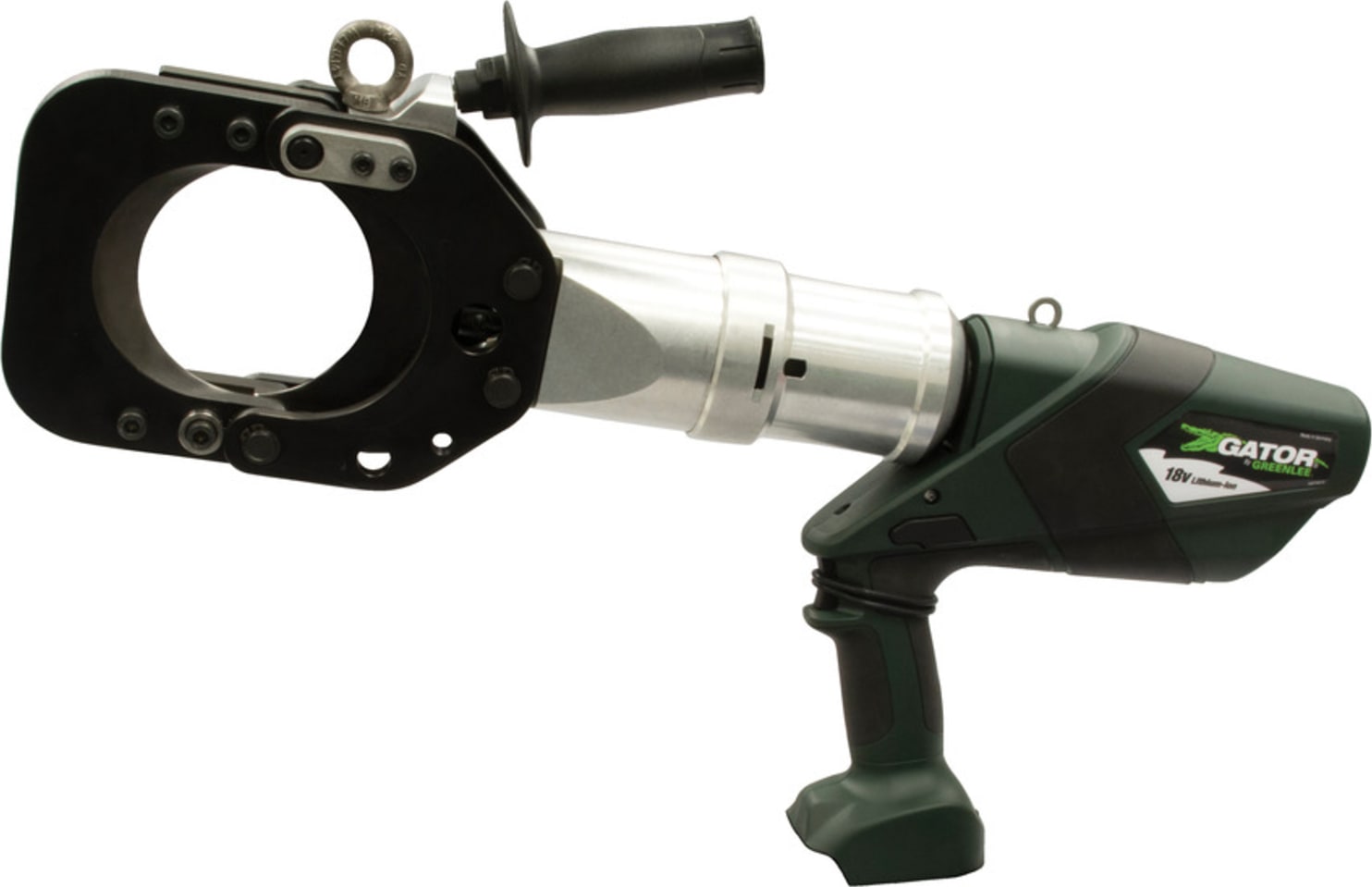

Greenlee ESG105LXRB - 105 mm Gator Remote Guillotine Cable Cutter, Bare Tool Only Right Side View

Compare

CTR CABLE, 105 MM RMT BP, BARE

Includes 105 mm remote cable cutter, remote control, rigging harness, metal case
BARE VERSION - DOES NOT INCLUDE BATTERIES, CHARGER OR POWER SUPPLY
Remote control cable cutter with end position blade recognition
Can be used in either hand held or remote configuration
Flip-top jaw and guillotine style cutting head secures conductor
Cutting capacity of up to 4.13"
Cutting head rotates 350°
Select between Hand-Held Manual and Remote usage options
LED level indicator on battery and built-in tool self-test confirms the ability to complete cut
Mechanical break stops residual blade travel when the trigger is disengaged
Double tap trigger operation protects unintentional blade engagement

View Product Details

List Price: $6,386.10

Your Price: $5,151.32

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Greenlee ESG105LXRB CTR CABLE, 105 MM RMT BP, BARE	Greenlee ESG105LXR11 CTR CABLE, 105 MM RMT BP, 120V	Greenlee ESG105LXR12 105mm Gator Guillotine Remote Cable Cutter, 12V Charger	Greenlee ESG105LXR22 CTR CABLE, 105 MM RMT BP, 230V
Price
In Stock
Cable Type	Round	Round	Round	Round
Insulated	No	No	No	No
Capability	Cut/Strip	Cut/Strip	Cut/Strip	Cut/Strip
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Greenlee ESG105LXRB - 105 mm Gator Remote Guillotine Cable Cutter, Bare Tool Only

Includes 105 mm remote cable cutter, remote control, rigging harness, metal case
Remote control cable cutter with end position blade recognition
Can be used in either hand held or remote configuration
Flip-top jaw and guillotine style cutting head secures conductor
Cutting capacity of up to 4.13"

The ESG105LXR was developed in unison with utility professionals, creating a method to "remove the target" from the test area when cutting electric cables. Unlike overhead electric power distribution systems, underground, shielded electric cable systems cannot be visually traced back to an open point to ensure the cable is isolated.

CUT CONFIRMATION End position blade sensor confirms cut is complete
ISOLATE AND CONTROL Flip-top jaw and guillotine style cutting head secures conductor
DUAL GROUNDING PORT Located on either side of head for set-up flexibility
BLUETOOTH® COMMUNICATION Connect with i-press® app to track tool performance
TOTAL OPERATOR CONTROL Remote Forward-Stop-Reverse the blade at any point
OLED SCREEN Select between Hand-Held Manual and Remote usage options
MAKITA® BATTERY PLATFORM 18V Li-Ion 4.0Ah battery provides more cycles per charge and charges in under 45 minutes

Greenlee ESG105LXRB Specifications
Sub Brand	Gator®
Type	Guillotine Remote Cutter
Application	Remote Cable Cutter
Standard	IEC - 62841-1
Cutting Edge	Soft Metal
Cutting Range	Max. Dia. with insulation = 4.13" (105 mm)
Jaw Size	Max. Dia. with insulation = 4.13" (105 mm)
Overall Length	23.75" (604 mm)
Handle Type	Pistol Configuration
Jaw Material	Hardened Steel
Finish	Black Oxide
*Greenlee® may make improvements and/or changes in the specifications of products at any time, in its sole discretion, without notice or obligation and further reserves the right to change or discontinue models.

Tech Specs

Tools/Crimpers Template
Cable Type	Round
Insulated	No
Capability	Cut/Strip
Test Equipment General Attributes
Product Weight	22 LBS
Product Height	13 IN
Product Length	26.00 IN
Product Width	21.00 IN
Shipping Weight	44.78 LBS
Country of Origin	Germany
Shipping Height	6.00 IN
Shipping Length	26.00 IN
Shipping Width	21.00 IN
