Greenlee ES20HVXB - 20mm Insulated In-Line ACSR Cutter (No Charger or Battery)

Name: Greenlee ES20HVXB - 20mm Insulated In-Line ACSR Cutter (No Charger or Battery)
Brand: Greenlee
SKU: GreenleeES20HVXB
Price: 2677.22 USD
Availability: InStock

0 reviews | Catalog: 52086713 | UPC: 783310040521 | Model: Greenlee ES20HVXB

Compare

CTR WIRE, V, 20MM, BARE (PVC)

Model ES20HVXB
Bare version (no charger or battery)
20mm cutter
1000V insulation

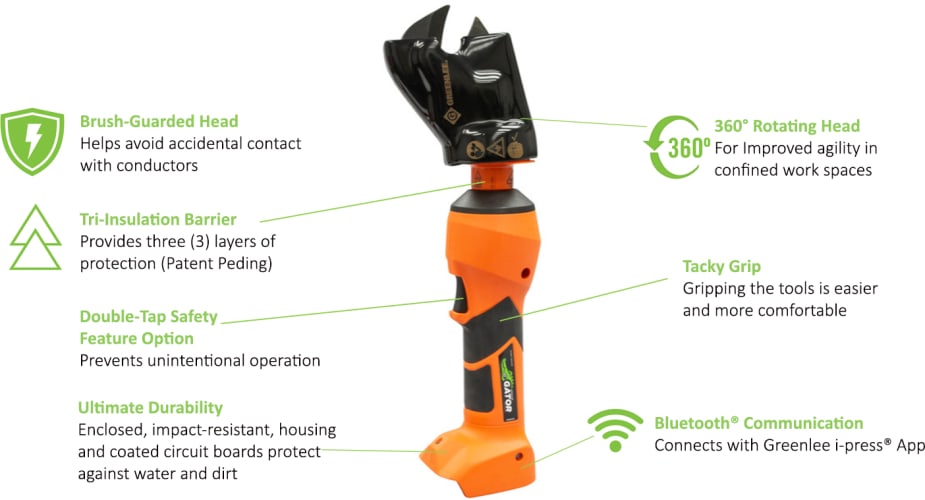

Brush guarded head - helps avoid accidental contact with conductors
Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending)
360° Rotating head - For improved agility in confined workspaces
Double -tap safety feature option - Prevents unintentional operation
Bluetooth communication Connects with Greenlee i-press App
Equipped with Intelli-crimp technology

View Product Details

List Price: $3,318.95

Your Price: $2,677.22

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Greenlee ES20HVXB CTR WIRE, V, 20MM, BARE (PVC)	Greenlee ES20HVX11 CTR WIRE, V, 20MM, 120V (PVC)	Greenlee ES20HVX12 CTR WIRE, V, 20MM, 12V (PVC)	Greenlee ES20HVX22 CTR WIRE, V, 20MM, 230V (PVC)
Price
In Stock
Insulated	Yes	Yes	Yes	Yes
Cutting Material	Hard metal	Hard metal	Hard metal	Hard metal
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Greenlee ES20HVXB - 20mm Insulated In-Line ACSR Cutter (No Charger or Battery)

Model ES20HVXB

Bare version (no charger or battery)
20mm cutter
1000V insulation
Brush guarded head - helps avoid accidental contact with conductors

The new Greenlee Gator Insulated Series battery powered hydraulic cutting and crimping tools feature a patent-pending design to help protect operators from electrical shock up to 1000V. Tri-Insulation Barrier impedes voltage from discharging between the head and tool body. Lower the operators level of movement and exertion, improving precision and safety in confined working conditions.

CAT.NO	UPC	Description
ES20HVX11	783310040491	20 mm Cutter, (PVC) 120V Charger, Two 4.0Ah Batteries
ES20HVX12	783310040507	20 mm Cutter, (PVC) 12V Charger, Two 4.0Ah Batteries
ES20HVX22	783310040514	20 mm Cutter, (PVC) 230V Charger, Two 4.0Ah Batteries
ES20HVXB	783310040521	20 mm Cutter, (PVC) Bare Tool Only

Sub Brand	Gator
Type	Scissor Style Cutter
Application	ACSR, Guy Strand, Steel
Standard	IEC 62481-1; VDE, CSA, MET Tested
Cutting Edge	Hard Metal, ACSR
Cutting Range	Max Diameter: 3/4" dia, ACSR: 336.4 kcmil Merlin, Standard Guy Strand: 3/8" dia, Ground Rod: 3/8" dia, Rebar (SCH 60): 3/8" dia, Soft Steel Bolts: 3/8" dia
Jaw Size	.78 IN (20mm)
Overall Length	15.25 (387mm)
Handle Type	In-line style with over molded rubber grip
Jaw Material	Hardened Steel

Tech Specs

Battery Powered Cable Cutters Template
Insulated	Yes
Cutting Material	Hard metal
Test Equipment General Attributes
Unique Features	20mm Insulated In-line ACSR Cutter 1000V insulation
Safety Approval	MET
Product Length	15.25 IN
Power Supply Voltage	Battery Powered
Country of Origin	Germany
