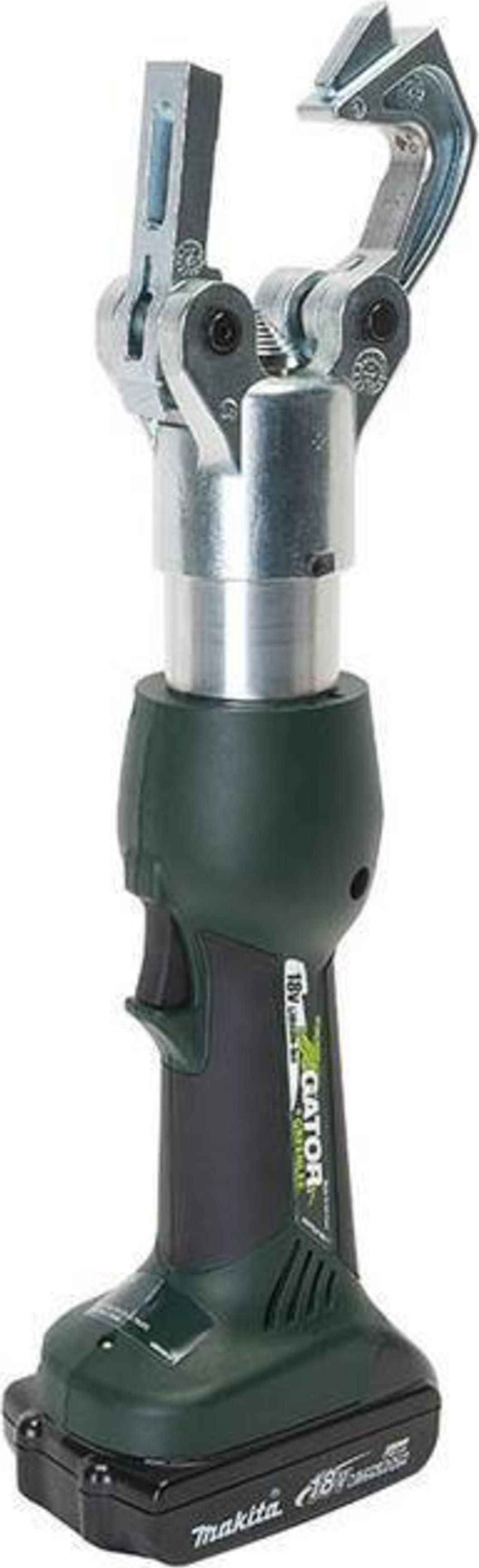

Greenlee EK6IDLB - Crimping Tool, Dieless, Bare

Name: Greenlee EK6IDLB - Crimping Tool, Dieless, Bare
Brand: Greenlee
SKU: GreenleeEK6IDLB
Price: 1629.22 USD
Availability: InStock

0 reviews | Catalog: 52067516 | UPC: 783310028321 | Model: Greenlee EK6IDLB

Compare

CRIMPING TOOL, DIELESS

EK6IDLB Crimping Tool, Dieless, Bare
The EK6IDL consists of two individual pistons (large exterior and a small interior one)
Dual stage telescopic cylinder
The interior small piston transmits a force of 30kN and features two functions
First it fixes cable lugs and connectors to the correct position prior to crimping operations
Secondly it crimps smaller cross sections up to 1/0 AWG
The large exterior piston transmits a force of 60kN and crimps all larger cross sections.
Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section.
Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM.
Compact design, low weight and heavy duty performance

View Product Details

List Price: $2,139.97

In Stock:

View Payment Options

Recommended for you

Greenlee EK6IDLB - Crimping Tool, Dieless, Bare

Dual stage telescopic cylinder
Secondly it crimps smaller cross sections up to 1/0 AWG
Low weight and heavy duty performance

The EK6ID offers all well known advantages of the Greenlee Gator line of products:

High capacity 18 V Li-Ion battery
Pressure sensor for the electronic control of crimping operation
Automatic retraction, ARS (Automatic Retraction Stop)
Single trigger operation
Extreme Accountability
Risk of wrong selection of dies is eliminated
Clear marking of crimped connectors enables subsequent control
Electronic control of crimping operation – Proven Intelli-Crimp technology of all Gator crimping tools
Gator Eye Compatibility

Greenlee EK6IDLB Specification
Application	Dieless Crimping
Battery	None - Bare Tool
Battery Charger	None - Bare Tool
Battery Charge Time	15 Minutes
Cable Type	Wire Classes B, C, G, H, I, K, M, and DLO
Capacity	Standard Stranded Wire classes - B, C Copper #8 - 500 kcmil (MCM) Aluminum 1/0 - 350 kcmil (MCM) Fine Stranded (Cu) Wire classes - G, H, I, K, M #8 - 350 kcmil (MCM) DLO (Cu) Locomotive #8 - 373.7 kcmil (MCM)
Crimp Cycle Time	Max. 7 seconds
Crimping Force	Variable 3-6 Ton (30-60Kn)
Estimated Cycles per Charge	100-300 based on cable size
Handle Type	Over molded rubber grip
Height	15"
Rotation	355 degrees
Sub Brand	Gator
Type	Indent crimper
Weight	5.5 lbs

Tech Specs

Tools/Crimpers Template
Capability	Crimp
Test Equipment General Attributes
Unique Features	Application: Dieless Crimping
Safety Approval	UL Safety Approval cUL
Product Weight	5.5 LBS
Product Height	15 IN
Battery Type	Li-ion Battery Type 18 V, 1.3 Ah
Power Supply Voltage	Battery Powered
Country of Origin	United States
UPC	783310028321
