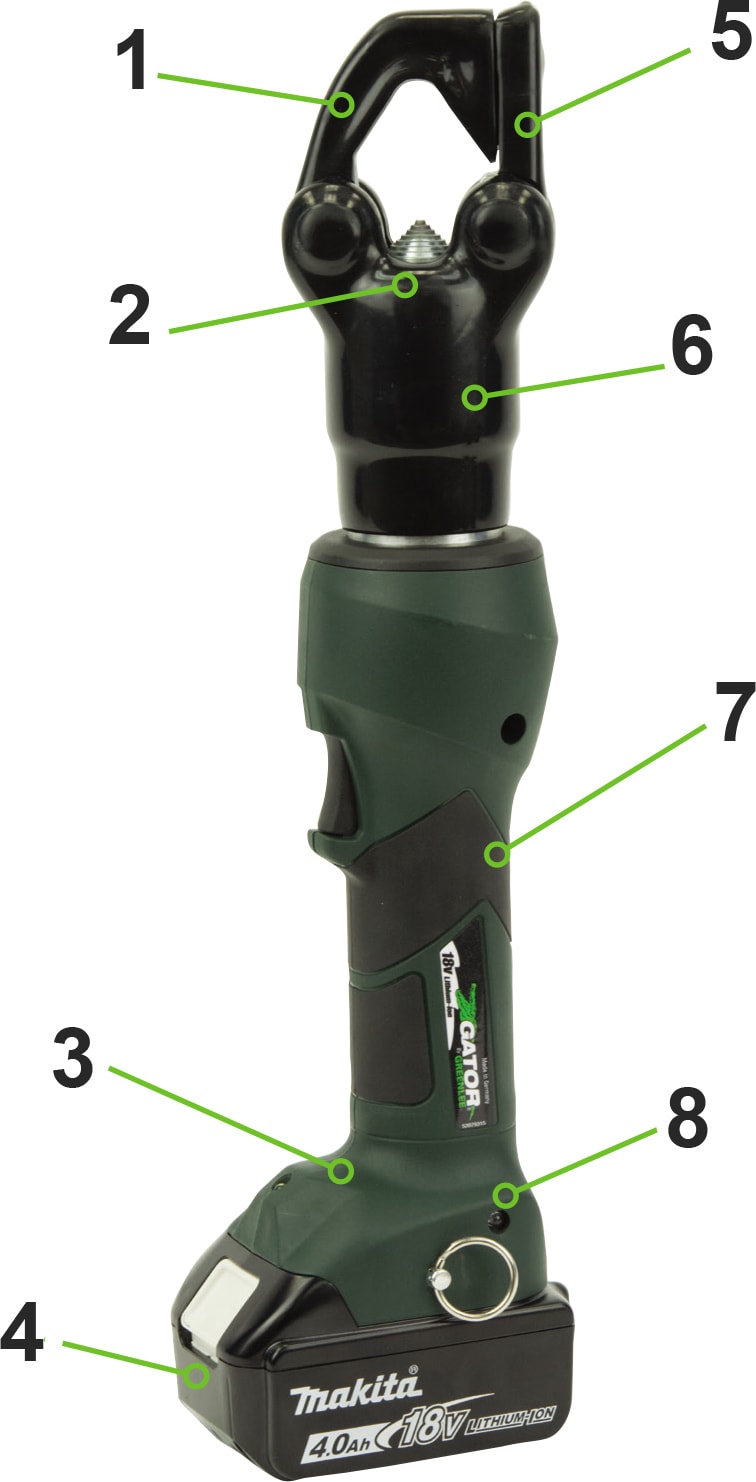

The Greenlee EK6IDCLX high speed dieless crimping tools are hand-held, self-contained and feature Bluetooth connectivity, which is enabled through the Gator Eye app. The head is coated with PVC for added safety to avoid accidental contact with conductors.
Dual stage telescopic cylinder
The EK6IDcL consists of two individual pistons (large exterior and a small interior one).
The interior small piston transmits a force of 30kN and features two functions. First it fixes cable lugs and connectors to the correct position prior to crimping operations. Secondly, it crimps smaller cross sections up to 1/0 AWG.
The large exterior piston transmits a force of 60kN and crimps all larger cross sections. Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section. Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM.
Several power source options

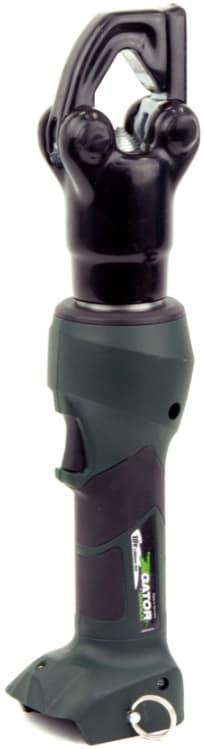

This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, B). The options are several voltage options for the battery charger. The Bare model does not include a power supply.
This chart below provides an overview of items in this series.
