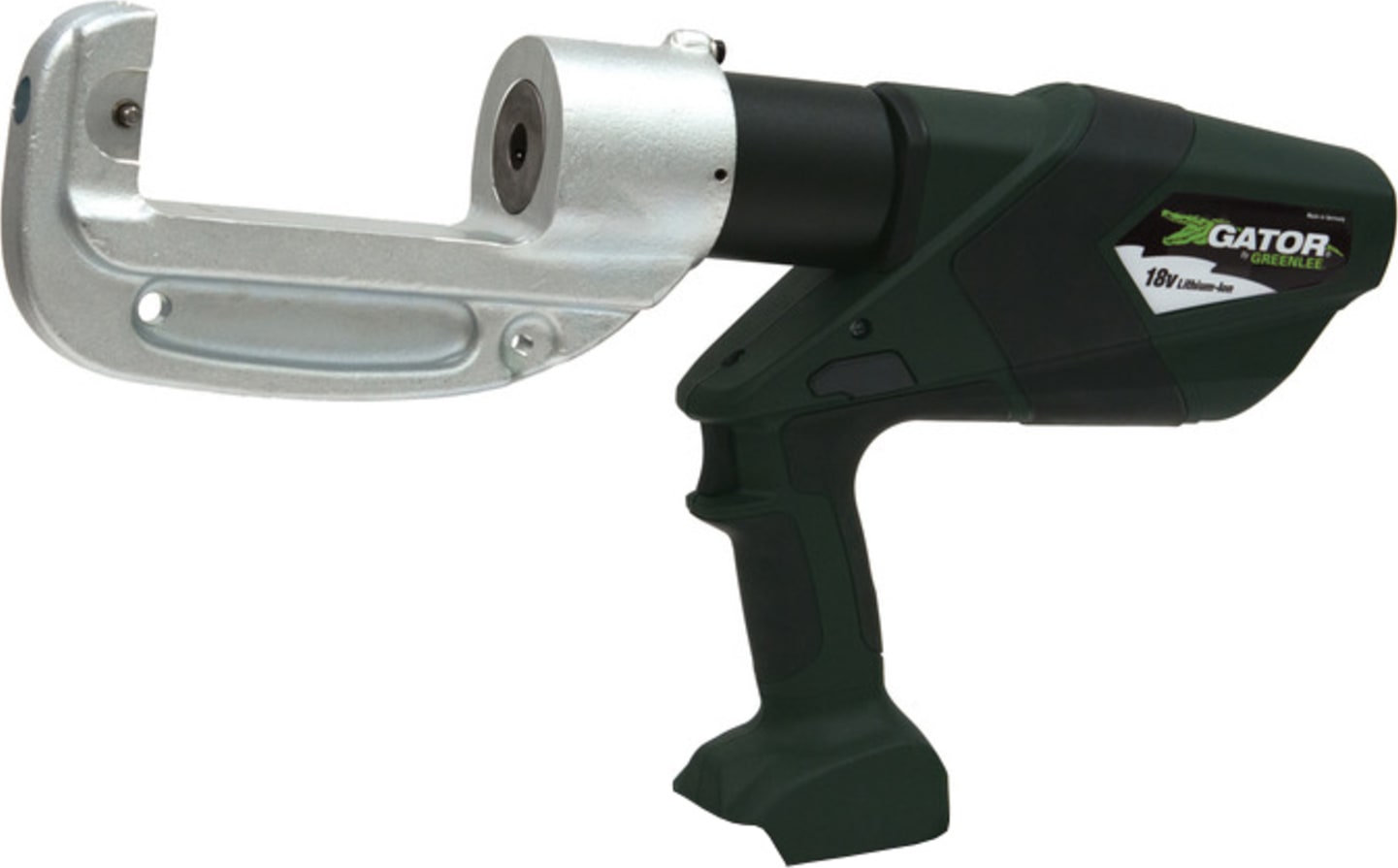

Greenlee EK1550LXB - 15 Ton Crimper (Kearney Style); Bare Model - Does Not Include a Power Supply

Name: Greenlee EK1550LXB - 15 Ton Crimper (Kearney Style); Bare Model - Does Not Include a Power Supply
Brand: Greenlee
SKU: GreenleeEK1550LXB
Price: 5093.81 USD
Availability: InStock

0 reviews | Catalog: 52078635 | UPC: 783310609759 | Model: Greenlee EK1550LXB

Compare

CRIMPER, 15T LI-ON, STD, BARE

15 ton crimper (Kearney style)
***BARE MODEL - DOES NOT INCLUDE A POWER SUPPLY***
***DOES NOT INCLUDE BATTERIES, CHARGER OR POWER CORD***
Several power options available - batteries, power cord, or without a power source
Accepts Kearney PH4/P14 dies without adapter
8 AWG -1550 kcmil Cu lugs and splices
8 AWG -1250 kcmil Al lugs and splices
Equipped with Intelli-CRIMP technology to monitor crimping force
Automatic Retraction Stop to aid in time and battery savings
Handle angle supports decreased wrist deviation and increased grip strength

View Product Details

List Price: $6,314.80

Your Price: $5,093.81

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Greenlee EK1550LXB CRIMPER, 15T LI-ON, STD, BARE	Greenlee EK1550LX11 CRIMPER, 15T LI, STD, 120V	Greenlee EK1550LX12 CRIMPER, 15T LI, STD, 12V	Greenlee EK1550LX120 CRIMPER, 15T LI, STD, 120V AC	Greenlee EK1550LX22 CRIMPER, 15T LI, STD, 230V	Greenlee EK1550LX230 CRIMPER, 15T LI, STD, 230V AC
Price
In Stock
Crimper Tonnage	15	15	15	15	15	15
Insulated	No	No	No	No	No	No
Wire Gauge Capability (List All)	8 AWG-Cu,AL	8 AWG-Cu,Al	8 AWG-Cu,Al	8 AWG-Cu,Al	8 AWG-Cu,Al	8 AWG-Cu,Al
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Greenlee EK1550LXB Accessories

Choose a Category

Accessories
Batteries and Chargers

for the Greenlee EK1550LXB

Greenlee 12274 STRAP, CARRYING

Catalog: 50122746

(0)

In Stock!

Add to Cart

Greenlee EAC18120 ADAPTER, AC - 120V TO 18V

Catalog: 52047087

(0)

In Stock!

Add to Cart

Greenlee EAC18230 ADAPTER, AC - 230V TO 18V

Catalog: 52047088

(0)

In Stock!

Add to Cart

Greenlee EK1550LXB - 15 Ton Crimper (Kearney Style); Bare Model - Does Not Include a Power Supply

15 ton crimper (Kearney style)
***BARE MODEL - DOES NOT INCLUDE A POWER SUPPLY***
***DOES NOT INCLUDE BATTERIES, CHARGER OR POWER CORD***
Several power options available - batteries, power cord, or without a power source
Accepts Kearney PH4/P14 dies without adapter

The Greenlee EK1550LX are hand-held, self-contained crimping tools intended to crimp aluminum and copper connectors onto electrical cable. These tools have a retraction stop feature which allows the operator to stop the retraction motion of the ram to shorten cycle time. The EK1550LX also contains Bluetooth connectivity, which is enabled through the Gator Eye app.

Several power source options

This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.

Battery powered (denoted by 11, 12, 22)
- Includes two batteries
- Three options for charger voltage (12V, 120V, 230V)
- Adapter for corded operation is available as an optional item - it snaps on just like a battery, but has a plug coming off of it
  - 120V = part number EAC18120
  - 230V = part number EAC18230
Power cord (denoted by 120, 230)
- Does not include batteries or a charger
- Two voltage options (120V, 230V)
- These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
Bare (denoted by B)
- ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
- Does not include batteries, a charger or a power cord

This chart below provides an overview of items in this series.

	Batteries and charger			Power Cord		None
	120V	12V	230V	120V	230V
EK1550LX11	✔
EK1550LX12		✔
EK1550LX22			✔
EK1550LX120				✔
EK1550LX230					✔
EK1550LXB						✔

Intelligence

Greenlee Gator crimping and cutting tools… investing in technology to improve productivity, safety and reliability

Monitors Pressure - 32 times every second to ensure proper force is applied at the crimping tool
Polices the Crimp - Alerts operator visually and audibly if cycle is not performed correctly
Retracts Automatically - Tool signals user that crimp is complete by retracting ram automatically
Saves Time - Smart tool minimizes the retraction distance after each cycle utilizing features such as Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle, saving time and energy. Another feature is Retraction Stop Repeat (RSR) which allows the operator to partially retract the ram repeating the retraction for subsequent crimps.

Standard	C/US UL Listed
Wire Size	8 AWG - 1000 Kcmil Cu & Al
Overall Length	19.625 IN (498mm)
Crimping Force	30,000 lbs. (134 kN)
Crimping Capacity	1000 Kcmil (MCM) Cu & Al
Connector Type	Color-coded lugs and splices
Handle Type	Pistol Style with over molded rubber grip

Tech Specs

Tools/Crimpers Template
Crimper Tonnage	15
Insulated	No
Wire Gauge Capability (List All)	8 AWG-Cu,AL
Test Equipment General Attributes
Product Height	7.00 IN
Product Length	23.00 IN
Product Width	19.00 IN
Country of Origin	Germany
Shipping Height	7.00 IN
Shipping Length	23.00 IN
Shipping Width	19.00 IN
