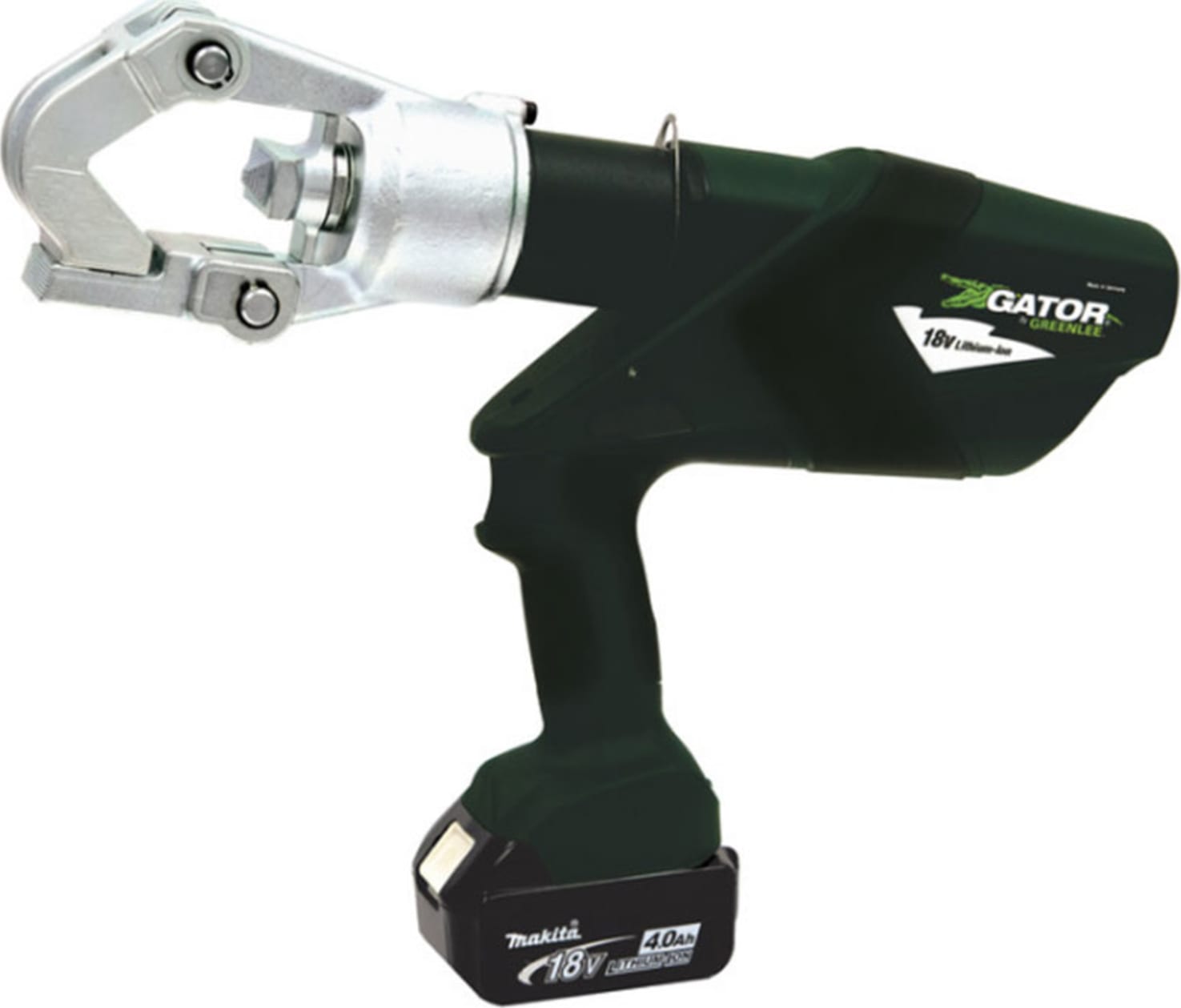

Greenlee EK12IDLX22 - 12 Ton Dieless Crimper, with Two Batteries and 230V Charger

The Greenlee EK12IDLX are hand-held, self-contained, dieless crimping tools intended to crimp aluminum and copper connectors onto electrical cable. These tools have a retraction stop feature which allows the operator to stop the retraction motion of the ram to shorten cycle time. The EK12IDLX also features Bluetooth connectivity, which is enabled through the Gator Eye App.

Several power source options

This product is available with several power source options, which are denoted by the end of the part number (11, 12, 22, 120, 230, B). The options are batteries/charger, a power cord or neither.

• Battery powered (denoted by 11, 12, 22)
  • Includes two batteries
  • Three options for charger voltage (12V, 120V, 230V)
  • Adapter for corded operation is available as an optional item - it snaps on just like a battery, but has a plug coming off of it
    • 120V = part number EAC18120
    • 230V = part number EAC18230
• Power cord (denoted by 120, 230)
  • Does not include batteries or a charger
  • Two voltage options (120V, 230V)
  • These plug into a power source with an included adapter. The adapter snaps on like a battery, but has a power cord coming off of it
• Bare (denoted by B)
  • ***DOES NOT INCLUDE ANY TYPE OF POWER SUPPLY***
  • Does not include batteries, a charger or a power cord

This chart below provides an overview of items in this series.

Intelligence

Greenlee Gator crimping and cutting tools… investing in technology to improve productivity, safety and reliability

Monitors Pressure - 32 times every second to ensure proper force is applied at the crimping tool

Polices the Crimp - Alerts operator visually and audibly if cycle is not performed correctly

Retracts Automatically - Tool signals user that crimp is complete by retracting ram automatically

Saves Time - Smart tool minimizes the retraction distance after each cycle utilizing features such as Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle, saving time and energy. Another feature is Retraction Stop Repeat (RSR) which allows the operator to partially retract the ram repeating the retraction for subsequent crimps.
